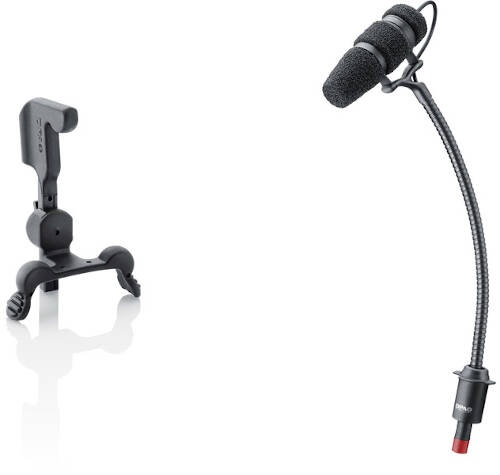

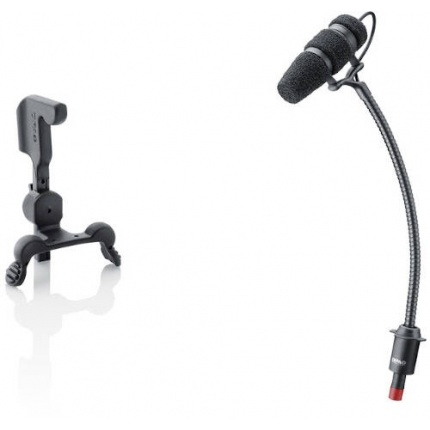

DPA Microphones CORE+ 4099 Instrument Microphone, Loud SPL, with Clip for Violin (Black) Lead time subject to local distributor stock availability

Now with CORE+ by DPA technology
The 4099 is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. 4099 CORE brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE – every musician, live sound engineer, and anyone else who takes pride in quality audio.
CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. We’ve minimized distortion. From pianissimo to forte, you will experience increased clarity and openness. Learn more about CORE by DPA.
From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly. The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.
The 4099 CORE also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Detachable cables are available in heavy-duty or lightweight versions, depending on the application – both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.
IP58 certified
All CORE by DPA technology microphones, including the 4099 CORE, is IP58 certified. This durability is achieved through a number of defense mechanisms:

- Water-repellant nano-coating of the cover and housing
- Hermetic sealing of the sensitive amplifier at the core of the mic
- Dual gold plating of the diaphragm
In the Box
DPA Microphones d:vote Core+ 4099 Instrument Microphone, Loud SPL, with Clip for Violin
DPA Microphones CM1618B00 Miniature Microdot Extension Cable (5.9', Black)
DPA Microphones DAD4099-BC Micro-Dot to XLR with Belt Clip and Low-Cut Filter for 4099 Microphone
DPA Microphones VC4099 Violin Mounting Clip for 4099 Microphone
Limited 2-Year Warranty

Specifications

Directional pattern
Supercardioid

Principle of operation
Pressure gradient

Cartridge type
Pre-polarized condenser

Frequency response
20 Hz - 20 kHz

Effective frequency range ±2 dB, at 20 cm (7.9 in)
80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC

Sensitivity, nominal, ±3 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

Distortion, THD 1%
128 dB SPL RMS, 131 dB SPL peak

Dynamic range
Typ. 108 dB

Max. SPL, THD 10%
142 dB SPL peak

Rated output impedance
From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω

Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter

Output balance principle
Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter

Common mode rejection ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter

Power supply (for full performance)
For wireless systems: Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V

Current consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter

Connector
MicroDot

Color
Black

Weight
Microphone: 17 g (0.60 oz)
Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)
Universal Instrument Microphone Clip (UC4099): 15 g (0.53 oz)
Stand Mount for Instrument Microphone (SM4099): 24 g (0.85 oz)
Cold Shoe Mount with standard 1/4" in thread (CS4099): 5 g (0.18 oz)

Microphone diameter
5.7 mm (0.22 in)

Microphone length
45 mm (1.8 in)

Cable length
1.8 m (5.9 ft)

Cable diameter
1.6 mm (0.06 in) / 2.2 mm (0.09 in)

Polarity
+V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)

Temperature range
-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)
Up to 90%

Gooseneck length
140 mm (5.5 in)

Sensitivity selection tolerance (at 1 kHz)
±1 dB

DPA Microphones CORE+ 4099 Instrument Microphone, Loud SPL, with Clip for Violin (Black)
