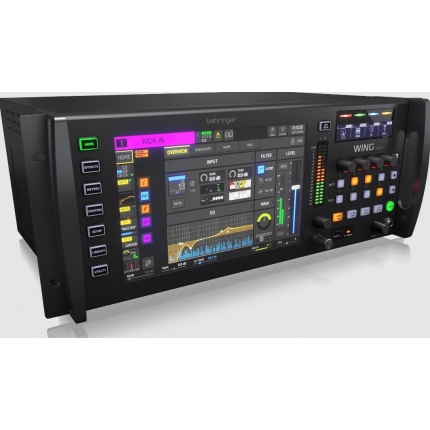

Behringer WING RACK DANTE 48-Channel Rackmountable Digital Mixer with Dante Inside

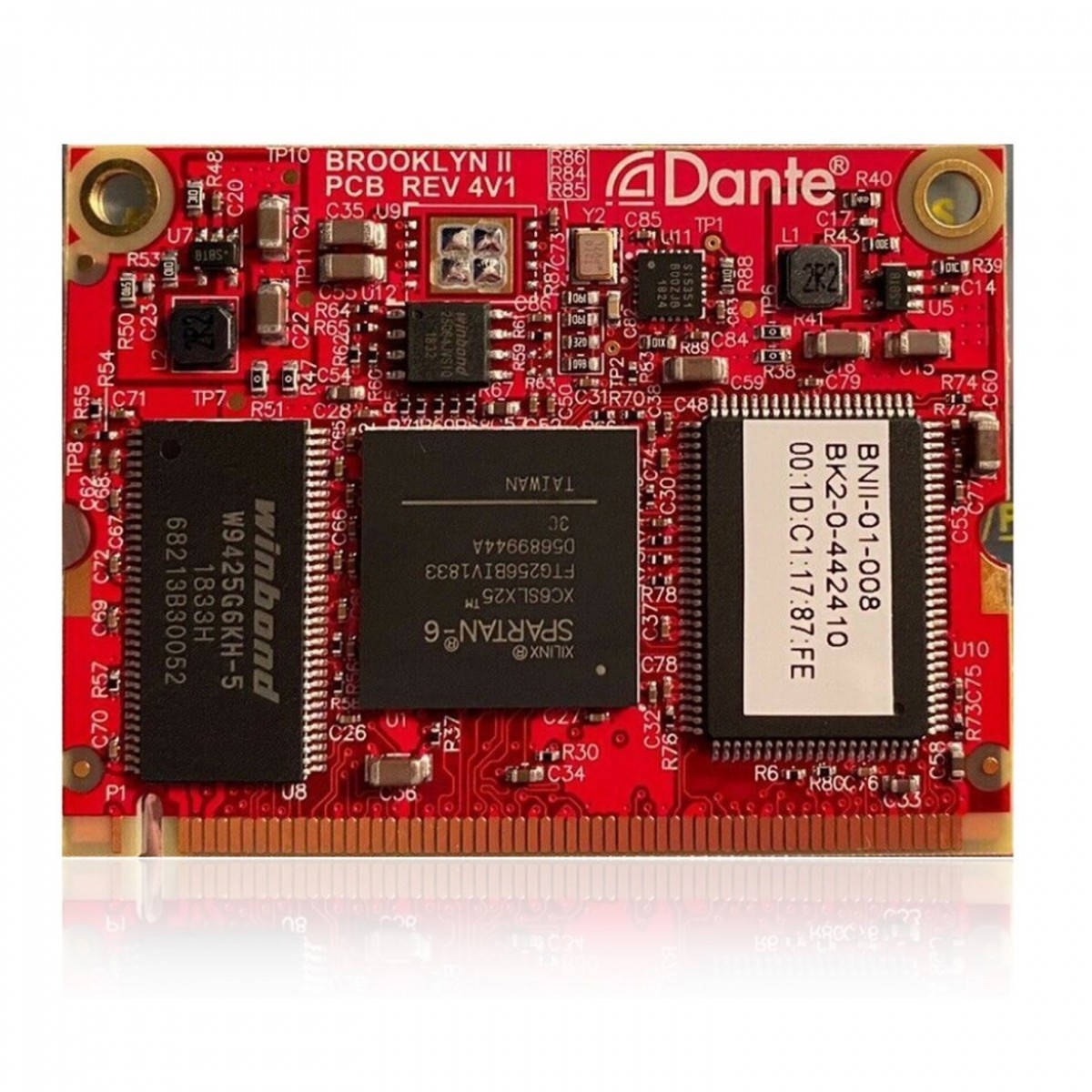

The Behringer WING RACK Dante comes with the Audinate Brooklyn II card installed internally by the official Behringer Service Centre in Singapore (Loud Technologies Asia Service Centre)

This means that you still have the use of the WING-LIVE card that is fitted to the external expansion card slot by default

Please note that only consoles originating from Loud Technologies Asia will be offered support and parts by the official Service Centre (LTAPL Service Centre).

Consoles with no serial number or do not exist within the official LTAPL database will be refused support.

Rackmount 48 Channel, 28 Bus Full Stereo Digital Mixing Engine within 24-Midas PRO Preamps,8 Midas PRO Outputs and 10" Touch Screen

• Internal AoIP-module installed to activate Ethernet ports with 64 channel audio in and out to Audinate Dante (Card may be removed to install a AoIP-WSG module for compatibility with Waves SoundGrid networks)
• 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
• Continuously adjustable front panel for comfortable mixing experience when mounted in a rack
• 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
• 10.1 inch main display with multi-touch screen and adjustable swivel
• 8 buttons and 4 encoders for standard mixing or transport functions, or with Custom Controls to make WING RACK your personal console.
• Integrated USB Audio/MIDI Interface for 48 audio channels in and out
• Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions

Features:

• Experience 48 Amazing FlexChannels Stereo or Mono — You Decide. Set all channel and buses to mono, stereo or even M/S while maintaining the full channel count (FX slots included) at no performance cost at all. Superior Sound, Seamless Setup Give musicians an immersive experience of full stereo in-ear monitoring with WING's 16 stereo buses. You can also add stereo insert effects to any channel with just a single click! Limitless Potential, WING's flexible channel configuration adapts to your needs, offering up to 48 channels in any Mono, Stereo or M/S format.

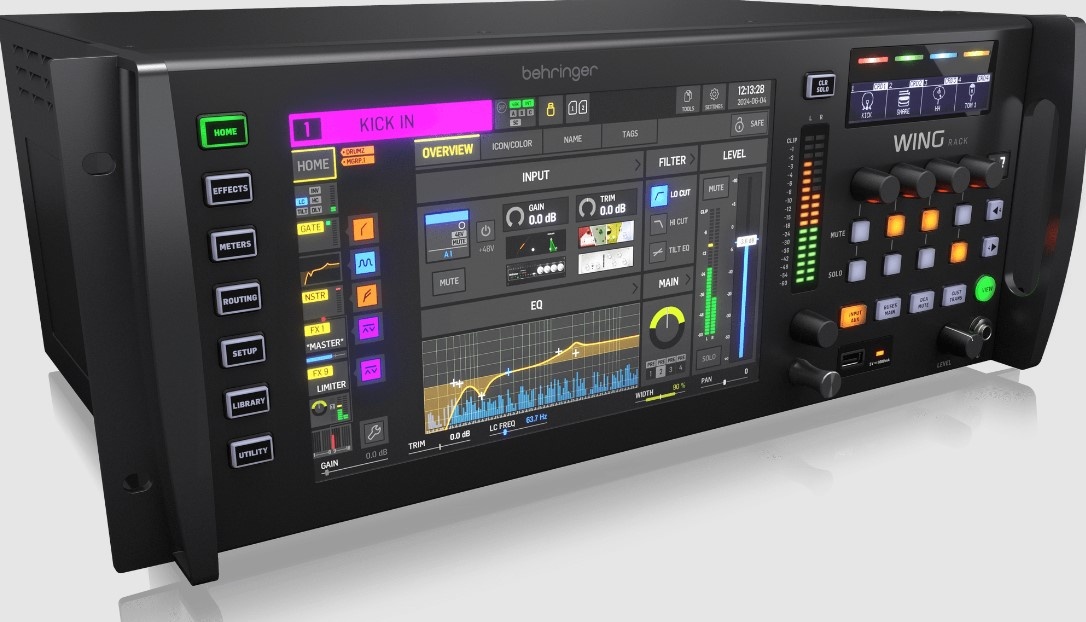

• Take Full Control - WING RACK features a control front panel on a unique swivel, allowing for fully convenient operation. Its dedicated Custom Control section, with 16 customizable layers and 3 pre-configured channel layers, is clearly labeled on a separate LCD. The large touchscreen with rotary controls for intuitive parameter adjustments offers the same innovative user interface that the full-size WING console is famous for.
• Your "Source" of Audio - WING -  stores the configuration (stereo/mono/mid-sides), gain, phantom power, along with a name, an icon, color and tags directly to every input. This combination is called a Source. You can easily edit Sources using your iPad while making the connections on stage. Channels are automatically configured from the connected Source information and are ready to go. This enables quick setups and on-the-fly adjustments, prevents errors, and makes it easier than ever to manage WING's 370+ inputs. It’s like having your own custom toolbox, where everything you need is perfectly organized and ready to use.

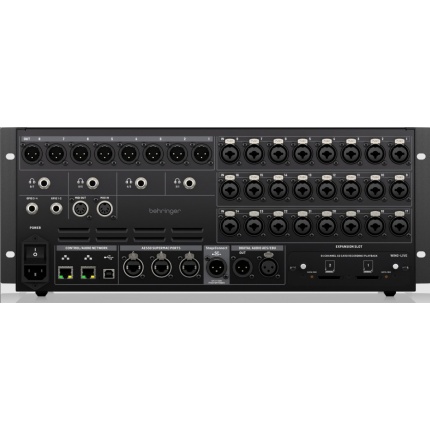

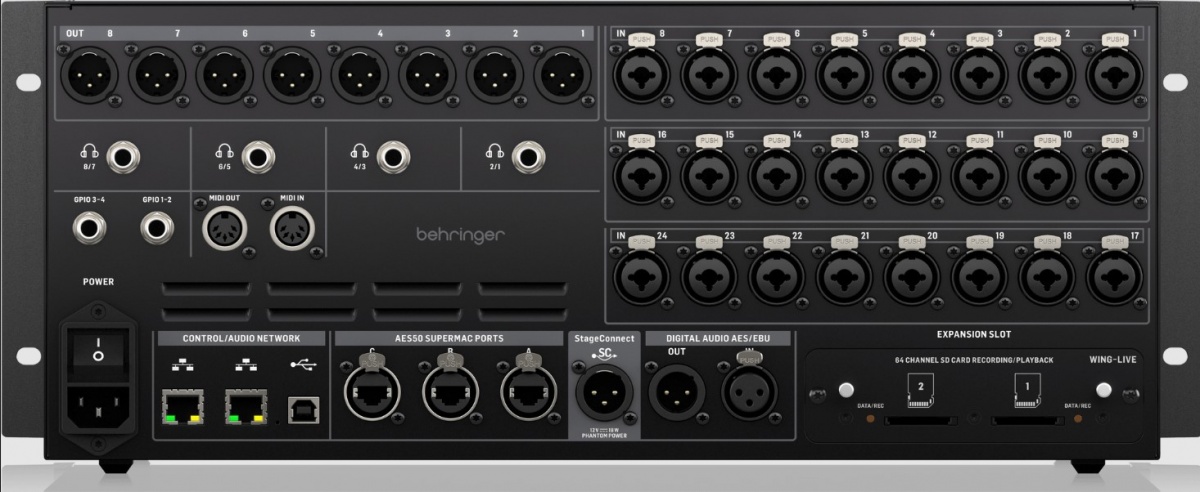

Literally Hundreds of Ins and Outs382 inputs and 368 outputs on WING RACK give you the freedom to adapt to any scenario: Switch between artists on the fly. Manage multiple play out destinations with streaming or video. Navigate complex live events with distributed or networked i/o.

Use the built-in 64-track recorder for virtual sound checks or live playback. Connect to the 48-track USB audio interface for perfect integration with your DAW

• Analog XLR/TRS Inputs - The same Midas PRO preamps as in the M32 and DL32 series provide great sound with unmatched dynamic range. The XLR/TRS combo connector allows connecting both microphone and line-level cables to the input, often removing the need for DI boxes.
• StageConnect - The Future of XLR Features 32-channel bidirectional audio transmission with sub-millisecond latency over a standard 3-pin XLR DMX cable or XLR microphone cable for short distances. The StageConnect host device provides 18W of power and control for client devices, several of which can be used in a chain.
• AES50 SuperMAC- The 3 ports provide a total of 144 input and 144 output streams from external devices like digital stageboxes, personal monitoring systems, supplemental consoles, and more. The point-to-point connections don't require any network configuration, are rock-solid, and perform at exactly 6-sample latency (0.125 milliseconds).
• Analog XLR Outputs - The same Midas PRO outputs as the industry-standard Midas M32 and DL32 series.
• MIDI- Enhanced automation, control, and synchronization across the console and externally connected device
• GPIO- Multi-functional and programmable connections for enhanced integration with installed equipment, such as an "on air" lamp in the studio. Programmable GPIO delays additionally allow triggering of sequential events, e.g., automatically powering up amplifier racks after the console is fully booted.
