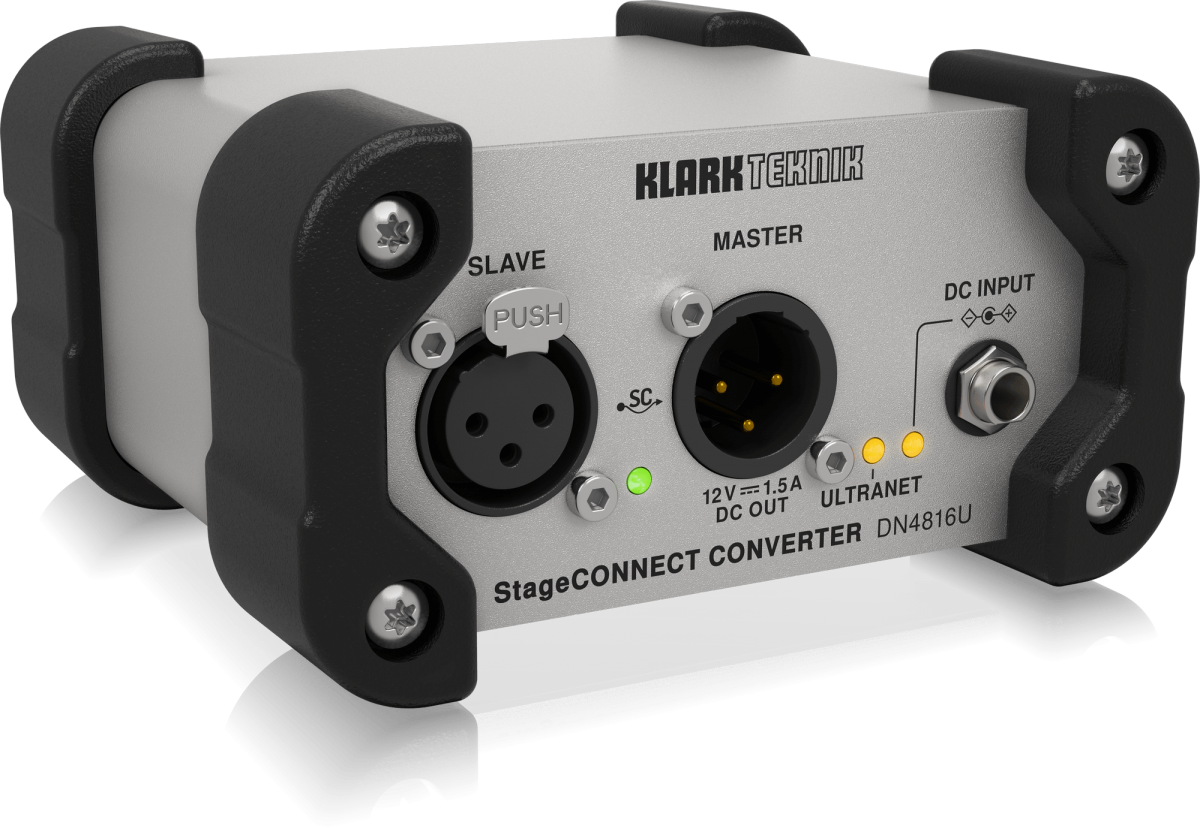

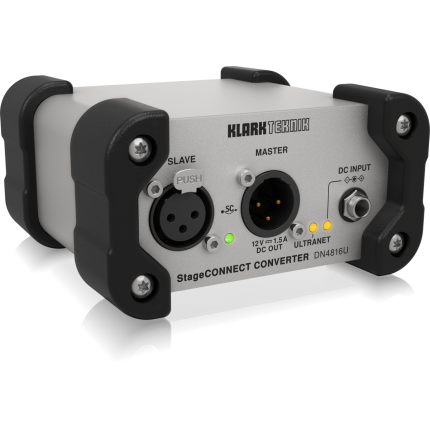

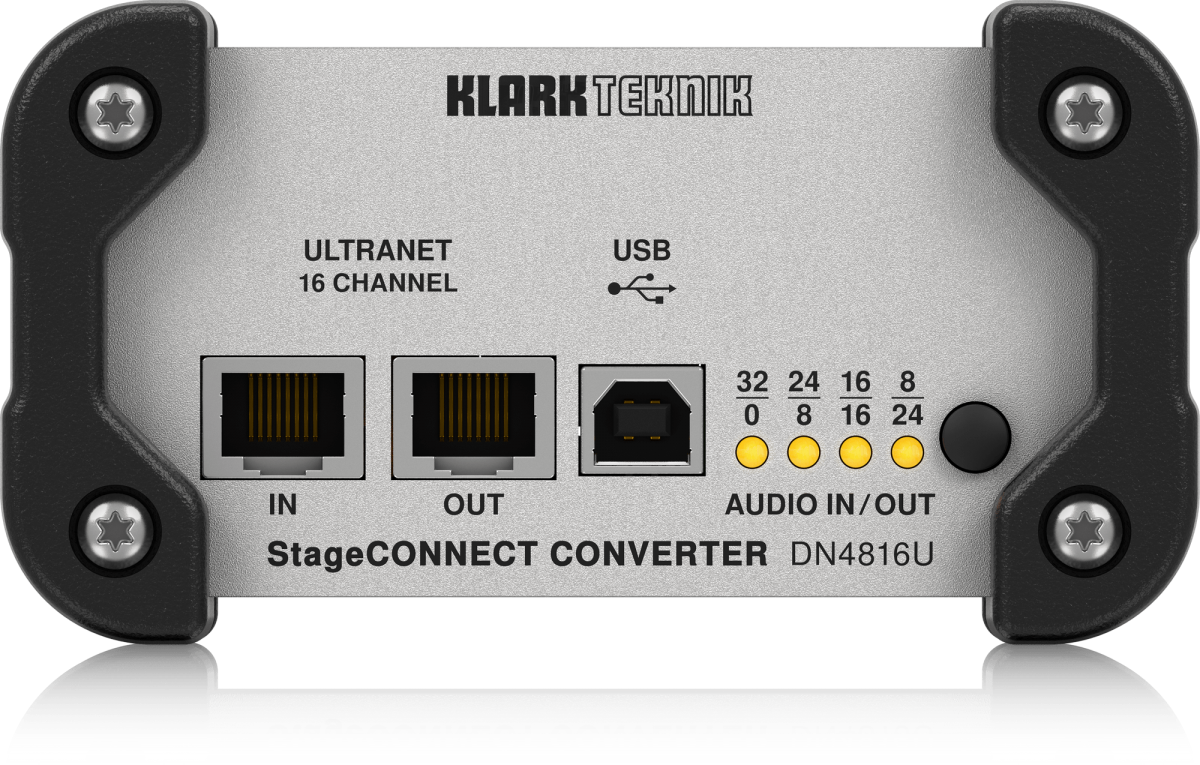

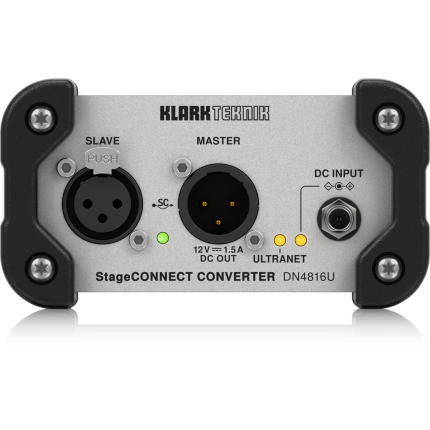

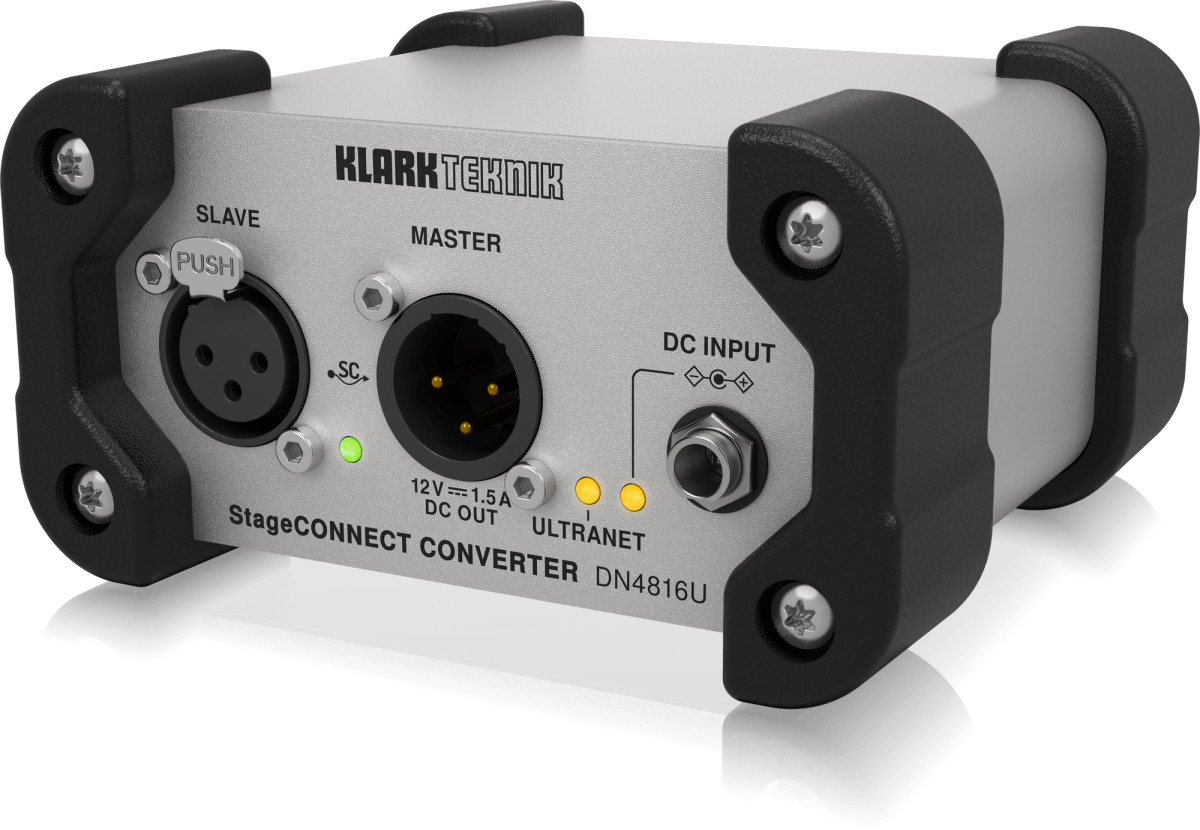

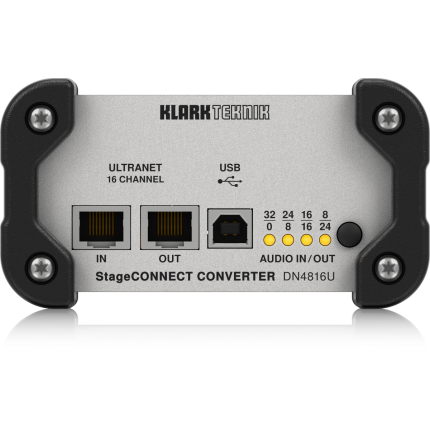

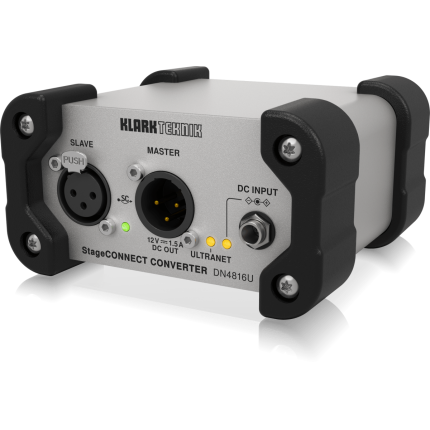

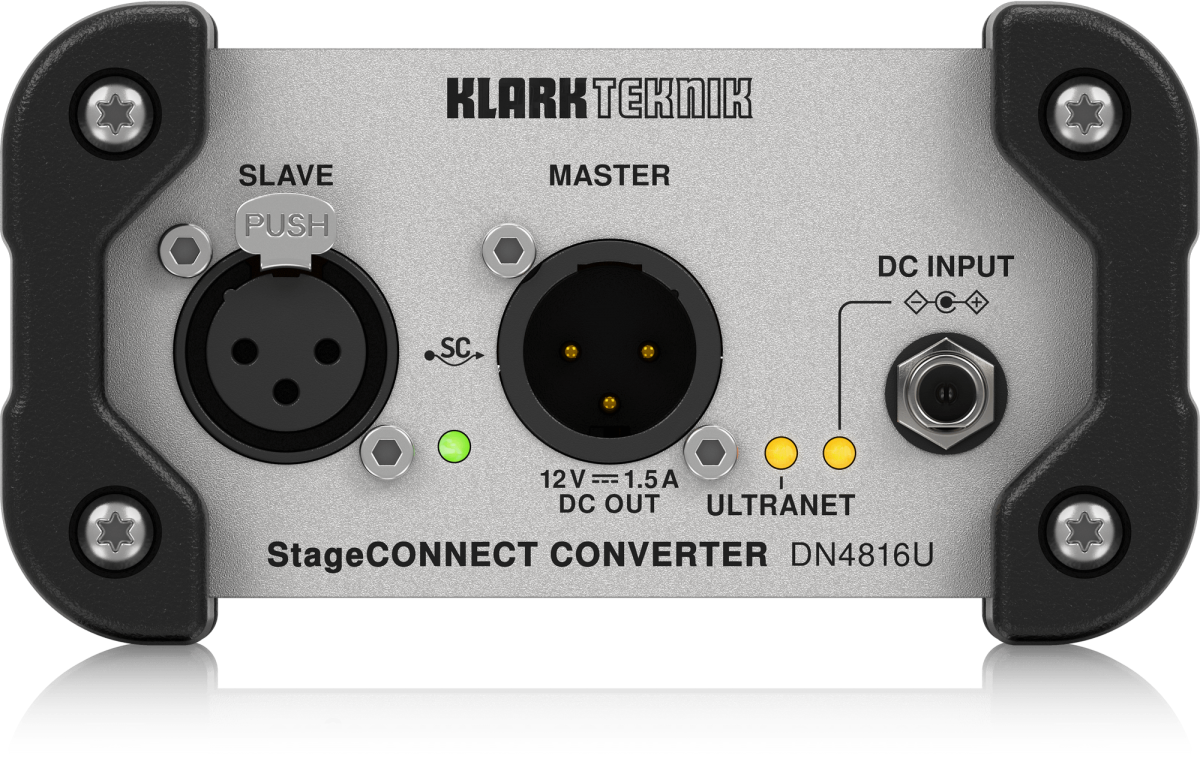

The Klark Teknik DN4816U is a universal and compact interface box for sharing 32 channels of audio between StageConnect devices, Behringer Ultranet and USB audio on your PC. There are countless applications: Send USB audio to Behringer P16 personal monitor mixers, use a Midas MR18 as 16 CH input box for Behringer WING or record 32 channels from WING directly in your DAW. SC-Devices interconnect with a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will allocate the channels for their respective connectivity automatically.
In the box
Klark Teknik DN4816U StageCONNECT Interface Bridge
AC AdapterChannels: 32
Bit Depth: 24-bit
Analog Inputs: 1 x XLR
Analog Outputs: 1 x XLR
Digital Inputs: 1 x RJ45
Digital Outputs: 1 x RJ45
Other I/O: USB-Type BDimensions
Weight
0.99kg
Box Dimensions (LxWxH)
23.6 x 18.0 x 7.1cm
