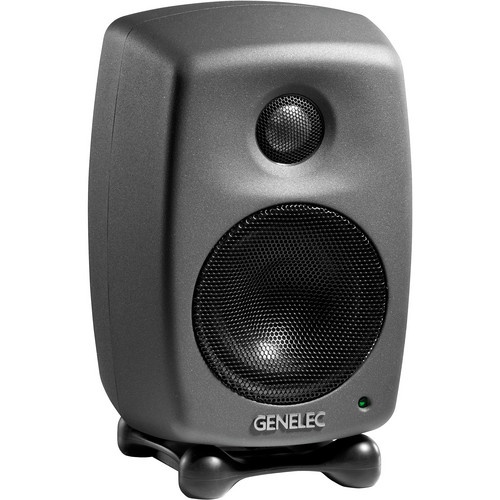

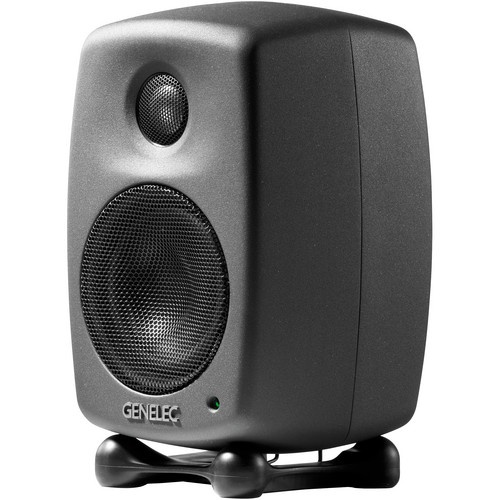

Styled in what the manufacturer has dubbed Producer Finish, the Genelec 8010A Bi-Amplified Active Monitor (Single) is designed for mixing and mastering in recording studios, broadcast facilities, and mobile work. The compact monitor utilizes independent 25W Class-D amplifiers to power a 3" woofer and a 3/4" metal dome tweeter housed in a die-cast aluminum enclosure. The monitor utilizes Genelec's Directivity Control Waveguide and Minimum Diffraction Enclosure designs to tame box reflections, flatten the frequency response from 74 Hz to 20 kHz, and provide a maximum SPL of 96 dB.
The amplifiers utilize Genelec's Intelligent Signal Sensing circuitry to conserve electricity, utilizing less than 0.5W in standby mode, 5W when idle, and 30W peak per amplifier at full output. The amplifier automatically detects the presence of an input signal and adjusts the power consumption of the monitor accordingly. A bass tilt control allows you to adjust the bass response to fit the acoustics of your listening environment. The included ISO stand helps reduce the transmission of structural vibrations into your work surface.
In the Box
Genelec 8010A Bi-Amplified Active Monitor (Single, Producer Finish)
Power CableMonitor Type & Configuration : Active 2-Way
Total Power Output : 50 W
Tweeter : 1 x 0.7" / 19 mm Metal Dome
Woofer : 1 x 3" / 7.6 cm Cone
Frequency Range : 67 Hz to 25 kHz (-6 dB)
Audio I/O : 1 x XLR 3-Pin Balanced Input (7 Kilohms)
Number of Included Monitors : Single Monitor
Enclosure : Bass-Reflex/Ported
Total Power Output :50 W
Drivers
Tweeter
1 x 0.7" / 19 mm Metal Dome
Woofer
1 x 3" / 7.6 cm Cone
Amplifiers
HF: 1 x 25 W Class-D
LF: 1 x 25 W Class-DPerformance
Frequency Range :
67 Hz to 25 kHz (-6 dB)
Frequency Response :
74 kHz to 20 kHz ± 2.5 dB
Maximum Sound Pressure Level (SPL)
105 dB (Peak)
91 dB (Continuous)
THD+N
0.08%
Analog Input Sensitivity/Gain :
-10 to 0 dB
Self-Generated Noise :
Less Than 5 dBA (at 3' / 1 m)
Signal Processing : EQ
LF Shelf: -4 dB at 200 Hz
LF Tilt: 0 to -6 dB at 100 Hz (2 dB Increments)
Filters :No
Parametric EQ : No
Crossover Frequency :3 kHz
Phase Adjustment : No
Connectivity :
Audio I/O
1 x XLR 3-Pin Balanced Input (7 Kilohms)
Network I/O : No
USB : No
Wireless :No
Power
AC Input Power : 100 to 240 VAC, 50/60 Hz
Power Consumption
30 W (Maximum)
5 W (Idle)
0.5 W (Standby)
Color : Producer Gray
Enclosure Material : Aluminum
Fan-Cooled : No
Dimensions (W x H x D) :
4.8 x 7.7 x 4.5" / 12.1 x 19.5 x 11.5 cm
Weight :
3.3 lb / 1.5 kg
