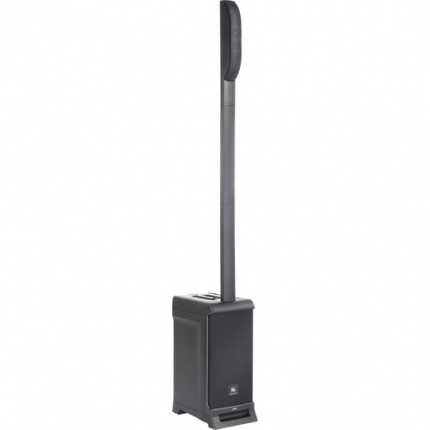

Power your next event with the JBL IRX ONE, an all-in-one column PA speaker that features a 3-channel mixer and Bluetooth 5.0 audio steaming, all packed into an easy-to-use system that can be carried with one hand. The IRX ONE is inspired by the large-scale concert line array with incredible directivity control that results in a custom-tuned, C-shaped array. The integrated 1300W amplifier powers the six 2" high-frequency drivers and the 8" woofer, which combine for a frequency response of 40 Hz to 18 kHz.

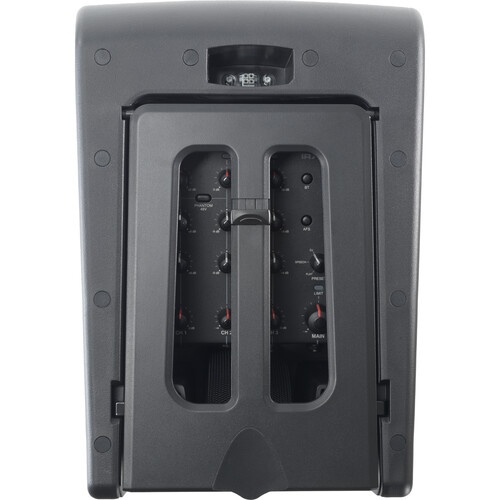

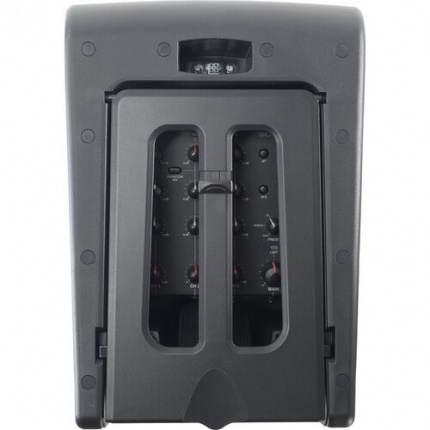

The rear panel provides two combo XLR-1/4" inputs with +48V phantom power that can handle condenser microphones. A 1/4" Hi-Z input supports instruments, such as guitar and bass, while the 1/4" output sends the mix to another IRX ONE for true stereo operation. Other notable features include dbx automatic feedback suppression (AFS), 5 EQ presets, Soundcraft audio ducking, and Bluetooth 5.0 audio streaming ensure a professional experience from start to finish.
Advanced Acoustic Technology and Seamless Coverage
IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2" high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8" woofer features a bass-reflex design to ensure low-frequency response down to 40 Hz.
Ergonomically Optimized Design

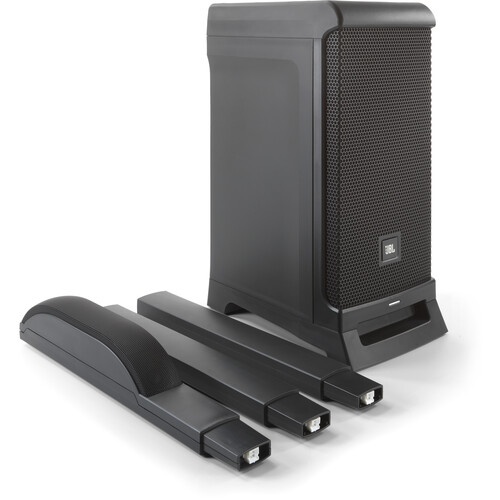

IRX ONE is easy to carry with one hand; sets up and tears down in seconds; and the ergonomically optimized carry handle minimizes wrist strain. Additionally, column spacers and the array cabinet conveniently fit into the back of the base unit.
Simple-to-Manage 3-Channel Mixer
RX ONE features a 3-channel mixer that supports the most popular connections, including ¼" and XLR inputs with included 48V phantom power and ¼" balanced mix-out. dbx automatic feedback suppression (AFS), 5 EQ presets and Soundcraft audio ducking ensure a professional experience from start to finish.
Integrated Bluetooth 5.0 Audio Streaming
Using the latest Bluetooth 5.0 audio streaming chipset, IRX ONE delivers premium audio performance and long-distance streaming.
Portable and Reliable. Built for Durability
IRX ONE is built for long-lasting durability that includes JBL's rigorous 100-hour stress test, stringent road tests, and a complete three-year warranty.Overview:
Speaker Configuration
1 x 2-Way Speaker Column with Subwoofer
Number of Input Channels
3 (3 x Mono)
Amplifier Power Rating
1 x 1300 W Peak
Audio I/O
4 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
2 x 1/4" TRS Female Balanced/Unbalanced Line/Inst Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Aux Input
1 x XLR 3-Pin Male Balanced Line/Mix Thru
Portable PA System:
Speaker Configuration
1 x 2-Way Speaker Column with Subwoofer
Number of Input Channels : 3 (3 x Mono)
Amplifier Power Rating : 1 x 1300 W Peak
Amplifier Class : Class-D
Speakers
Enclosure Type : Bass-Reflex
Signal Processing
Crossover : 260 Hz
EQ
1 x HF Shelf
1 x LF Shelf
Semi-Parametric EQ : No
Effects : Yes
Dynamic Processing :Limiter
Performance
Frequency Response
50 Hz to 18 kHz -3 dB
Frequency Range
40 Hz to 20 kHz -10 dB
Maximum SPL
118 dB
Coverage Angle
160° H x 80° V
I/O Impedance
Mic Input:
4.4 Kilohms (Balanced/Unbalanced)
1/4" Hi-Z Input:
1 Megohms (Balanced)Connectivity
Audio I/O
4 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
2 x 1/4" TRS Female Balanced/Unbalanced Line/Inst Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Aux Input
1 x XLR 3-Pin Male Balanced Line/Mix Thru
Phantom Power : +48 V
Mobile App Compatible :No
*As of October, 2023: Check with manufacturer for the most up-to-date compatibility
Network I/O: No
Wireless Connectivity : Bluetooth
