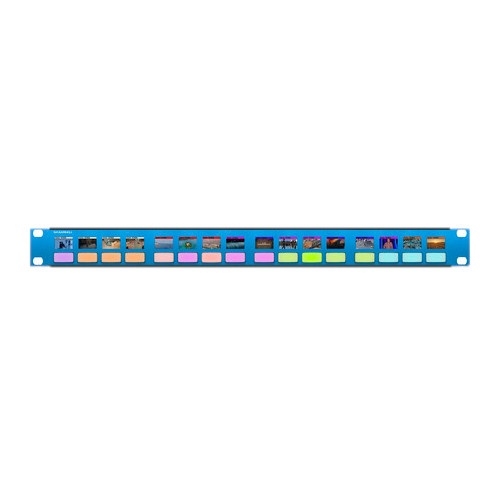

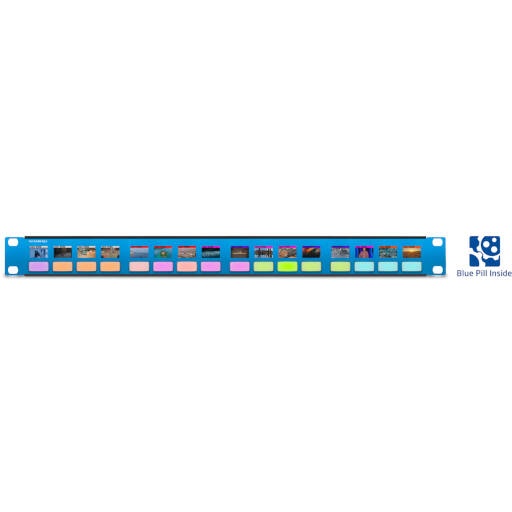

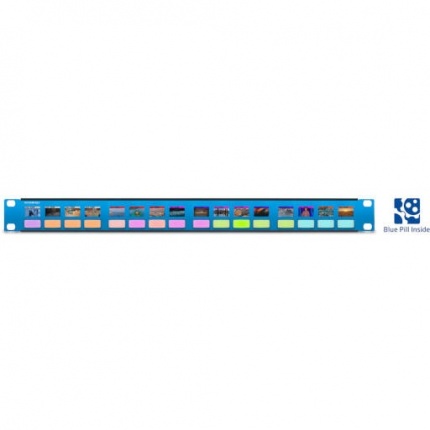

Frame Shot Uno w/Blue Pill Inside is perfect for system integration using the Raw Panel protocol. With a simple TCP connection you can send up to 160 small images to the panel per second to animate video in the button displays. It also works with existing SKAARHOJ Device Cores which allows, in example, to recall color presets from PTZ cameras.
Features
- Blue Pill Inside : This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel.
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control. can be powered with PoE
- Four-way Buttons : 16 elastomer four-way buttons with RGB backlight
- Colour Displays : 16 large 96 x 64 pixel color displays
- PoE : Ethernet with PoE (IEEE802.3at)Hardware specs
4-way Buttons: 16
Customizable Color Displays: 16 (96x64 pixel)
Product W x D x H (mm): 483 x 44 x 40
Shipping box W x D x H (mm): 500 x 110 x 150
Country of Origin: Denmark
In the box: 12V power supply
Connectivity
Programming Port: Ethernet (or Micro USB for setting manual IP)
Networking Port: RJ45 Ethernet
Power Supply: 12V
Recommended cables (not in the box): LAN Cat 6 S/FTP or better
Operation
Operating System: skaarOS (Blue Pill)
12V Power Supply
Manufacturer: PHIHONG
Model Name: PSA15R-120P
Output: 12V/1.25A
Cable Length: 1.5m
Adapter type: EU, GB, US, AU depending on shipping country
DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive
