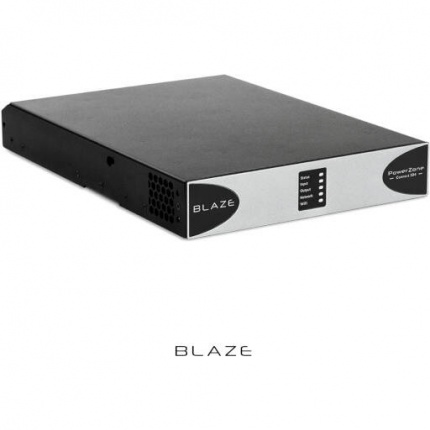

The PowerZone Connect 504 is a compact DSP amplifier in a half rack, 1U format. It’s network-connected, giving wired or wireless access to the PowerZone Control web app’s system setup and audio configuration menu.
Features
• Ultra-compact ½-rack form factor
• Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
• Hybrid power distribution in both Lo-Z and Hi-Z
• Powered by Pascal UMAC™ Class-D technology
• Flexible power sharing across output channels
• S/PDIF input/output
• Configurable GPIO
• ErP and Energy Star compliant
• UL listed audio equipment
• URECTM universal power supply with PFC
The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make system installers’ lives easier, offering unparalleled reliability and efficiency, along with exceptional system configuration. The ultra-compact form factor, makes them an ideal choice for audio/voice installation projects with limited space constraints that demand high-output performance.
The 1U family powers both conventional low-impedance (4Ω to 16Ω) loudspeakers and constant voltage (70V/100V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

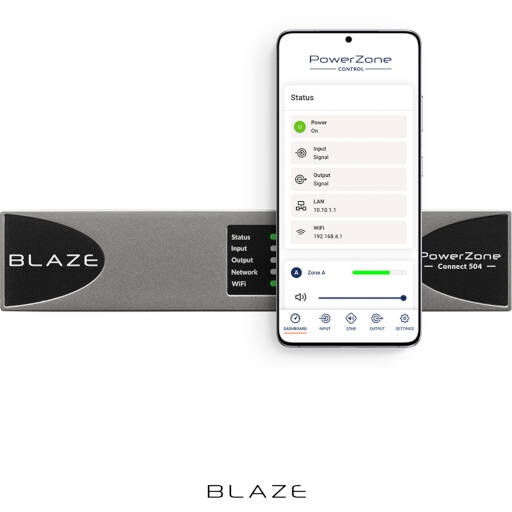

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
Our web app, PowerZone™ Control, is the most versatile DSP controller available for configuring audio/voice systems in locations requiring multi-zone audio set up with multiple mic talk overs. PowerZone™ Control facilitates effortless customization of even the most detailed audio/voice systems and adept management of multiple DSP configurations and tuning features, such as multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker management and presets, delay, Wall-S1 controller configuration, Sine generator, and much more. PowerZone™ Control caters to the demanding requirements of advanced system installs in locations such as retail stores, restaurants, hotels, educational facilities, theatres, bars, cafes, fitness locations, vast hospitality spaces, and spaces with multiple meeting/conference rooms. PowerZone™ Control is embedded in our PowerZone™ Connect full Matrix DSP amplifiers, and can be accessed from any device and browser via the PowerZone™ Connect built-in Wi-Fi or RJ45 network port.Application:
- Bars and Cafes
- Restaurants
- Retail Stores
- Fitness Centers
- Hotels and Education Sites
- Corporate / Enterprise
- House of WorshipChannels: 4 x lo-Z / 2 x Hi-Z
Output Power @ 4Ω: 4 x 125 W
Output Power @ 8Ω: 4 x 125 W
Output Power @ 70V: 2 x 250 W
Output Power @ 100V: 2 x 250 W
Powersharing (up to) across all channels: 2 x 250 W
Power Consumption: 150 W
Dimensions: 44 x 220 x 319 mm (1.7 x 8.7 x 12.6 in)
Weight: 2.8kg (6.2 lbs)
Total System Power: 500 W
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio: > 106dB (A-weighted, 20Hz-20kHz, 8Ω load)
THD+N (typical): 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
Frequency Response: 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power)
Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature: 0-40°C
Operating Voltage/ Frequency.: Universal Mains, 100V-240V, 50Hz-60Hz
Standby Consumption: 0.5W
Accessories: 2x Rack ears 1x ½ rack plate extension 2x ½ rack mounting 2x Rear supports
Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz
Heat Dissipatation:
- Load [Ohm]: 4
- Pin [W]: 107
- Pout [W], 1/8th Full Power: 62.5
- Efficiency []: 58.6
- Thermal Loss [W]: 44.5
- Thermal Loss [BTU/h]: 152
