The PowerZone series of install power amplifiers are designed to provide versatile and reliable high-performance audio power.
Each output channel can be independently configured to drive either Lo-Z or Hi-Z loads – making it so much more flexible and versatile than other full rack products. This means a system can be easily configured with any power output, and drive both Lo-Z and Hi-Z loudspeakers – from just one clever amplifier.Total available power is automatically shared across channel pairs – thanks to our power sharing technology. The ultra-compact PowerZone can be installed in locations where other products cannot – and has desk and wall mount brackets as well as full rack supports.PowerZone is a robust and energy-efficient amplifier, that offers quick set-up and custom configuration options.

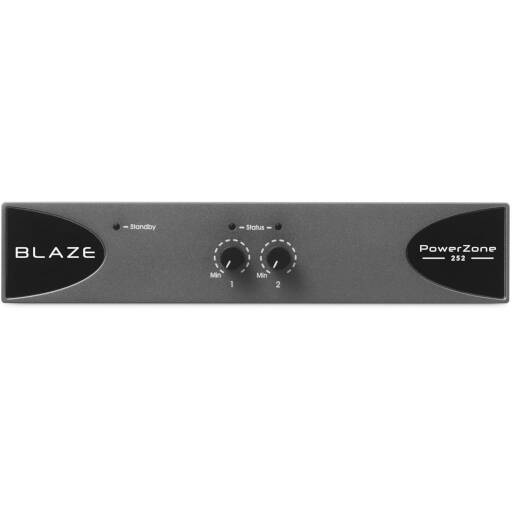

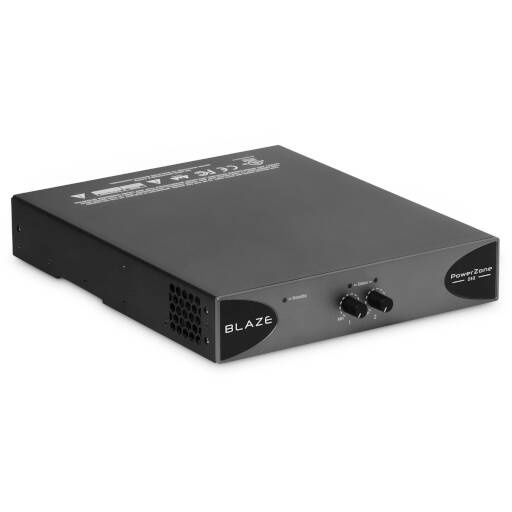

The PowerZone 252 is a 2 x 125 Watt power amplifier in a half width, 1U format. It drives both low impedance (4Ω to 16Ω) and constant voltage (70V/100V) loudspeaker loads.
All channels deliver low & high impedance loads – meaning one amplifier can replace two, and saves you costs and installation time
Total power is automatically shared across the output channels – use one PowerZone™ amp to utilize the power where you need it
Ultra-compact form factor – means the ½ rack PowerZones are so small and neat they can be installed in spaces where other brands cannot
Consolidate products and brands – save the hassle of sourcing multiple amplifiers when PowerZone™ can be used on many different install sites

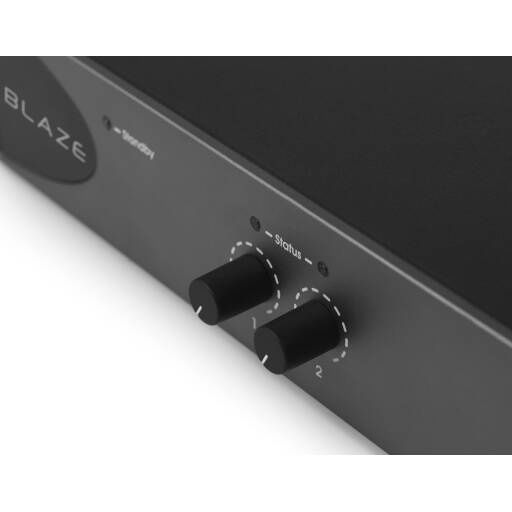

Easy to configure DIP Switches - allow you to set up on-site as you need and has front panel control lock to stop unwanted changes to your setup

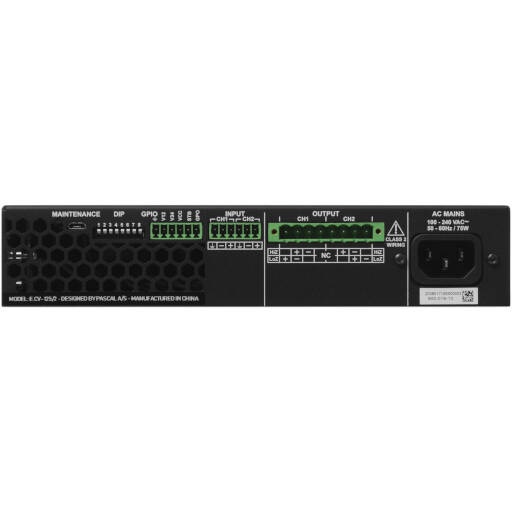

GPIO interface – enables adding of any standard remote control (potentiometer) to the system
Class leading energy efficiency – means a day-to-day energy saving and long-term low cost of ownership
Pascal’s UMAC™ Class-D amplifier technology – with market proven, ultra-reliable U-PRO amp modules
PowerZone™ quality and reliability are backed up with a 5-year warranty
Applications:
- Bars, Cafes and Restaurants
- Retail Stores
- Hotel and Education Sites
- Corporate/Enterprise
- House of WorshipChannels: 2 x lo-Z / 2 x Hi-Z
Output Power @ 4Ω: 2 x 125 W
Output Power @ 8Ω: 2 x 125 W
Output Power @ 70V: 2 x 125 W
Output Power @ 100V: 2 x 125 W
Powersharing (up to) across all channels: 1 x 250 W
Power Consumption: 75 W
Dimensions: 44.5 x 220 x 262 mm (1.75 x 8.66 x 10.31 in)
Weight: 1.9kg (4.2 lbs)
Total System Power: 250W
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio: > 100 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical): 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response: 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Protection Circuits: Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operating Voltage/ Frequency.: Universal Mains, 100-240V, 50-60Hz
Standby Consumption: 0.5 W (Energy Star & ErP 1275/2008/EC compliant)
Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz
