Buy commercial sound system bundles online from Singapore's Premier AVL Superstore. Great for cafes, restaurants, offices, homes or anywhere background music is desired.
We have curated a fuss-free bundle for you, combining the Yamaha VXS8 8" surface mount speakers with the MA2120 mixer amplifier. We even supply the hookup diagram when you purchase the bundle from us. All you need is to have the cables run and hook up the speakers according to the simple diagram and you will be in business. We even pre-tap the speakers to the correct wattage for you.
This minimal-fuss bundle is designed to playback music without meddling with many complicated controls.

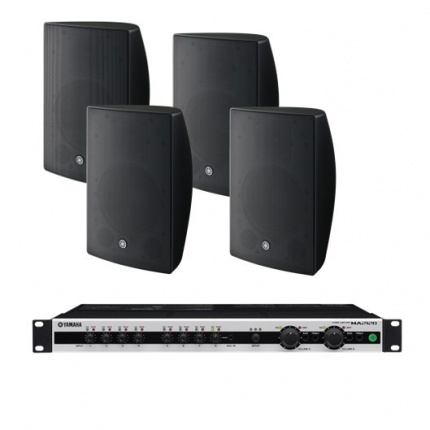

Package consists of
4 x Yamaha VXS8 Surface Mount Speaker (Black)
1 x Yamaha MA2120 Mixer Amplifier
1 x 3.5mm minijack to RCA cable for connection to laptop or music playback
1 x Professional speaker cable AWG16, grey jacket, tinned x 50m roll
Alternatively, if you want a bundle that is listed on another competitor's site, send us the link via WhatsApp or send us a message with the details and we will make you a competitive offer.Bose equipment 1-to-1 replacement warranty applies subject to assessment. (Replacement may be a refurbished unit, or brand new unit depending on availability and assessment) Carry-in to the service centre
All items come with 1-Year warranty
Yamaha VXS8 Technical Summary
Speaker Type
2-way, Bass-reflexFrequency Range (-10 dB)
51Hz - 20kHzNominal Dispersion
100° H x 100° VLong-Term Power Handling
90W (180 W peak)Transformer taps (100V/70V Line)
60W, 30W, 15W, 7.5WSensitivity (SPL / 1 W @ 1 m)
91 dB SPLMaximum SPL @ 1 m
117 dB SPLNominal Impedance
8 Ω (transformer bypassed)---
Yamaha MA2120 Mixer Amplifier Technical Summary
General specifications
Output power 1kHz (THD+N=1%: 3Ω) 100W x 2 (20ms Burst)
1kHz (THD+N=1%: 4Ω)120W x 2 (20ms Burst)
1kHz (THD+N=1%: 8Ω)100W x 2 (20ms Burst)
High impedance: 100V line120W x 2 or 200W x 1
High impedance: 70V line120W x 2 or 200W x 1
Total harmonic distortion: ≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W)
Frequency response: 0dB, -2.5dB, +1.0dB (Line in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W)
Crosstalk: ≤ -70dB (MIC/LINE input to other MIC/LINE input)
Line Input: Input 7-8: Stereo RCA pin (unbalanced) x 2, Input 8: 3.5mm Stereo mini phone (unbalanced), Input 5-6: RCA pin (MONO SUM, unbalanced) x 4
Speaker OutputBarrier strip x 2 pairs
Line Out: LINE OUT: MONO RCA pin x2 (unbalanced)
Control ports: RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin)Input Level: Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip) / Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip)
Output Level: -10dBV (LINE OUT, Nominal)
Processors: Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz)
Protection circuit:
Load protection - Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically)
Amplifier protection - Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically)
Power supply protection - Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* →Power supply shutdown (*Restored automatically)Amplifier class: Class D
Cooling: Conventional cooling, bottom to up airflow
Power requirements: 100V, 120V, 230V - 240V, 50Hz / 60Hz
Power consumption: 60W (1/8 max power, 4Ω, AC100V, pink noise at all channels)
Accessories: AC power cable, 3.5mm Euroblock plug (6-pin) x 3, Euroblock pulg (3-pin) x 1, Owner's manual, Setup guid
