Louder, Lighter, Legendary
Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.
Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you’ve come to expect from the DXR Series… only MORE.

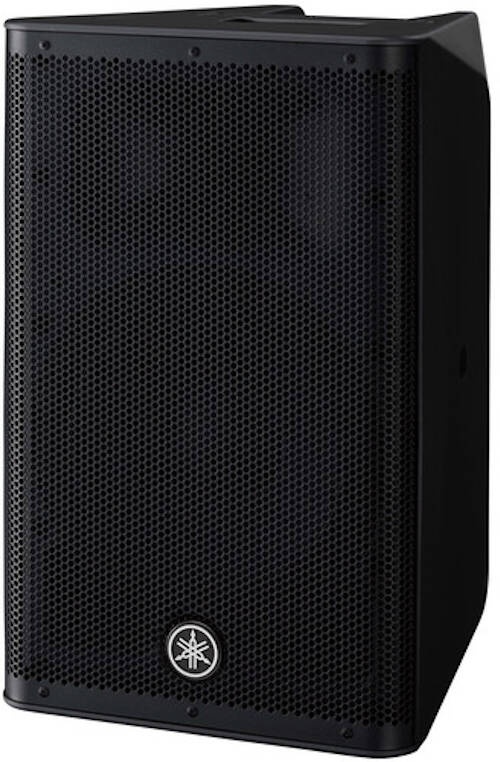

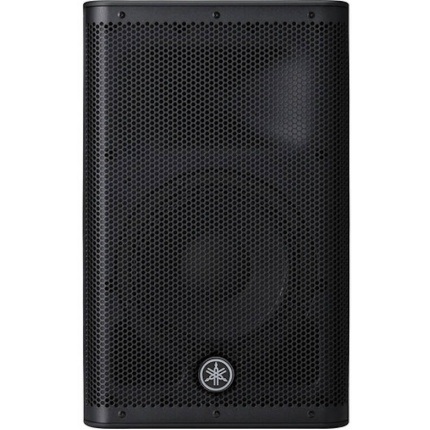

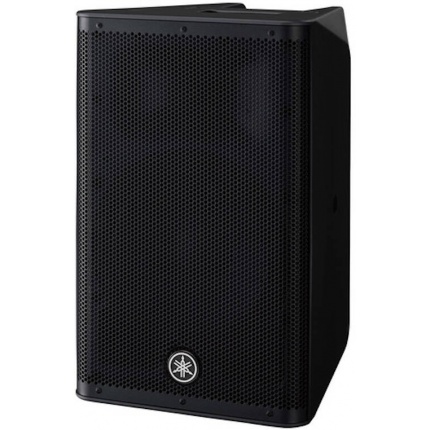

Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.
In the box:
Yamaha DXR10mkII 10" 1100W 2-Way Active Loudspeaker
Power CordPA Speaker
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity
1100 W Peak
700 W RMS
Amplifier Power Rating LF:
950 W Peak
600 W RMS
HF:
150 W Peak
100 W RMS
Amplifier Class Class-D
Drivers
HF Driver 1 x 1.75" / 44.45 mm Compression Driver with 1" / 25 mm Throat
LF Driver 1 x 10" / 25.4 cm Woofer
LF Voice Coil 2" / 5.08 cm
Magnet HF:
Neodymium
LF:
Ferrite
Performance
Frequency Range 56 Hz to 20 kHz -10 dB
Maximum SPL 132 dB SPL
Coverage Angle 90° H x 60° V (Horn)
Input Sensitivity Line Input:
+1 dBu (Max)
Mic Input:
-32 dBu (Max)
Line Input:
-13 dBu (Max)
Mic Input:
-22 dBu (Center)
Line Input:
+11 dBu (Center)
Line Input:
-3 dBu (Center)
Max Input Level Line Input:
+24 dBu (Balanced)
Mic Input:
+20 dBu (Balanced)
Line Input:
+16 dBu (Unbalanced)
I/O Impedance XLR Mic Input:
12 Kilohms (Balanced, Mono)
XLR Line Input:
8 Kilohms (Balanced, Mono)
1/4" TRS Line Input:
40 Kilohms (Unbalanced, Stereo)
20 Kilohms (Unbalanced, Mono)
Protections AC Coupling, Crossover Overload, DC Fault

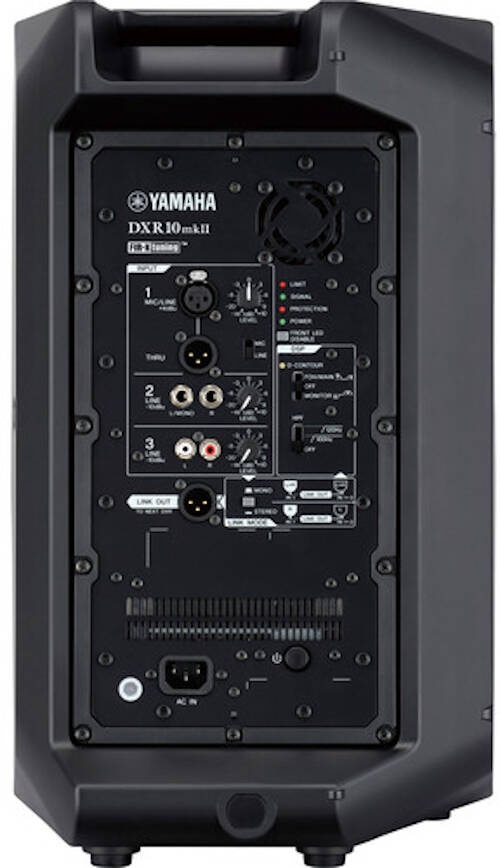

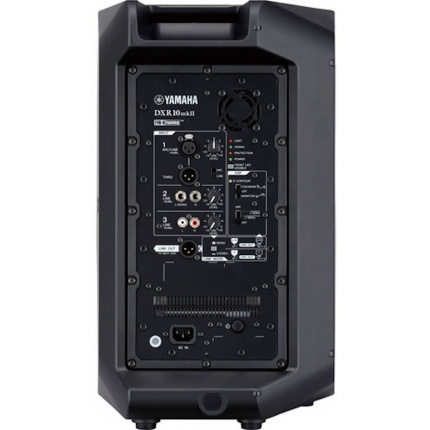

Connectivity
Audio I/O
1 x XLR 3-Pin Input
2 x 1/4" TS Input
2 x RCA Input
1 x XLR 3-Pin Thru
1 x XLR 3-Pin Link Output
Signal Processing
Crossover 2.3 kHz
Filters 2 x High-Pass:
100 Hz, 24 dB/Octave
120 Hz, 24 dB/Octave
Dynamic Processing Compression, Multiband Limiter
Digital Signal Processing 48-Bit DSP: FIR Filter, Venue Settings
Maximum Sampling Rate 48 kHz / 24-Bit
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC Input
Power Consumption 90 W
Physical
Mounting
2 x M8 (Top)
1 x M8 (Rear)
1 x 1.38" / 35 mm Pole Socket (Dual Angle)
Monitor Angle 50°
Handles 1 x Top
Cooling Fan (Variable Speed)
Construction Material ABS
Dimensions 12 x 19.8 x 12.2" / 305 x 502 x 310 mm
Weight 30.6 lb / 13.9 kg
