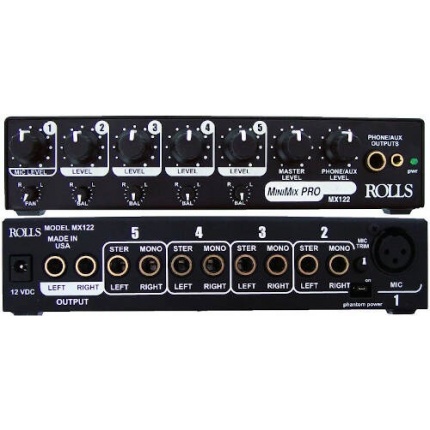

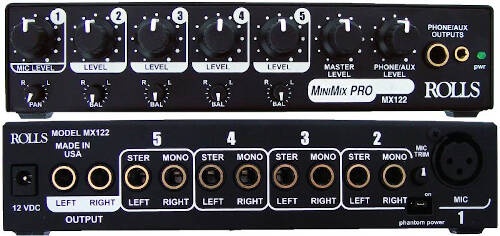

The MX122 is a five channel audio mixer which combines a single microphone signal with four stereo instrument or line level signals. The XLR Microphone input has a trim control and switchable phantom power available. The unit is ideal for musicians needing to mix stereo keyboards and sound modules with a single microphone.
In the Box:
Rolls MX122 x1
Input Impedance:
Line: 10 K Ohms unbalanced
Mic: 10 K Ohms balanced
Output Impedance: 50 Ohms balanced
Max Input Level: +24 dBV line, -8 dBV microphone
Phase Shift: 10 deg. 20 Hz - 20 kHz
Connectors: 8: 1/4" TS Inputs, 1: XLR Mic Input, 3: 1/4" TRS, 1: 1/8" (3.5mm) Outputs
Max Gain: 26 dB Line, 26 dB Aux, 80 dB Mic
Mic CMRR: 95 dB
S/N Ratio: >90 dB
THD: .004%
IMD (SMPTE): .004%
Self Noise: - 82 dB
Size: 8.4" x 1.7" x 5", (21.3 x 4.3 x 13 cm)
Weight: 2.5 lbs (1.14 kg)
Current drain 40ma nominal one mic 15vdc
