Soundcraft Mini Stagebox 32i and 16i combine high-quality components with a streamlined design, making it easy to add multiple channels of remote-controlled I/O to your Si-series mixing console. The Studer-designed mic preamps provide exceptional sound quality, while the compact form factor offers easy transport and fast configuration. Ideal for live engineers, houses of worship, bands, club owners and corporate installations, Soundcraft Mini Stageboxes allow you to replace heavy, expensive analog snakes with a single RJ45 Cat5 style Ethernet cable.
HIGH-QUALITY COMPONENTS
Soundcraft Mini Stageboxes offer remarkable value while maintaining the industry-leading performance that Soundcraft live solutions are known for. Renowned Studer-designed mic preamps deliver warm, rich sound for live performances and recording events.
COMPREHENSIVE I/O
Soundcraft Mini Stageboxes provide multi-channel MADI I/O via standard Cat5 cabling, eliminating the need to run expensive and heavy analog snakes from the stage to front-of-house mixing positions. Dedicated XLR mic pre inputs allow 32 or 16 simultaneous channels of external analog input. Mini Stagebox 32i offers twelve analog outputs, while Mini Stagebox 16i offers eight analog outputs for easy connection to house and stage monitors and broadcast or streaming feeds.
STREAMLINED DESIGN
A streamlined design provides essential connections and features, including MADI over RJ45 connectors built right onto the chassis. No local hardware configuration or installing option cards are required—simply plug in, power on, select inputs and control remotely using a Soundcraft Si console.
FULL INTEGRATION WITH Si SERIES MIXERS
Mini Stageboxes pair with Soundcraft Si Series mixers to provide remote controlled expanded I/O and intuitive operation during complex mixing scenarios. Si Impact allows owners to add a stagebox for additional inputs, while simultaneously using the existing console inputs. By adding a second MADI option card to the console, customers can add a second stagebox and select which inputs to assign to the 80 mixing channels.
In the Box:

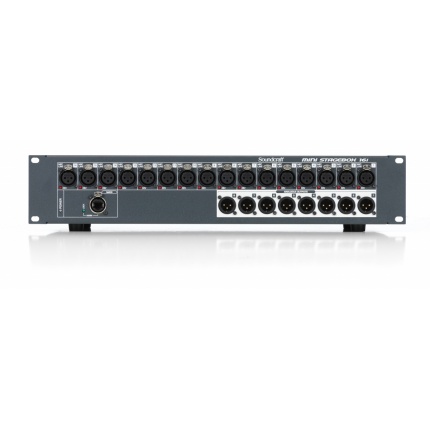

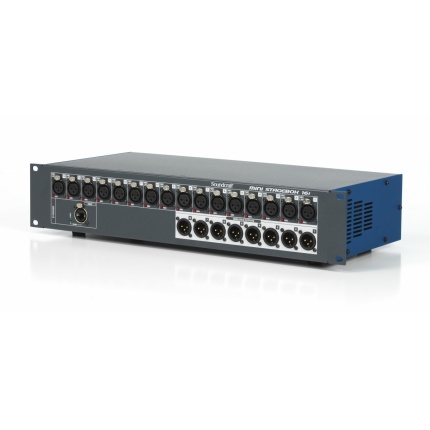

Soundcraft Mini Stagebox 16i for Si Series Consoles
IEC Power Cord
Limited 1-Year Warranty on Parts and Labor
Digital Connectivity 1 x MADI over RJ45/Cat5
Analog Inputs and Outputs Remote-controlled mic preamps and A/D converters: 16 XLR
Analog Line-Level Outputs: 8 x XLR
Maximum Distance 328.1' / 100.0 m
Frequency Response Mic/Line Input to Any Output: +0/-1 dB, 20 Hz to 20 kHz
THD Mic Sensitivity -30 dBu: 0.01% @ 1 kHz
Residual Noise -85 dBu
Mic Input Noise (E.I.N.) -125 dBu (150 Ω source)
CMRR Mix Noise, Masters at Unity: -86 dBu
1 Input to Mix at Unity Gain: -84 dBu
CMRR Mic @1 kHz (Max Gain): -86 dBu
Crosstalk -80 dB @ 1 kHz
Input Gain -5 to 58 dB integrated pad design (1 dB steps)
Maximum Input Level +24 dBu
Maximum Output Level +22 dBu
Sample Rate 48 kHz
Converter 24-bit
Latency 1.5 ms
Clock Accuracy ±25 ppm
Power Consumption 33 W
Operating Range 90 to 264 VAC, 47 to 63 Hz
Operating Temperature Range 14 to 122°F (-10 to +50°C)
Relative Humidity 0 to 90%
Storage Temperature Range 14 to 122°F (-10 to +50°C)
