RECORD CLEANER, CLOSER AND CLEARER THAN EVER BEFORE.
Advanced X/Y microphones, incredibly natural-sounding preamps, and built-in cutting-edge effects make the H4n Pro the ultimate portable 4 track recorder for musicians.THE ULTIMATE HANDHELD RECORDING STUDIO
With onboard X/Y microphones, two combo input jacks, overdubbing, effects, and more, the H4n Pro is packed with features that allows musicians to create songs from start to finish.TAKE YOUR LIVE SHOW HOME
The H4n Pro is capable of recording the loudest and heaviest performances, up to 140 dB SPL without distortion. Take a line-level* stereo feed from the mixing console and capture room ambience with the X/Y microphones.* +4dBu line-level is not supported.
PROFESSIONAL GRADE PREAMPS
The H4n Pro features high performance, low-noise mic preamps with recording resolutions up to 24-bit/96 kHz. The improved noise floor (-120 dBu EIN) captures audio at lower volumes with less noise and fewer artifacts.USB AUDIO INTERFACE
Functioning as a 2-input/2-output USB audio interface for PC or Mac, the H4n Pro enables you to record directly to your computer.NEVER MISS A TAKE
Pre-Record
Capture two seconds* of audio before you hit RECORD with the Pre-Record function and never miss the start of a great take.*One second when recording at 96 kHz/sec or working 4CH mode.
Auto-Record
The Auto-Record and Auto-Stop functions allow the H4n Pro to automatically start and stop recording according to your designated levels.Stereo Mode
Stereo Mode can be used with the built-in X/Y microphones or external mics, and is convenient for recording live performances, acoustic instruments, and more.4-Channel Mode
4-Channel Mode records with the built-in X/Y mics and two external inputs to capture live room sound and a stereo board feed at the same time.MTR Mode
Multi-Track Mode turns your device into a four-track studio, with built-in effects, overdub functions, and the ability to work with previously recorded sound files.INPUTS AND OUTPUTS

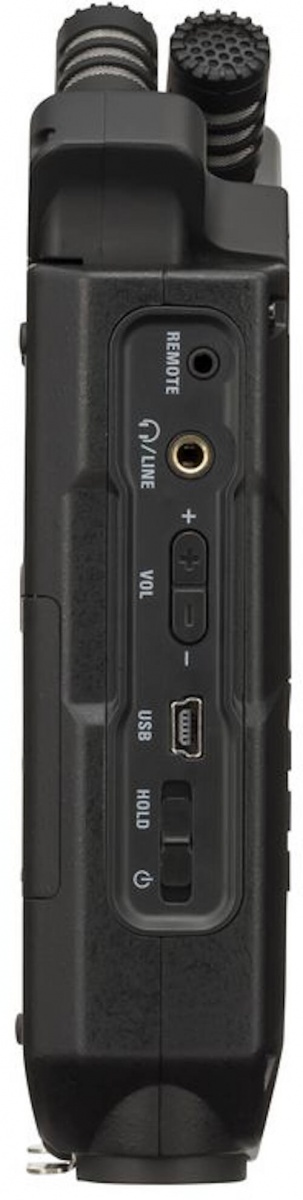

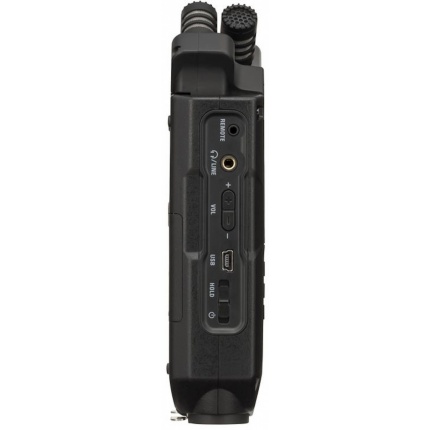

INPUTS | The H4n Pro offers two locking XLR/TRS combo jacks, each with switchable phantom power. Additionally there is a mic/line input via the stereo 1/8” input jack.OUTPUTS | Monitor your performance with headphones or connect to external devices using the stereo 1/8” line output with dedicated volume control.
MUSIC PRODUCTION SOFTWARE
Record, edit, mix and master your music with free download licenses for Steinberg’s Cubase LE music production software and WaveLab LE audio editing software.STUDIO-GRADE EFFECTS
Choose from a variety of effects, including EQ, compression, reverb, delay, amp and cab emulators and more. Practice with an onboard metronome, tuner and looper.RECORDING TIME AND FILE FORMATS
The H4n Pro can capture audio in both MP3 and WAV file formats. WAV files recorded with the H4n Pro comply with BWF (Broadcast Wave Format) and include marks and creation dates. It allows for easy syncing and file organization for both musicians and filmmakers.In the Box:

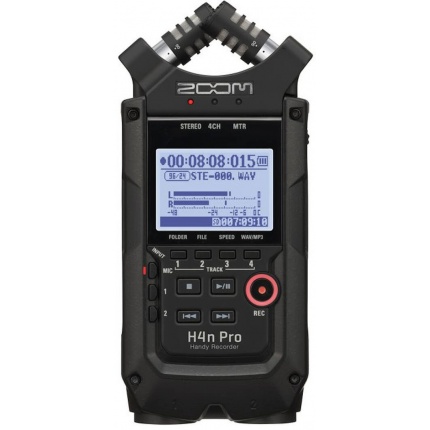

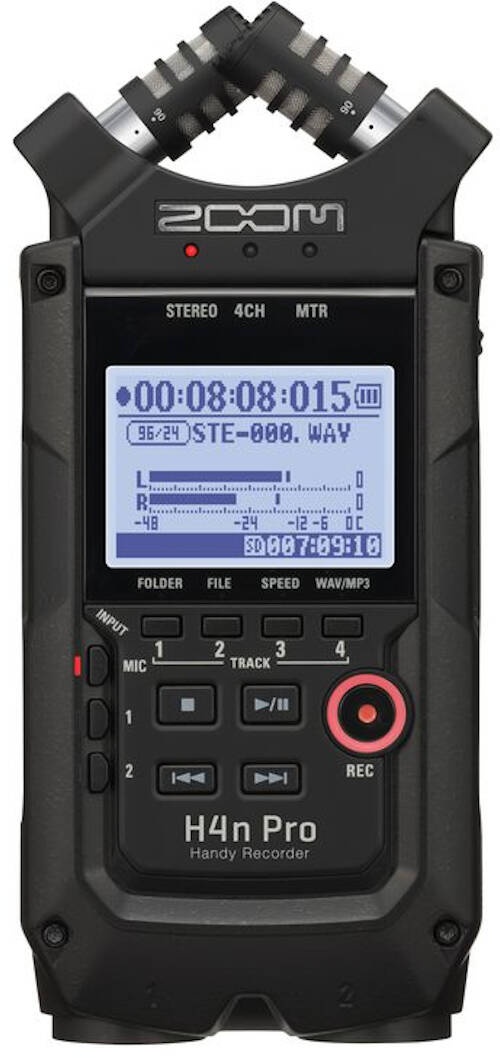

Zoom H4n PRO
Operation manual
2 x AA batteries
Protective case
Steinberg WaveLab LE software download
Steinberg Cubase LE software downloadGeneral
NUMBER OF SIMULTANEOUS RECORDING TRACKS: 2 (STEREO mode), 4 (4CH mode), 2 (MTR mode)
RECORDING TIME 4 GB (SDHC): Approx. 380 minutes (WAV 44.1 kHz / 16-bit stereo track)
Approx. 68 hours (MP3 44.1 kHz / 128 kbps stereo track)
* Recording times are approximations. Actual times may differ according to recording conditions.
MAXIMUM FILE SIZE OF SIMULTANEOUS RECORDING: 2 GB
PROJECTS: 1000/card
LOCATE FUNCTION: Hours/Minutes/Seconds/Milliseconds
OTHER FUNCTIONS: Punch-in/out, Bounce, A-B repeat
EFFECTS MODULES: 2
STEREO / 4CH Mode: LO CUT, COMP/LIMITER
MTR Mode: PRE AMP module, EFX module
TYPES: 53
PATCHES: 60
TUNERS: Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD
METRONOME SOUND SOURCES: 5
VARIABLE BEAT: 1/4 - 8/4, 6/8, unaccentuated
TEMPO: 40.0 - 250.0 BPM
A/D CONVERSION: 24-bit × 128 oversampling
D/A CONVERSION: 24-bit × 128 oversampling
RECORDING MEDIA: SD card (16 MB – 2 GB), SDHC card (4 GB – 32 GB)
DISPLAY: 128 x 64 dots Full-dot backlit LCD
Data Type - WAV Format (Record/Play)
QUANTIZATION: 16- / 24-bit
SAMPLING FREQUENCY: 44.1 / 48 / 96 kHz
Data Type - MP3 Format (Recording)
BIT RATE: 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR
SAMPLING FREQUENCY: 44.1 / 48 kHz
Inputs
INPUT [1] [2]: XLR (balanced input) / standard phone (unbalanced input) combo jack
INPUT IMPEDANCE: (Using balanced input) 3 kΩ or more, pin 2 hot
(Using unbalanced input) 470 kΩ or more
INPUT GAIN: (Using balanced input) −16 dB to +43 dB
(Using unbalanced input) -30 dB to +32 dB
BUILT-IN STEREO MIC: Unidirectional condenser microphone
Sensitivity: -45 dB/1 Pa at 1 kHz
Input gain: -16 dB to +51 dB
Maximum sound pressure input: 140 dB SPL
EXTERNAL MIC: Mini stereo phone jack
Input impedance: 2 kΩ or more
Input gain: - 16 dB to +51 dB
Outputs
LINE/PHONE: LINE Output load impedance: 10 kΩ or more
LINE rated output level: -10 dBu
PHONE: 20 mW + 20 mW (into 32Ω load)
MONAURAL SPEAKER: 400 mW 8 Ω
PHANTOM POWER: 48V, 24V, OFF
USB: USB 2.0 High Speed Mass Storage Class operation, Audio interface operation
(USB functions can be operated by USB bus power)
POWER REQUIREMENTS: DC 5V 1A AC from AC adapter (ZOOM AD-14), 2 x AA batteries
BATTERIES: IEC R6 (size AA) x 2
CONTINUOUS RECORDING TIME: STEREO mode
Using built-in mics at 44.1 kHz/16-bit without headphones connected
About 5.5 hours using alkaline batteries or about 7.5 hours using NiMH (2500mAh) batteries
STAMINA mode
Using built-in mics at 44.1 kHz/16-bit without headphones connected
About 8 hours using alkaline batteries or about 10.5 hours using NiMH (2500mAh) batteries
DIMENSIONS: 73 (W) × 157.2 (D) × 37 (H) mm
WEIGHT: 294 g
