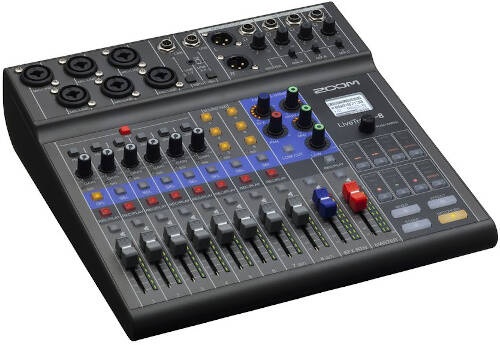

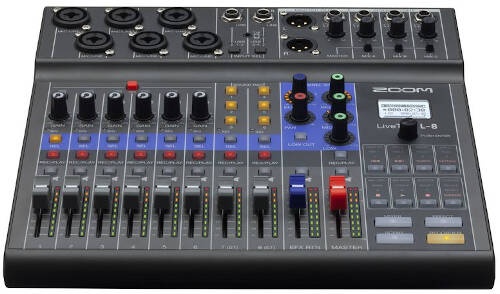

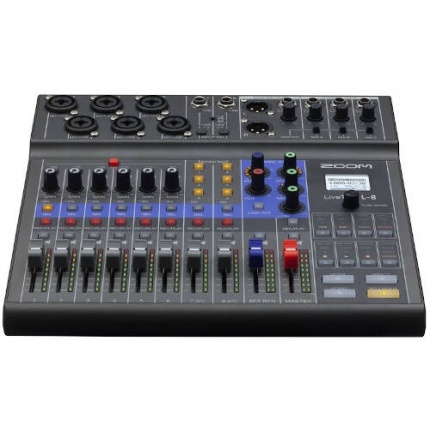

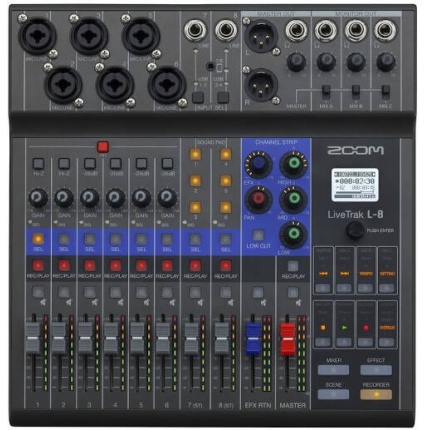

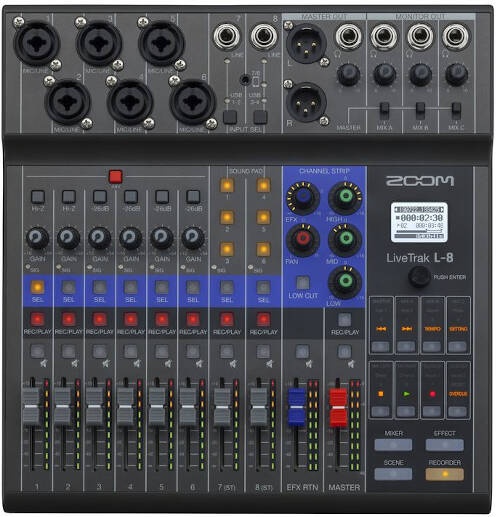

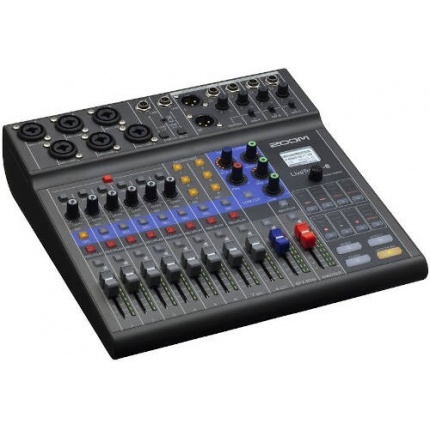

THE BOARD FOR CREATORS
Creators are evolving—and so are we. Zoom LiveTrak L-8 makes it easier than ever to mix, monitor and record professional-sounding podcasts and music performances in one portable, affordable package.POWER TO THE PODCAST
Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom’s famous audio performance with features made for podcasters.SOUND PAD MAGIC
Just press a button to play intros, outros, jingles, ads and sound effects. With 6 easily-assignable Sound Pads, the right sound is at your fingertips.FIRST-TIME CALLER, LONG-TIME LISTENER
Remote interviews are a snap with the L-8; just connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack and more.FREEDOM OF SPEECH
Zoom’s preamps are famous for a good reason: they’re transparent, powerful and ultra-reliable. The L-8 features six independent Zoom preamps, built to handle anything from a whisper to a raucous debate.A TRACK FOR EVERYONE
The pros know that when you record everyone on their own separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.SMALL IN SIZE BIG ON SOUND
From singer-songwriters to small bands, the L-8 is the ideal mixer and recorder for musicians who may be small in number, but big on sound.COMING THROUGH LOUD & CLEAR
The L-8 features six high performance preamps each with phantom power, a low noise floor (-121dBU EIN), and maximum input gain of +54dB.Additionally there are two each Hi-Z, line-level and USB inputs. You can also fine-tune each channel with EQ and onboard effects.
TRUE MULTI-TRACK RECORDING
The L-8 lets you record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz. You can punch-in and overdub with ease, then transfer your work to your favorite DAW for fine tuning.In the Box:
LiveTrak L-8 Mixer/Recorder
TRRS Cable
USB Cable
AD-17 AC Adapter
Quick GuideINPUTS AND OUTPUTS / NUMBER OF CHANNELS
INPUTS: MIC/LINE : 6
LINE : 2
OUTPUT: MASTER OUT : 1
MASTER OUT (PHONES) : 1
MONITOR OUT (PHONES) : 3
INPUTS
MIC/LINE: Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)
Input impedance: XLR: 3 kΩ
Input impedance: TRS: 3 kΩ/1 MΩ (when Hi-Z ON)
Maximum input level: –2 dBu when –26dB switch OFF (at 0 dBFS)
Maximum input level: +24 dBu when –26dB switch ON (at 0 dBFS)
Phantom power: +48 V
LINE: Type: TS phone jack
Input impedance: 10 kΩ
Maximum input level: +3 dBu
SMARTPHONE CONNECTION JACK: Type: TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
Input impedance: 10 kΩ
Maximum input level: +3 dBu
OUTPUT
MASTER OUT: Type: XLR jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω
MASTER OUT (PHONES): Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60Ω load)
Output impedance: 10 Ω
MONITOR OUT (PHONES): Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60Ω load)
Output impedance: 10 Ω
BUSES
MASTER: 1
MONITOR: 3
SEND EFX: 1
CHANNEL STRIP
LOW CUT: 75 Hz, 12 dB/OCT
EQ: HIGH: 10 kHz, ±15 dB, shelving
MID: 2.5 kHz, ±15 dB, peaking
LOW: 100 Hz, ±15 dB, shelving
LEVEL METER: 9 segments
SEND EFFECTS: 8 types
RECORDER
MAXIMUM SIMULTANEOUS RECORDING TRACKS: 12 at 44.1/48/96 kHz
MAXIMUM SIMULTANEOUS PLAYBACK TRACKS: 10
RECORDING FORMAT: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
RECORDING MEDIA: 4GB–32GB SDHC-compliant cards (Class 10 or higher)
64GB–512GB SDXC-compliant cards (Class 10 or higher)
AUDIO INTERFACE
44.1/48 KHZ: Recording: 12 channels
Playback: 4 channels
BIT DEPTH: 24-bit
INTERFACE: USB 2.0
SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
WINDOWS: OS： Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
MAC: OS： macOS 10.12 ~ 11
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.
IPHONE/IPAD: OS： iOS 10 / 11 / 12 / 13
* Apple Lightning-to-USB Camera Adapter required.
CARD READER
CLASS: Mass storage USB 2.0 High Speed
SAMPLING FREQUENCY: 44.1/48/96 kHz
FREQUENCY RESPONSE:
20 Hz – 20 kHz: –1 dB at 44.1 kHz
20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o'clock)
EQUIVALENT INPUT NOISE: –121 dBu or less (IHF-A) at +54dB/150Ω input
DISPLAY: LCD with backlight (96×64 resolution)

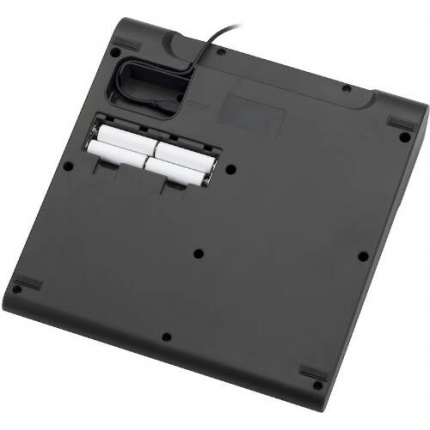

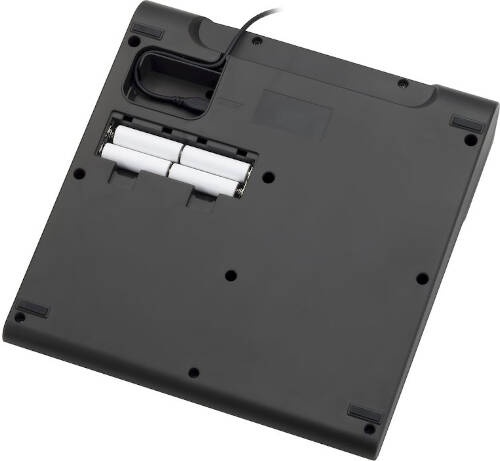

POWER: 4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
Supports USB bus power
ESTIMATED CONTINUOUS RECORDING TIME USING BATTERIES:
Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62Ω):
Alkaline batteries: about 1.5 hours
NiMH batteries (1900 mAh): about 3 hours
Lithium batteries: about 5 hours
-The above values are approximate.
-Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
POWER CONSUMPTION: 5 W
EXTERNAL DIMENSIONS: 268 mm (W) × 282 mm (D) × 74 mm (H)
WEIGHT (UNIT ONLY): 1.56 kg
