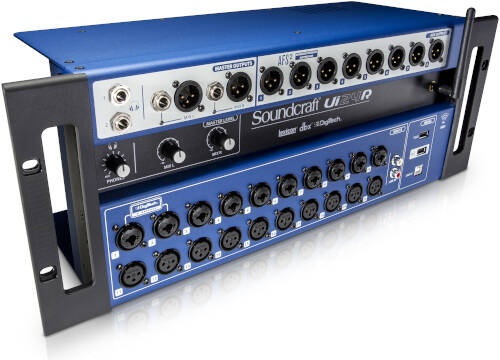

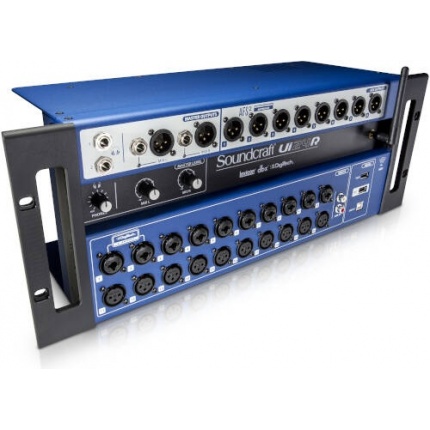

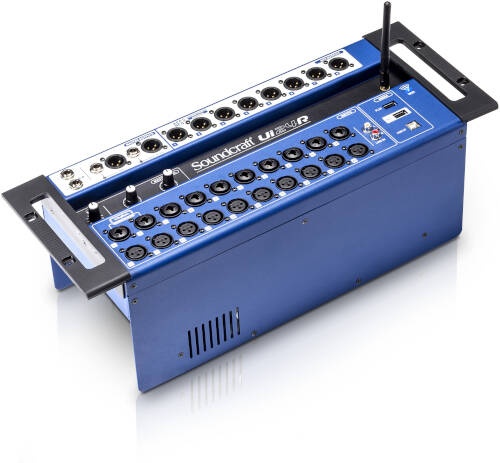

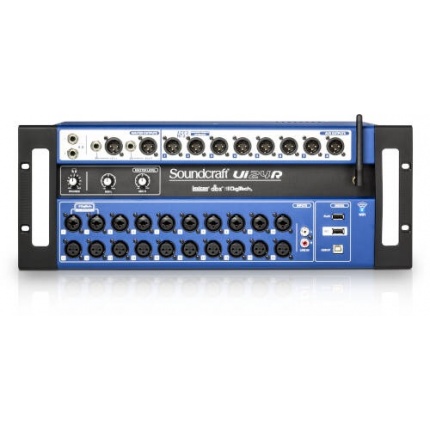

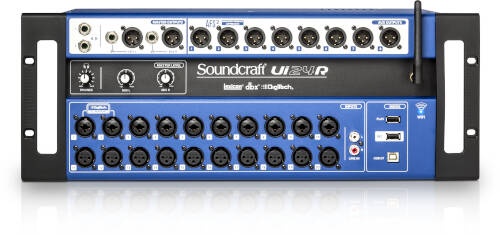

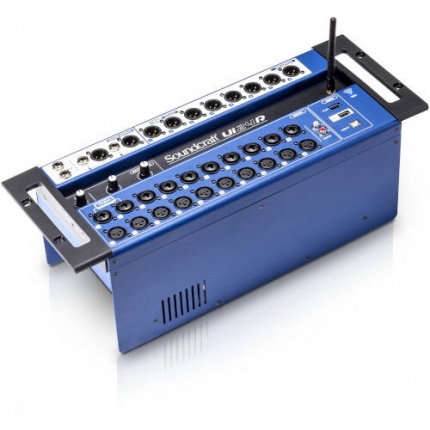

The Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability—all in a streamlined design. The system can double as a stagebox and can be controlled by up to 10 devices via Ethernet or built-in dual-band Wi-Fi, making it possible to control mixing and multi-track recording wirelessly from anywhere in the venue. With renowned HARMAN signal processing, Studer-designed preamps and much more—from the studio to the stage, Soundcraft Ui24R is the ultimate system for artists, venues and engineers who need to save space and deliver superior sound.
Ui24R brings together industry-leading HARMAN technologies to deliver unprecedented power and mission-critical stability. Renowned Studer preamps deliver rich sound for live performance and multi-track recording, while iconic Lexicon reverbs, choruses, delays, and dbx compression offer polished results for vocals, acoustic guitar and more. dbx AFS2 automatic feedback suppression is available on all monitor outputs, providing an excellent live experience. Plus, DigiTech guitar amp modeling brings a host of effects to any performance, particularly when low stage volume is desired.
More Ways to Connect

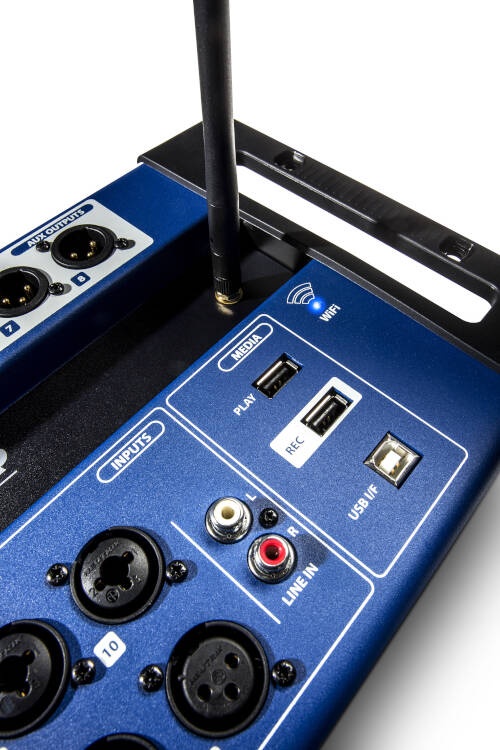

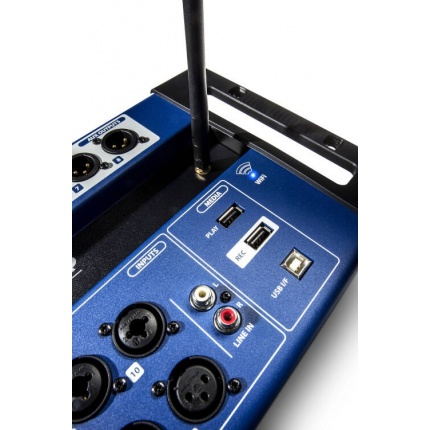

When you need a mixer with comprehensive connections and a compact footprint, Ui24R provides the perfect, streamlined solution. The Ui24R allows you to mix from multiple sources including 10 combo 1/4"-TRS/XLR, 10 XLR, 2 line level inputs, and 2 channels of digital USB playback for a total of 24 channels. With its flexible and high-quality I/O, Ui24R gives venues, bands and engineers room to grow, with expanded creative options.
More Ways to Control
Control Ui24R from the device of your choice (tablet, phone, PC, Mac) via iOS, Android, Windows, Mac OS and Linux browsers, without installing apps. Onboard dual-band WiFi ensures you (and up to 9 members of the band) can always stay in control without relying on an independent router or the venue’s WiFi. Musicians can adjust their individual mix on stage while the FOH engineer optimizes the audience experience.
Multi-track Recording and Playback
Ui24R is more than just a complete mixing system—it’s also a top-notch recording tool. Enjoy peace of mind with dual-path, multi-track recording of all 22 inputs and your stereo mix, directly to a USB storage drive AND a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW.
The Ableton Live 10 Lite software is an included download with all Ui Series mixers. Feed your creativity with this fast, flexible and sequencing workstation. From built-in instruments, sounds and effects to recording and mixing features, Live 10 Lite gives you everything you need to create, produce and perform.
More Freedom
Traditional mixers offer lots of functionality, but can only be controlled from the mix console position. The Ui24R surfaceless mixer combines the power and versatility of a large-format console with a compact design and complete Wi-Fi control. With Ui24R, you can finally have the features you need, plus the freedom to control your mixer from anywhere in the venue.
New Ui24R v3.0 Firmware Available Now
With the free v3.0 firmware update, the Soundcraft Ui24R has been enhanced with Cascading and a number of other significant new features.Cascading enables you to connect two Ui24R systems via Ethernet to expand your mixing capability with a new 32x32 bi-directional audio bus. Add a second Ui24R to double your mic inputs or connect two Ui24R mixers and control two fully independent mixes, such as FOH and monitors, or FOH and streaming mixes.
Features in the free 3.0 firmware update:
Cascading: Double your inputs or double your mixes
Cue Recall: save mix settings as Cues and then quickly and seamlessly recall them
UDP Control Recall: for triggering lighting control snapshots
Lexicon Reverb PreDelay: easily set the time before first surface reflections and simulate desired acoustic environments
More than 25 new supported touch screens
And more, described in the downloadable Ui24R 3.0 Firmware Addendum documentIn the Box:
Soundcraft Ui24R 24-Channel Digital Mixer / Multitrack USB Recorder with Wireless Control
Power Cord
Limited 1-Year WarrantyMixer
Number of Analog Input Channels 24 (20 Mono / 2 Stereo)
Number of Mic Preamps 20
Number of Analog Output Channels 2
Mix Routing 8 x Mono Aux Send
Presets None
Faders None
Signal Processing
Gain/Trim Range Mic/Line:
-6 dB to +58 dB
Dynamic Processing Input Channels:
Compressor, Gate
Gate Parameters Threshold: +6 dB
Depth: 0 dB
Attack: 1 ms to 400 ms
Hold: 1 ms to 2000 ms
Release: 5 ms to 2000 ms
Compressor Parameters Threshold: -90 to +6 dB
Attack: 1 ms to 400 ms
Release: 10 ms to 2000 ms
Makeup Gain: 0 to 48 dB
EQ Input Channels:
4-Band Parametric
Outputs:
31-Band Graphic
Graphic EQ Yes
Filters Input Channels:
High-Pass: 20 Hz to 1 kHz
Low-Pass: 22 kHz to 1 kHz
Real Time Analyzer Yes
Audio Delay Yes
Performance
Frequency Response 20 Hz to 20 kHz ±0.5 dB
Max Input Level XLR Mic/Line Input:
+19.5 dBu
Output Level Analog Output:
+20.5 dBu
Headphone Output Power 1/4": 500 mW (Max)
I/O Impedance XLR Mic Input:
6 Kilohms (Balanced)
Signal Generator Yes
Connectivity
Analog Inputs 10 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
10 x XLR 3-Pin Balanced Mic Input
2 x 1/4" TS Hi-Z Input
2 x RCA TS Line Input
1 x 1/4" TS Footswitch Input
Analog Outputs 2 x 1/4" TRS Headphone Output
2 x XLR 3-Pin Balanced Main Output
2 x 1/4" TRS Main Output
8 x XLR 3-Pin Balanced Aux Send

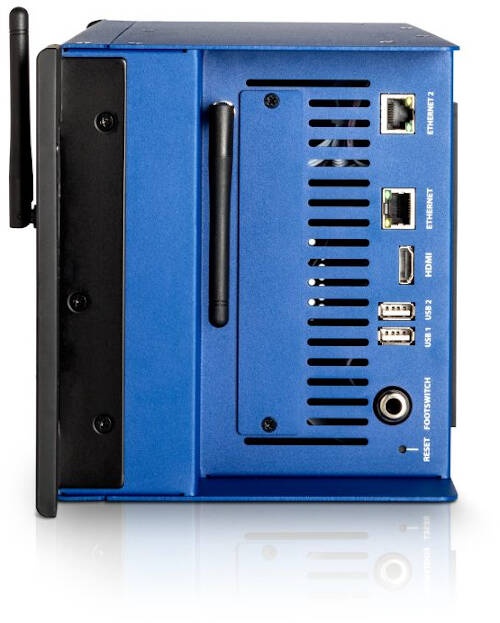

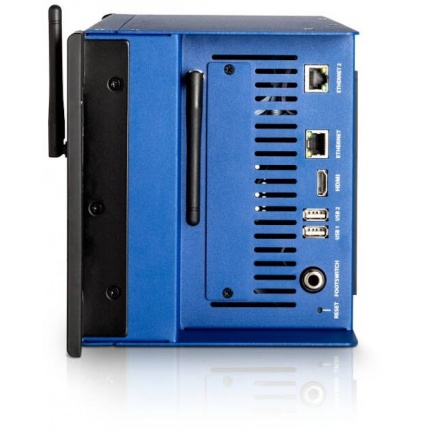

Digital I/O 1 x RJ45 (Control)
MIDI I/O None
USB 1 x USB Type-A (Recording)
1 x USB Type-B (Host Connection)
1 x USB Type-A (Control)
Expansion Ports None
Wireless Connectivity Wi-Fi
External Display Connection 1 x HDMI
Recording
Max Multitrack Recording 22 Tracks
Compatibility
OS Compatibility
Windows
macOS
Linux
iOS
Android
Internet Connection Yes
Power
AC Input Power 88 to 265 VAC, 50 / 60 Hz
Power Consumption 65 W
Physical
Rackmount Size 4 RU (with Included Hardware)
Operating Temperature 41 to 104°F / 5 to 40°C
Operating Humidity 0 to 90%
Storage Temperature -4 to 140°F / -20 to 60°C
Dimensions 7 x 19 x 6.5" / 177.8 x 482.6 x 165.1 mm
