Bose Freespace 3 Business Music Sound System Bundle (L)

S$ 2,349.00
(S$ 2,349.00 excl GST)
Not shipping to UNITED STATES OF AMERICA 2 years manufacturer's warranty Not refundable/exchangeable

 Please select your add-on:

Add on-site installation
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Choice of Black or White Colour

Key Features:
  • 4x Bose Professional FreeSpace 3 Surface Satellite Cube loudspeaker (White/Black)
  • 1x Bose Professional FreeSpace 3 Series I Acoustimass bass module (White/Black)
  • 1x Lab Gruppen CMA1201 Commercial 120W amplifier
  • 1x Lab Gruppen CRC Wall-Mount Volume Control
  • 1x 3.5mm minijack to RCA cable for connection to laptop or music playback
  • 1x Professional speaker cable AWG18, grey jacket, tinned x 30m roll
Show moreShow less
  • Buy commercial sound system bundles online from Singapore's Premier AVL Superstore. Great for cafes, restaurants, offices, homes or anywhere background music is desired.

    We have curated a fuss-free sound system kit for you, combining the ever-popular Bose FreeSpace 3 Acoustimass Bass Module, Surface Satellite Cube loudspeakers and all-in-one Lab Gruppen CMA1201 amplifier. We can even supply the hookup diagram when you purchase the bundle from us. All you need is to have the cables run and hook up the speakers according to the simple diagram and you will be in business.

    This minimal-fuss installation kit is designed to playback music without meddling with many complicated controls.
    This kit is supplied with FreeSpace 3 Surface Satellite Cube loudspeaker-Black color unless FreeSpace 3 Surface Satellite Cube loudspeaker-White is requested and acknowledged by our order team.

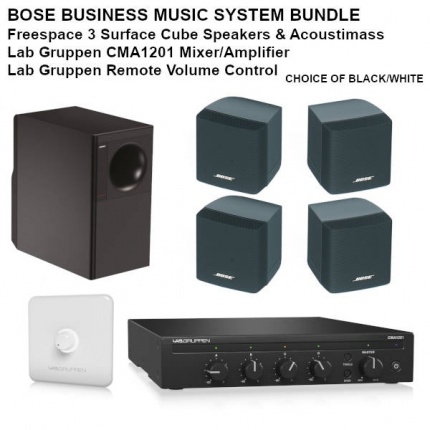

    Package consists of

    4 x Bose Professional FreeSpace 3 Surface Satellite Cube loudspeaker (White/Black)
    1 x Bose Professional FreeSpace 3 Series I Acoustimass bass module (White/Black)
    1 x Lab Gruppen CMA1201 Commercial 120W amplifier
    1 x Lab Gruppen CRC Wall-Mount Volume Control
    1 x 3.5mm minijack to RCA cable for connection to laptop or music playback
    1 x Professional speaker cable AWG18, grey jacket, tinned x 30m roll

    Bose Professional FreeSpace 3 Surface-Mount Satellites

    The Bose® FreeSpace® 3 surface-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music.

    • Subwoofer/satellite systems that deliver high fidelity and extended bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations

    • Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module and parallel connection of bass modules

    • Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications

    • Flush-mount components are plenum rated when used with the optional plenum cover

    • Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module

    • Can be configured for stereo or mono operation

    FreeSpace 3 Series I Acoustimass bass module

    Designed to provide surface-mount bass augmentation for new and existing background music systems. Features one 5.25" (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.

    For indoor applications only.

    • Low-frequency loudspeaker featuring one 5.25" (133mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications
    • Acoustimass speaker technology filters out audible distortion to deliver non-localized bass
    • Designed to work with the FreeSpace 3 surface and flush satellite speakers, or existing systems where additional bass reinforcement is desired
    • Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
    • Selectable 70/100V or low impedance

    Lab Gruppen CMA1201 | 120 Watt Commercial Mixer Amplifier with 4 Inputs

    A 120 Watt Commercial Mixer Amplifier that provides the perfect solution for commercial and industrial applications requiring great sounding, distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations and offers extreme flexibility on every channel. The CMA1201 is easy to install and operate – even for non-technical personnel. Simply put, the CMA1201 is ideal-suited for bars and restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

    Alternatively, if you want a bundle that is listed on another competitor's site, send us the link via WhatsApp or send us a message with the details and we will make you a competitive offer.

    All equipment should be set up by a professional installer, and we will not be liable for any improperly installed or equipment damaged due to mishandling or a failure to follow the instructions provided in the installation manual. Service calls for rectifications will follow our standard service call rates.

    5-Years warranty applies only to Bose passive speakers. Amplifier & electronics warranty is only 2-years.

    Not included - Get in touch with us to arrange a site visit and quote
    Cabling and conduit
    Height access by M.O.M Approved Scaffold Contractor
    Installation, testing & commissioning by W.A.H certified workmen by BizSafe Level 3 contractor.

  • Bose FS3 Technical Summary

    Frequency Response (+/-3 dB)
    50 Hz - 16 kHz (System)
    210 Hz - 16 kHz (Satellites)
    Frequency Range (-10 dB)
    40 Hz - 20 kHz (System)
    170 Hz - 20 kH z (Satellites)
    Nominal Dispersion
    170 ° conical
    Long-Term Power Handling
    System: 70/100 V: 200 W (800 W peak)
    System Low impedance: 100 W (400 W peak)
    Satellites: 12W (48W Peak)
    Sensitivity (SPL / 1 W @ 1 m)
    82 dB SPL (System)
    84 dB SPL (Satellites)
    Maximum SPL @ 1 m
    System: 93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB)
    Satellites : 95 dB (101 dB SPL peak)
    Nominal Impedance
    4-Cube System: 6 Ω per channel
    2-Cube System: 5 Ω per channel (surface);
    6 Ω per channel (flush)

    Product Codes
    Satellites
    Surface - Black
    040144 - pair

    Surface - White
    040143 - pair

    FreeSpace 3 Series I Acoustimass bass module

    Technical Summary
    Frequency Response (+/-3 dB)
    50 Hz - 230 Hz

    Frequency Range (-10 dB)
    40 Hz - 315 Hz

    Nominal Dispersion
    Omni-directional below 200 Hz
    Long-Term Power Handling
    70/100 V: 200 W (800 W peak) mono
    Low impedance: 50 W (200 W peak) per channel stereo or 100 W (400 W peak) mono

    Sensitivity (SPL / 1 W @ 1 m)
    Per channel: 76 dB SPL (Mono: 79 dB SPL)

    Maximum SPL @ 1 m
    Per channel: 96 dB SPL (102 dB SPL peak)
    Mono: 102 dB SPL (108 dB SPL peak)

    Nominal Impedance
    5 Ω mono direct (transformer bypassed)

    Product Codes
    Black
    040146

    White
    040145

    ---

    Lab Gruppen CMA1201 | 120 Watt Commercial Mixer Amplifier with 4 Inputs

    Maximum Output Power
    4 or 8 Ω per channel
    120 W

    Number of Amplifier Channels
    Number
    1

    Minimun Load Impedance
    4 Ω mode
    4 Ω

    8 Ω mode
    8 Ω

    70 V output mode
    41 Ω

    100 V output mode
    82 Ω

    Audio Outputs
    Amplifier output
    2-pin Euroblock connector, stereo

    Aux output
    3-pin Euroblock connector

    Aux output max level
    4.88 V (16 dBu)

    Audio Inputs
    Mic/Line with priority/ ducking input
    1 x 5-pin Euroblock connector (channel A)

    Mic/Line with summed RCA
    3 x 3-pin Euroblock connector, 3 x stereo RCA (channel B, C, D)

    Impedance
    Balanced mic/line: 20 kΩ Unbalanced line and RCA: 10 kΩ

    Input sensitivity for max amplifier output or nominal (+4 dBu) aux output level
    Mic: 0.038 V (-26 dBu)

    Balanced: 1.23 V (+4 dBu)

    RCA: 0.62 V (-2 dBu) each for mono sum RCA

    Maximum input level
    4.88 V (+16 dBu)

    Microphone phantom power
    48 V

    Controls
    Front
    Power standby button, input and output gain control, tone controls - bass and treble

    Rear
    Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter, mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models only)

    Tone Controls
    Bass
    ±10 dB @ 100 Hz

    Treble
    ±10 dB @ 10 kHz

    Indicators
    Power
    On (blue), force standby (red), standby (yellow

    Inputs
    Signal (green LED)
    >12.3 mV (-36 dBu)

    Fault (red LED)
    Clip

    Master
    Signal (green LED)
    >-50 dBu

    Fault (red LED)
    Overheat, DC fault, over current, etc

    Limit (red LED)
    Output limit

    System
    Output circuit type
    Class D

    Remote connector
    1 x RJ45 Ethernet connector

    Performance
    Distortion, 1/8 rated power
    0.05%

    Frequency response
    20 Hz to 20 kHz, +0.5 / -1 dB

    Crosstalk (2 channel models)
    >70 dB

    Signal-to-noise
    >97 dBA

    High-pass filter
    80 Hz HPF

    Circuit Protection
    Cooling
    Convection-cooled, fanless

    Amplifier protection
    Thermal protection, over current protection, DC protection, high frequency protection

    Load protection
    Controlled start and shutdown behaviour, DC-fault protection

    Power Supply, Voltage (Fuse)
    Main voltage
    100-240 V~, 50/60 Hz

    Fuse
    T 3.15 A L 250 V

    Power consumption 1/8th rated power@ 4 Ω
    50 W

    Mains connector
    Standard IEC connector

    Dimensions / Weight
    Dimensions (H x W x D)
    44 x 218 x 299 mm (1.8 x 8.6 x 11.8")

    Weight
    2.4 kg (5.3 lbs)

    Finish
    Brushed black anodized aluminum chassis with black painted steel bottom

    Approvals
    CE, CCC, WEEE, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
