DPA gooseneck microphones have quickly become a very popular choice for podium mics as well as for conference room usage as either tabletop or ceiling mount. These microphones have, on numerous occasions, been the preferred type to turn to when high speech intelligibility is paramount. This for instance is the fact at parliaments where multiple languages are to be simultaneous interpreted and the interpreters must catch every word and nuances of the spoken word and in a split second deliver the perfect translation. In conference use, boardroom applications and videoconference situations the DPA mics give you trouble-free installations and delivers pristine, clear sound. DPA's gooseneck microphone solutions are primarily for the installation segment.

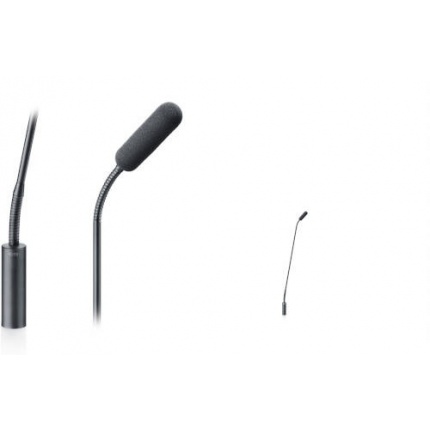

4098 CORE Supercardioid Microphones
CORE by DPA technology has been added to the 4098 microphones, lifting sound quality even more, just like all of the other products using CORE technology. The 4098s dynamic range has been increased by 8 dB so that the 1% THD is lifted significantly to 133 dB. With very low noise and high sensitivity, 4098 CORE Supercardioid Microphones offer the clearest, transparent, and natural sound available on the miniature mic market. The mics are capable of handling extremely high SPL before clipping, which allows the mic to deliver high speech intelligibility even when the speaker gets excited and starts to speak VERY loudly. With a linear response, low distortion, and an extremely large dynamic range, these mics sound great no matter how challenging the environment. In addition, speaking into the side (off-axis) of the microphone doesn’t make the audio sound worse, it just drops the level of your voice.In the Box
- DPA Microphones 4098 CORE Supercardioid Microphone with 18" Boom with Top & Bottom Gooseneck and XLR Connector (Black)
- Limited 2-Year WarrantyDirectional pattern: Supercardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in): 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
Distortion, THD 1% - Legacy: 122 dB SPL RMS, 125 dB SPL peak
Distortion, THD 1% - CORE: 130 dB SPL RMS, 133 dB SPL peak
Dynamic range - Legacy: Typ. 102 dB
Dynamic range - CORE: Typ. 110 dB
Max. SPL, THD 10%: 135 dB SPL peak
Rated output impedance: 100 Ω
Minimum load impedance: 2 kΩ
Cable drive capability: Up to 100 m (328 ft)
Output balance principle: Signal balanced with XLR connector or DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR)> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
Power supply (for full performance): P48 (Phantom Power)
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector: XLR-3M
Color: Black
Weight: 88 grams (3.1 oz)
Microphone diameter: 5.7 mm (0.22 in)
Microphone length: 47 cm (18 in)
Polarity: pin 2 on XLR connector
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
