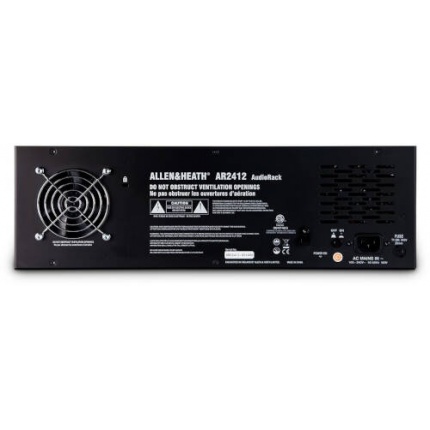

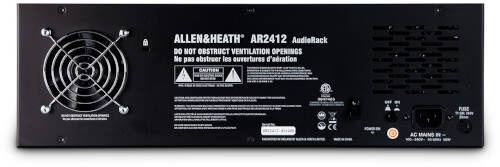

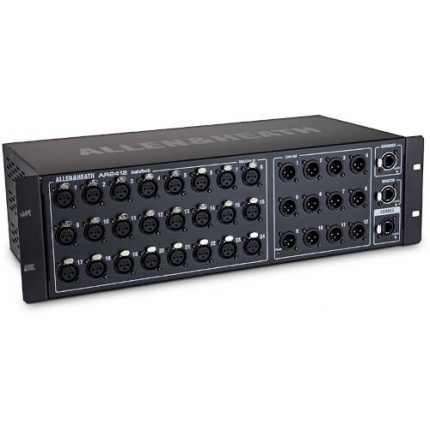

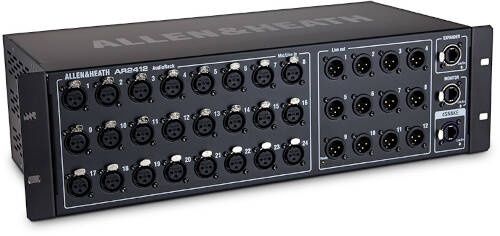

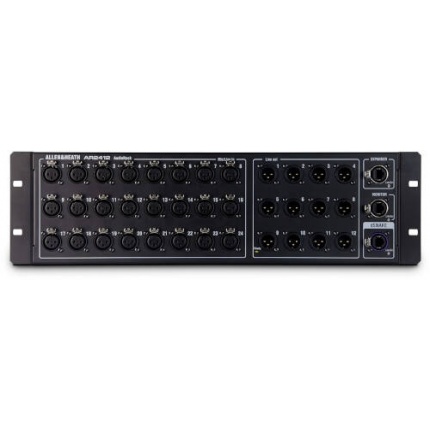

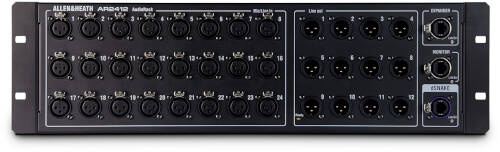

Allen & Heath AR2412 24x12 Main Remote Stage Rack

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis, and SQ mixers, and with the AHM-64 audio matrix processor.
Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.
dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
AR2412 also includes a Monitor port for connection to ME-1 personal mixers and an Expander port for daisy-chaining to an AR84 or AB168.
In the Box
Allen & Heath AR2412 24x12 Main Remote Stage Rack for GLD & Qu Mixers (Black)

Specifications

Inputs
XLR Mic/Line Inputs: Balanced
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB
Maximum Input Level: +32dBu
Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)

Mic/Line Channel noise: 20-20kHz,Direct Out @ unbalanced out
Mic EIN: -127dB with 150Ω source
Unity gain (Pad in): -90dBu
Low gain (5dB, Pad out): -93dBu
Mid gain (30dB, Pad out): -89dBu

Mic/Line Channel THD+N: 20-20kHz, Direct Out @ unbalanced out
Unity gain (Pad in): 0.005% -86dBu @ 1kHz, 0dBu output
Low gain (5dB, Pad out): 0.003% -89dBu @ 1kHz, 0dBu output
Mid gain (30dB, Pad out): 0.004% -88dBu @ 1kHz, 0dBu output

Outputs
XLR Outputs: Balanced, Relay protected
Output Impedance: 75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -91dBu (muted, 20-20kHz)

Operating Temperature
0 deg C to 35 deg C
(32 deg F to 95 deg F)

Mains Power
100-240V, 50/60 Hz, 70W max
