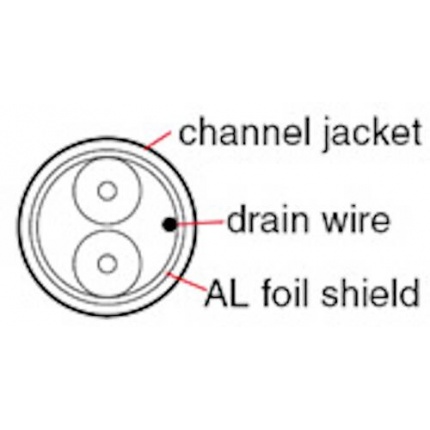

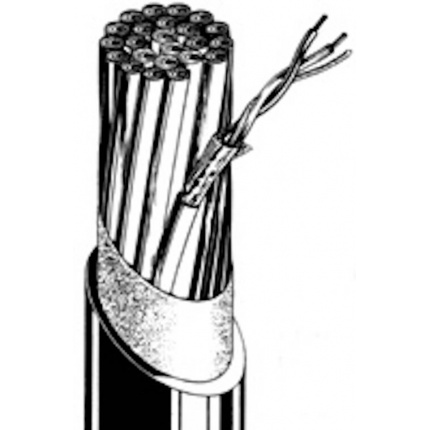

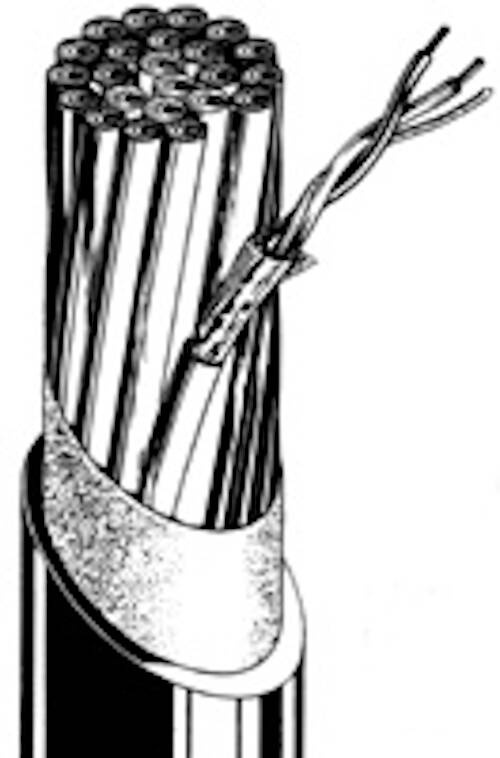

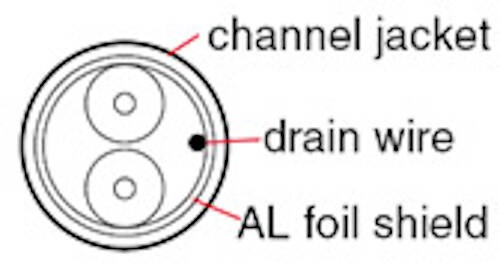

A practical, 100% foil shielded multichannel audio snake cable for general purpose studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers and tape decks.
- Microphones.
- Audio Rack Wiring.
- Recording Suites.
- Post Production.
- Foil Shield with Drain Wire.

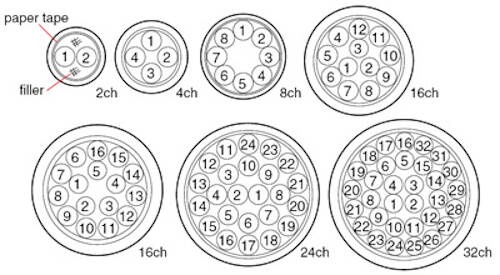

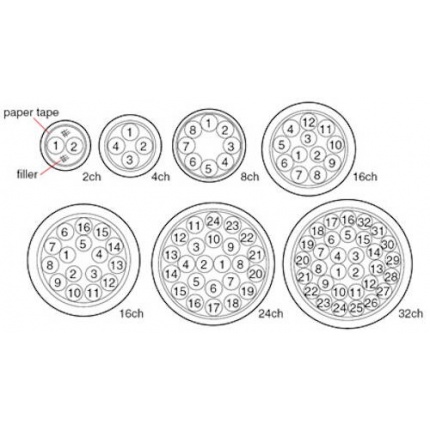

- Variety Channels.
If you would like to purchase 200m lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.
Std. Lng. ft. (m)
328 (100)No. of channels (Pairs)
8No. ofCond. (2 per channel)
16Wt Std. Lng. lbs (kgs)
35 (16)Nom. O.D. in.
.433 (11.0)PVC Jacket Nom. Thick. in. (mm)
.039 (1.0)Brittle Point F° (C°)
-4 (-20)Channel O.D.in. (mm)
.106 (2.7)Channel Jacket Nom. Thick mil
11.8Insul. Type Thick mil
IPE 9.1Cond-AWG (Qty./mil) Cross Sec. Area mil.
AC -#25
(7/7.09) 279Pitch of Pairs in (mm)
99 (25)Shield Coverage
100% Aluminum Tape
Drain Wire #25 AWGCond. D.C.R. ohm/1000ft (ohm/100m)
32.5 (10.7)Shield D.C.R. ohm/1000ft (ohm/100m)
-Nom.Cap.pF/m
76Nom.Cap.†pF/m
142Nom.Imp.ohm
-Nom. Atten. V/1000ft (V/100m)
-Group Delay Time nS/ft (nS/m)

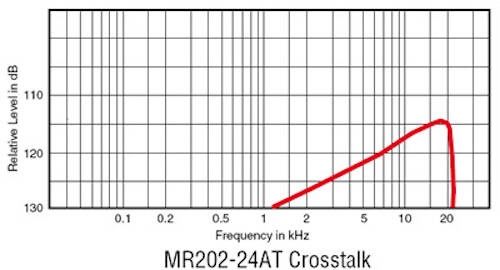

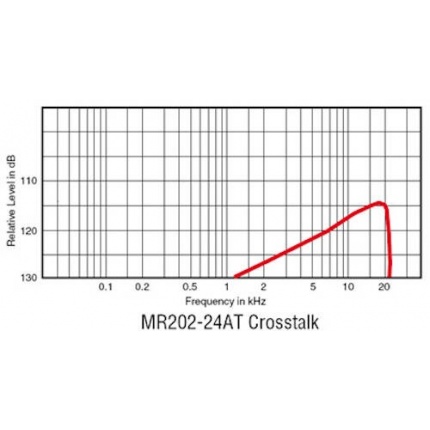

-X-Talk Input 3.31V mV/1000ft (mV/100m)
-
