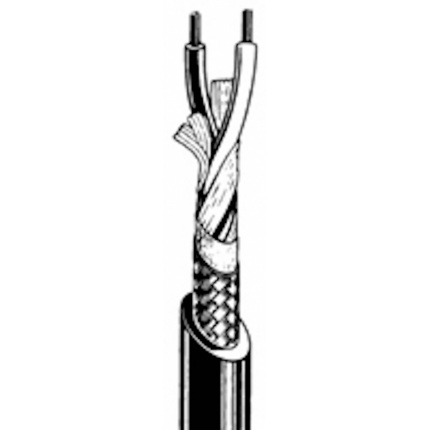

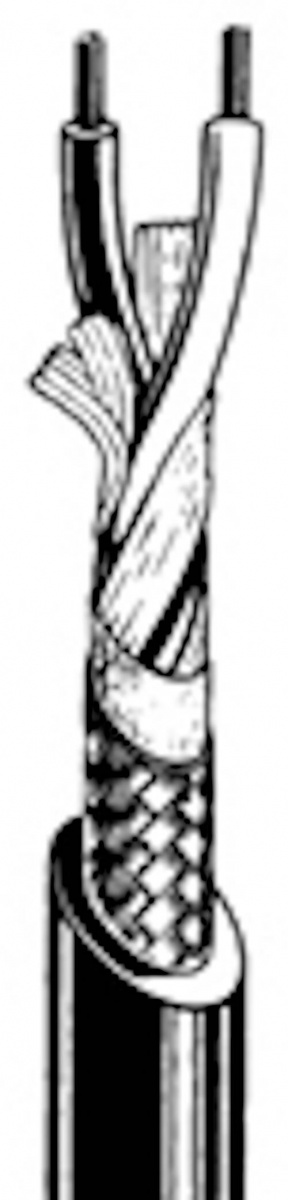

Our standard diameter 2-conductor microphone cable for general purpose audio applications. The high density braided copper shield and two inner conductors (composed of 60 thin strands of copper wire), allow for maximum flexibility and reduced handling noise. A special compound PVC outer jacket resists cracking and tears even in sub-zero environments.
- Microphones.
- Portable Applications.
- Audio Patch Cords.
- PA Systems.
- Braided Copper Shield.
- Flexible in Extreme Cold Weather.
- Reduced Handling Noise.
- Rejects EMI and RFI.
In the Box
Canare L-2T2S 100M Twisted Pair Microphone Cable (100 m)If you would like to purchase 200m lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.
Std. Lng. ft. (m)
328 (100)Wt Std. Lng. lbs (kgs)
10 (4.5)Nom. O.D. in. (mm)
.236 (6.00)Jacket Nom. Thick. in. (mm)
.039 (1.0)Brittle PointF° (C°)
-56 (-49)No. of Cond.
2Insul. Type Thickmil
IPE 19.7Cond-AWG (Qty./mil) Cross Sec.Area mil.
AC - #23
(60/3.15) 465Pitch Twist Quadin. (mm)
Less than 0.79 (Less than 20)Shield Coverage
Greater than 94% TAC BraidCond. D.C.R. ohm/1000ft (ohm/100m)
Less than 19.8 (Less than 6.5)Shield D.C.R. ohm/1000ft (ohm/100m)
Less than 9.4 (Less than 3.1)Nom. Cap. pF/m
70Nom. Cap.† pF/m
106Nom. Imp. ohm
88Nom. Atten.V/1000ft (V/100m)
0.9 (0.3)Group DelayTime nS/ft (nS/m)
1.83 (6.00)
