Canare Star Quad Microphone Cable L-4E6AT 100m

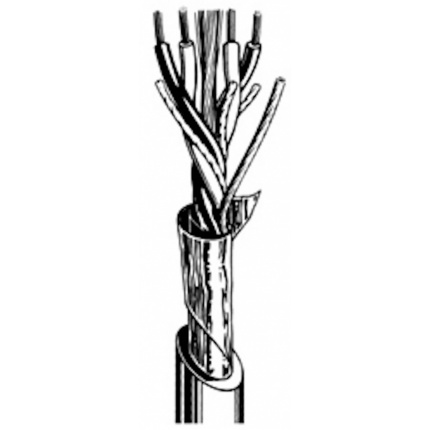

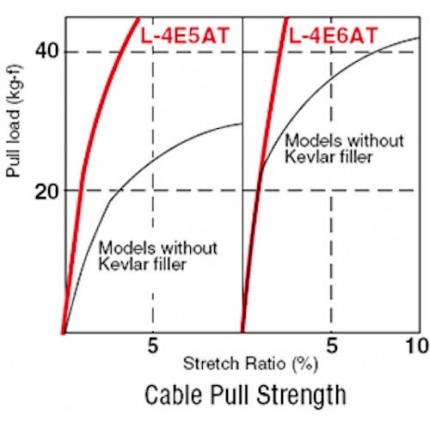

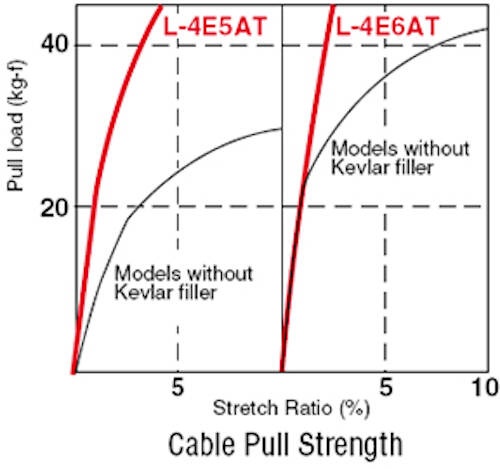

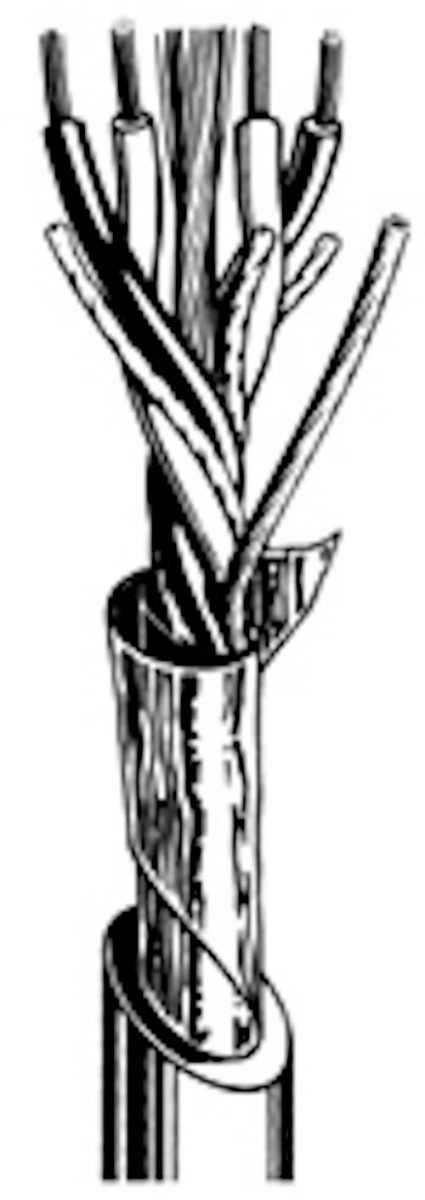

A 20 AWG Star Quad cable specifically designed for point to point wiring in fixed installations. Aluminum Foil Shielding provides 100% coverage. Slick, easy to pull PVC Jacket with internal Dupont Kevlar 29 cable filler, stronger than steel, can resist stretching or kinking of wires when pulled through conduit bends. Foil shield & drain wire strips easily for quick assembly work (1/3 the assembly time of braided shields). Irradiated PE conductor insulation resists solder iron meltdown.
In the Box
Canare L-4E6AT Star Quad Microphone Cable (100 m)
If you would like to purchase 200m lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.

Specifications

Std.Lng.ft.(m)
328 (100)

Wt Std. Lng. lbs(kgs)
12.5 (10)

Nom. O.D.in.(mm)
.244 (6.20)

Jacket Nom. Thick.in.(mm)
PVC .047 (1.20)

Brittle Point F°(C°)
-22 (-30)

No.of Cond.
4
2 Blue
2 White

Insul. TypeThickmil
IPE 15.7

Cond-AWG (Qty./mil) Cross Sec. Area mil. Quad AWG
AC - #23
12/7.09
481
#20

Pitch Twist Quadin. (mm)
.99 (25)

Shield Coverage
100% Aluminum Tape

Cond. D.C.R. ohm/1000ft(ohm/100m)
19.4 (6.4)

Shield D.C.R. ohm/1000ft(ohm/100m)
-

Nom. Cap. pF/m
150

Nom. Cap.† pF/m
210

Nom. Imp.(ohm)
37

Nom. Atten. V/1000ft(V/100m)
0.6 (0.2)

Group Delay Time nS/ft(nS/m)
1.68 (5.5)
