ULTRA-DI PRO DI4800A

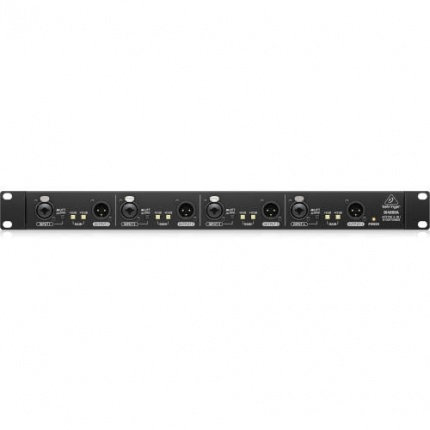

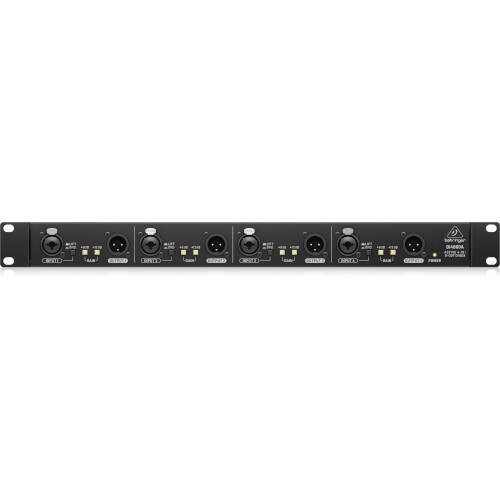

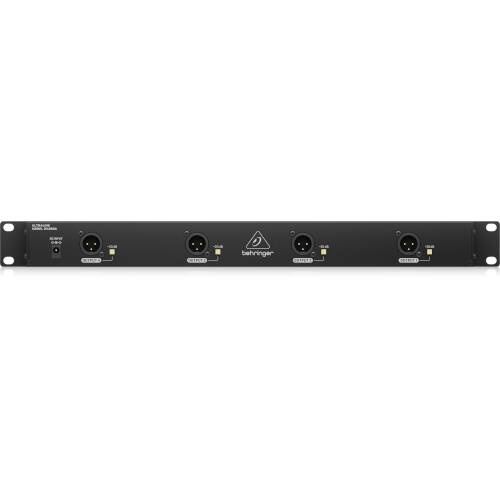

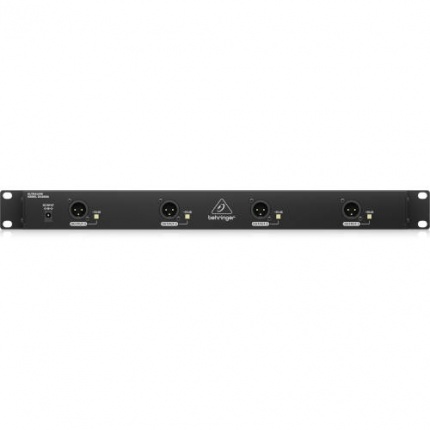

THE ULTRA-DI PRO DI4800A gives you 4 first-class DI channels in a single rack space. Each channel is equipped with one input (XLR or ¼” TRS) and two XLR Outputs at the front and back to connect to your amp or monitor console allowing for 8 outputs in all. Plus, the DI4800A is designed to accommodate virtually any input signal, with a switchable output attenuation of -20 dB, while our highly acclaimed OT-1 output transformers ensure pristine and powerful output.PRO-Active
Direct Injection (DI) boxes make it possible to connect guitars, basses and keyboards (as well as other line-level devices) to audio mixers and recorders. The DI4800A takes the DI box to the next level by providing +6 dB and +12 dB gain switches for a total of +18 dB of gain boost perfect for amplifying low-level signals. The DI4800A also features a -20 dB attenuation switch per channel, gold-plated XLR output connectors which provide reliable, low-noise operation and per channel ground-lift switches to eliminate ground-loop hum issues.¼” In, XLR Out – There has to be More?
The 4-channel ULTRA DI PRO DI4800A delivers exceptional sound quality – at an extremely affordable price.In The Box:
Behringer ULTRA-DI PRO DI4800A 4-Channel DI Box (1 RU)
Inputs
Connectors
4 x XLR-1/4" combo jacks, balancedImpedance
20 kΩMax. input level
+20 dBuChannel boost switchable
+6 dB,+12 dB,+18 dBOutputs
Connectors
8 x XLR, transformer balancedImpedance
600 ΩMax. output level
+20 dBuOutput pad switch
20 dB attenuationSystem
Frequency response
20 Hz to 20 kHz (±3 dB)THD + N (distortion)
0.01% @ 1 kHz, 0 dBuSignal-to-noise ratio
120 dBGround lift switch
Removes ground connectionPower requirement
12 V DC, 500 mAPhysical
Standard operating temperature range
5° C – 40° C (41° F – 104° F)Dimensions (W x D x H)
483 x 71 x 44 mm(19.0 x 2.8 x 1.7"")
Weight
1.4 kg (3.1 lbs)
