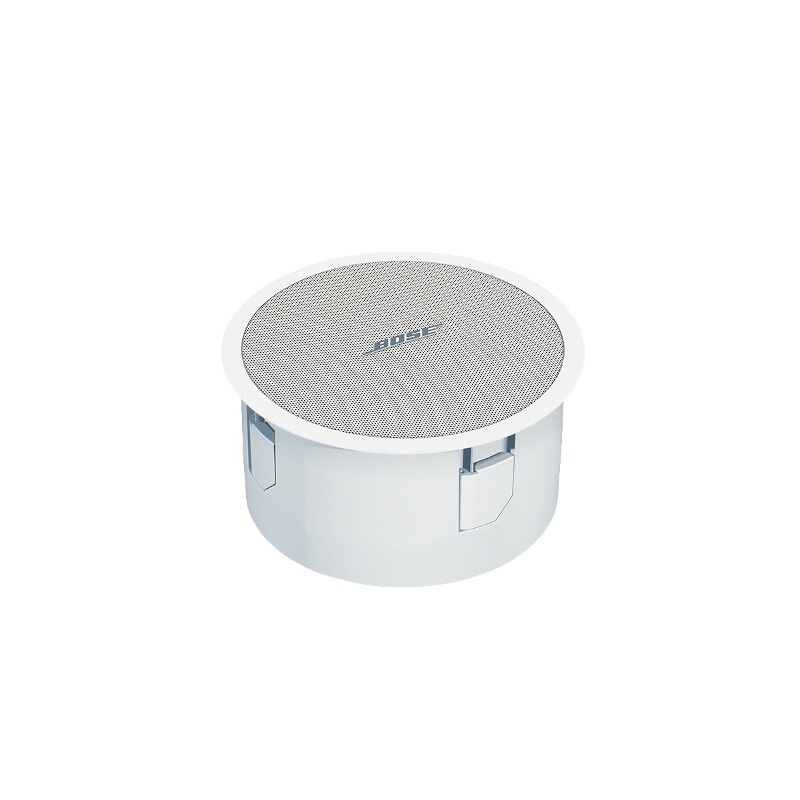

Designed to provide flush-mount bass augmentation for new and existing background music systems. Features one 5.25" (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.
For indoor applications only.
Features:
Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations
Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
Flush-mount components are plenum rated when used with the optional plenum cover
Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
Can be configured for stereo or mono operation
Applications:Retail stores
Restaurants and bars
Lobbies and conference roomsFrequency Response (+/-3 dB)
50 Hz - 16 kHz (System)
210 Hz - 16 kHz (Satellites)Frequency Range (-10 dB)
40 Hz - 20 kHz (System)
170 Hz - 20 kH z (Satellites)Nominal Dispersion
170 ° conical
Long-Term Power Handling
System: 70/100 V: 200 W (800 W peak)
System Low impedance: 100 W (400 W peak)
Satellites: 12W (48W Peak)Sensitivity (SPL / 1 W @ 1 m)
82 dB SPL (System)
84 dB SPL (Satellites)Maximum SPL @ 1 m
System: 93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB)
Satellites : 95 dB (101 dB SPL peak)Nominal Impedance
4-Cube System: 6 Ω per channel
2-Cube System: 5 Ω per channel (surface);
6 Ω per channel (flush)
