One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.

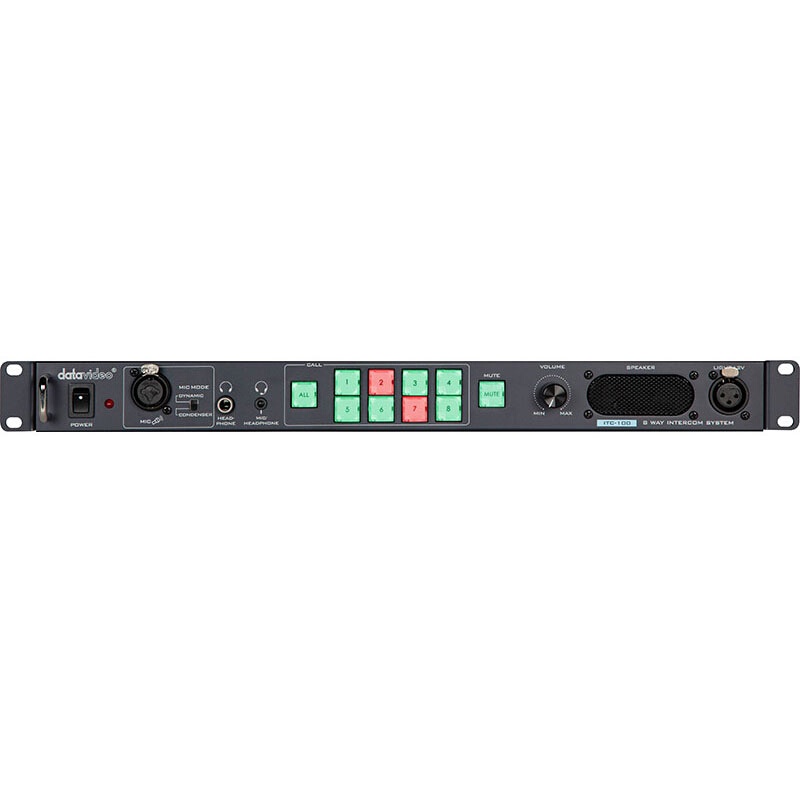

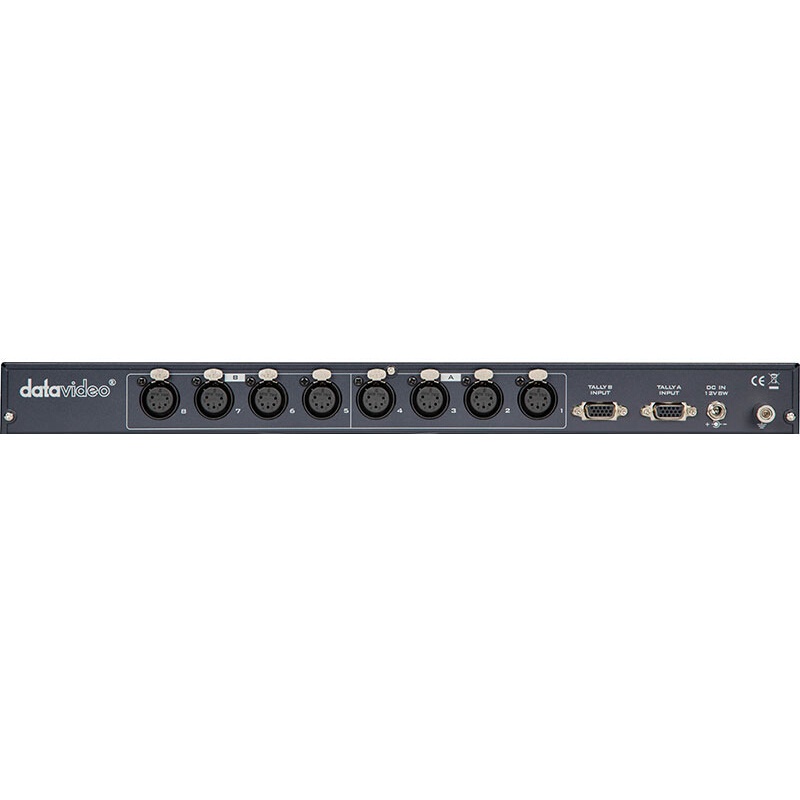

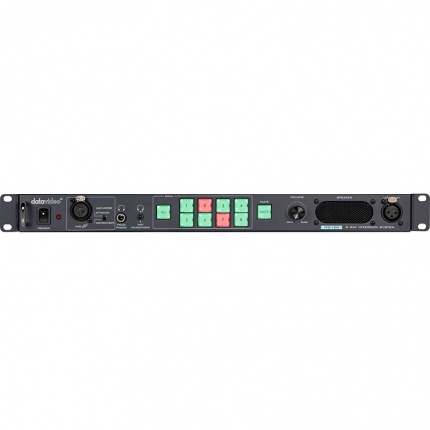

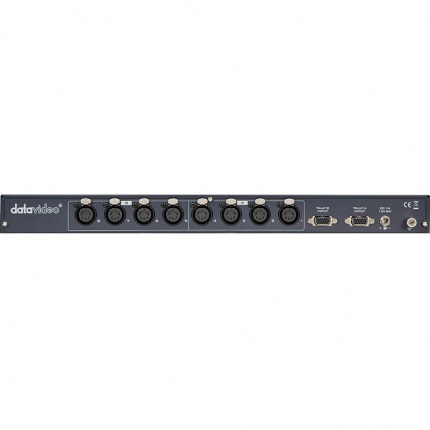

Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.
Features:
Supports up to 8 wired users
Uses your choice of headsets, from low-cost cell phone sets to high-quality professional units
Uses cables up to 984 ft to connect beltpacksIn The Box:

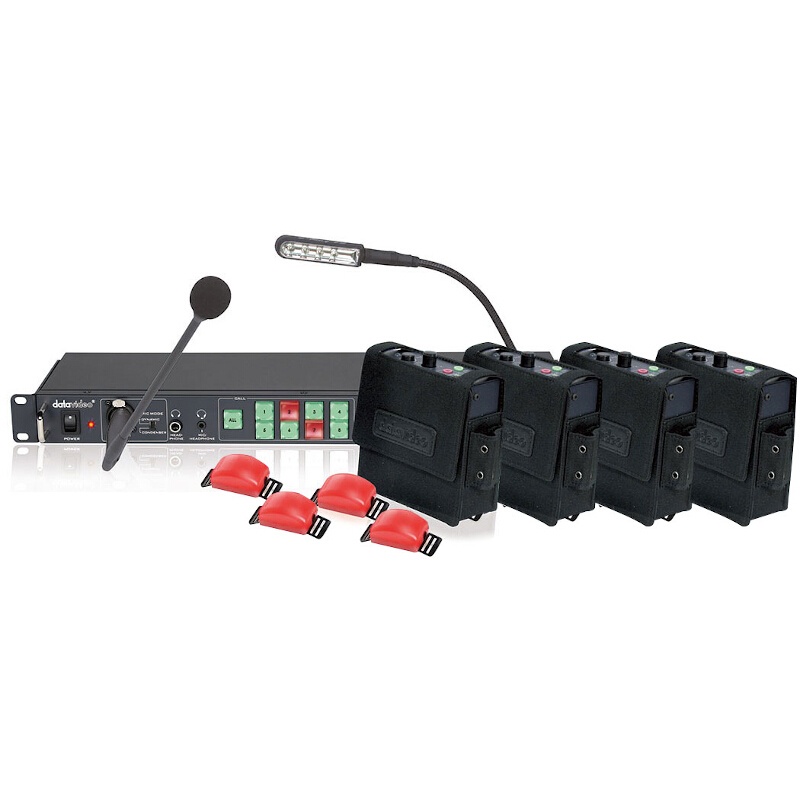

1 x ITC-100 Base Unit
4 x ITC-100SL Belt Pack
4 x ITC-100SL Carry Case
4 x Cable 5piin XLR to XLR
4 x 3.5mm Jack to 3.5mm Jack Cable
4 x Headset with microphone
4 x Tally LED Indicator
1 x XLR Gooseneck Microphone
1 x XLR Gooseneck Light
1 x 12V 1A Power Supply UnitPower
DC 12V, 8WTally
2 x 15 Pin DSub Sockets for Tally A and BMIC / Headset
3.5 mm Stereo Jack Socket for Headphone /Microphone combination
Headset Impedance 8-600 Ohms 100 mW (min)Headphone
¼” (6.3mm) Stereo Headphone Socket
Headset Impedance 8-600 Ohms 100 mW (min)Light Socket (DC 12 V)
3 PIN XLR Connector
PIN 2: 12V
PIN 3: GND
Light Power Consumption: 12 V / 100 mA (MAX.)Microphone
3 PIN XLR / ¼” (6.3mm) Jack Microphone Socket
Switchable Condenser / Dynamic Input
Microphone Level -67 dBFrequency Response
550-3.6 kHz, +/- 3dBTHD
3%S/N
> 50dBBuilt-in Speaker
70mm x 30mm 32 Ohm 3 WattsOperating Range
Up to 200 meters between base station and slaveOperating Temp. Range
0~40 °CDimension (LxWxH)
482 x 127 x 46 mmWeight
1.9 kg
