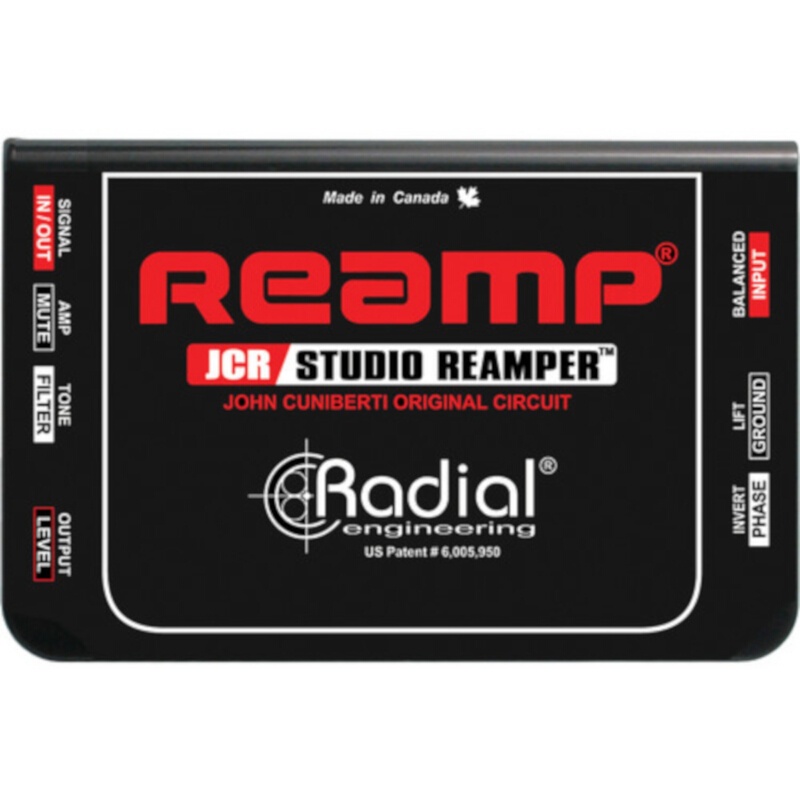

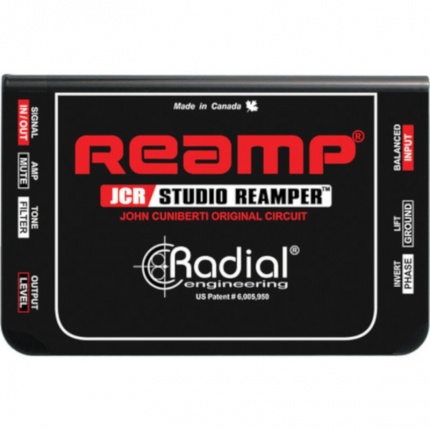

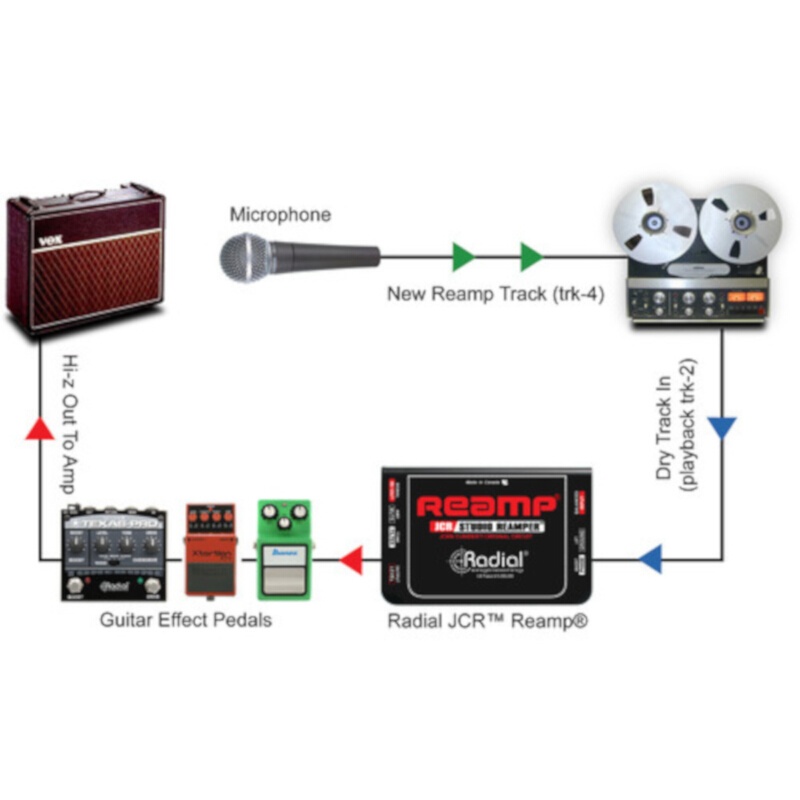

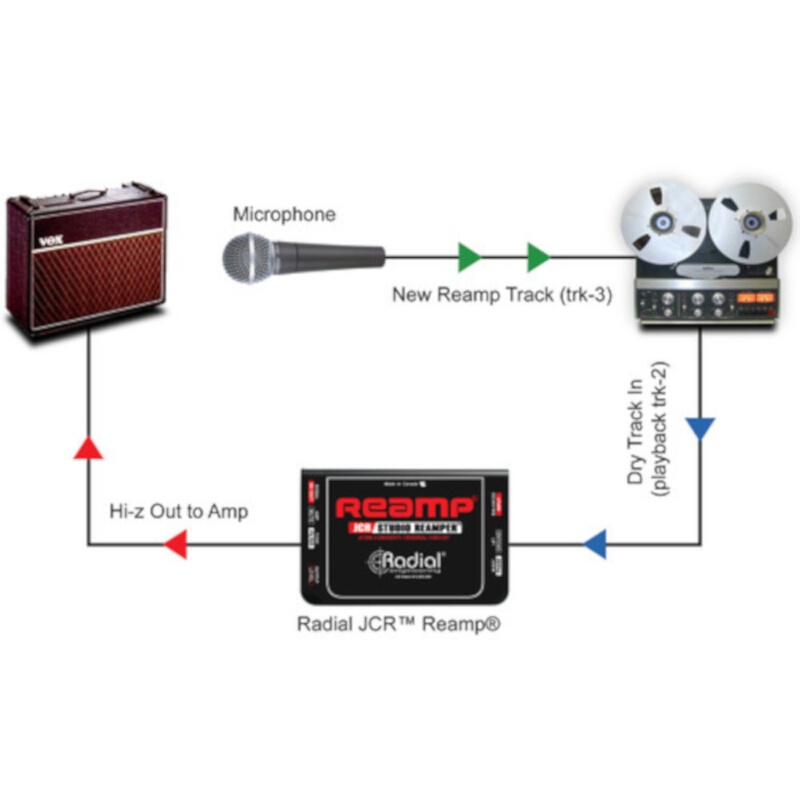

The Radial Engineering Reamp JCR is a passive reamper that allows you to take a prerecorded track and send it back to a guitar or bass amplifier and re-record it. The benefits are tremendous: instead of worrying about the sound of the track, you can focus your attention on getting the best musical performance. Once the performance has been captured, you can reamp the track even in the absence of the guitarist by moving the mics around the room, trying various amplifiers, or introducing effects. Additionally, you can also reamp the track later as the production develops.

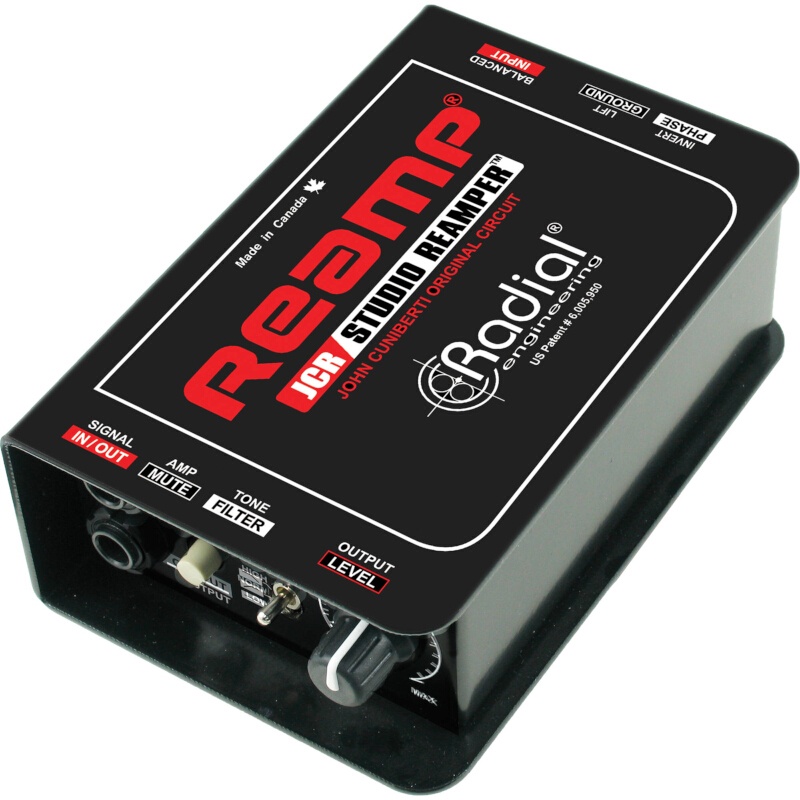

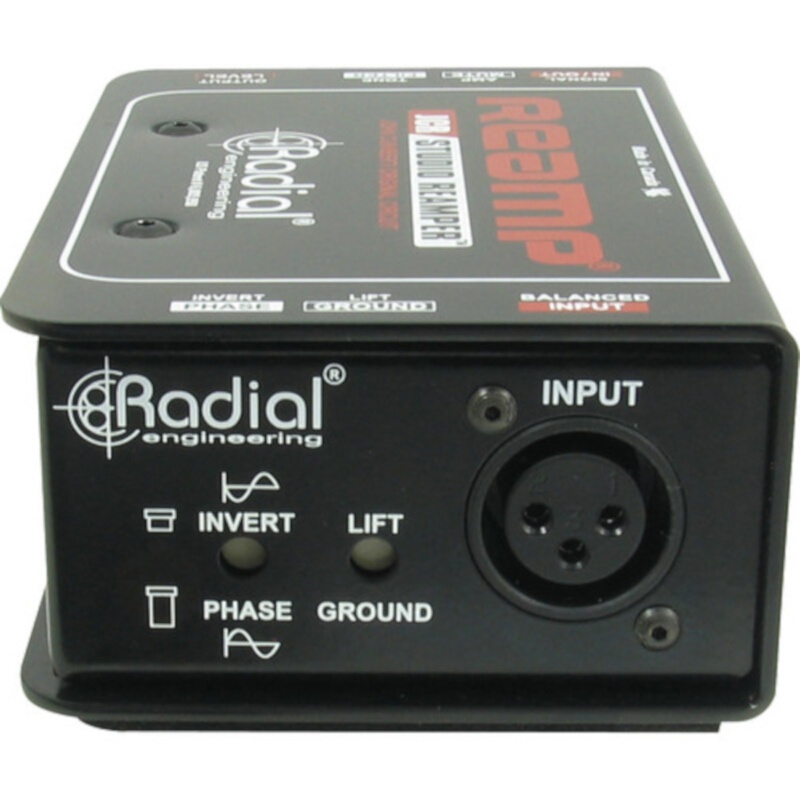

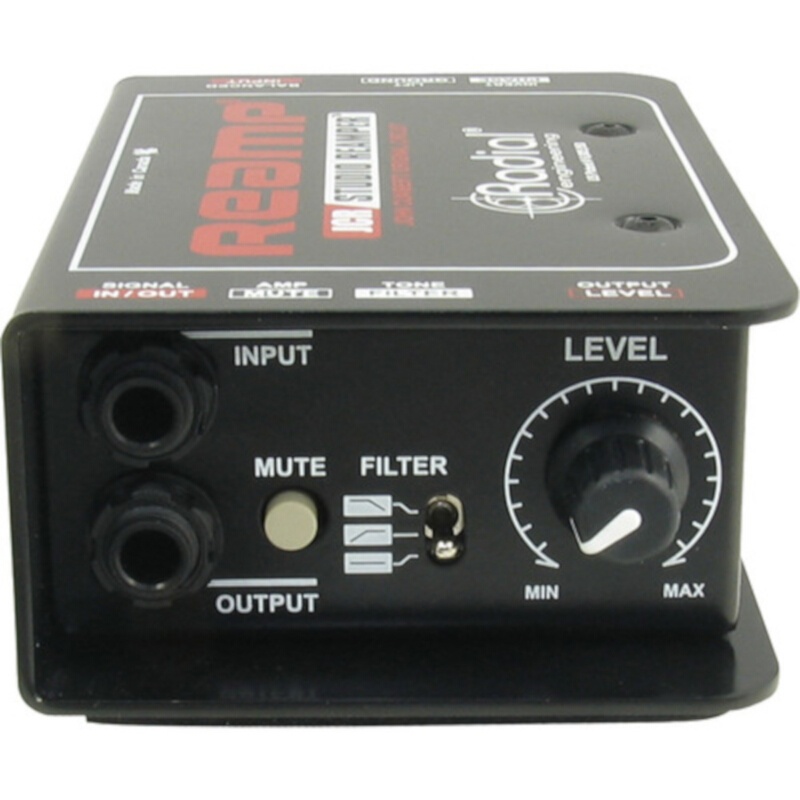

This reamper features the original reamp circuit designed by John Cuniberti. It features a 100% passive design with John's original custom-wound transformer and circuit that are made in the USA. It also features separate XLR and 1/4" TRS input connectors, variable output level, and a 3-position filter that lets you tame excessive highs, warm up the lows, or simply bypass if you want to revert to the original circuit. An on-board mute function has also been added to let you shut off the signal going to the amps while making adjustments or moving mics around the studio.
In the Box
Radial Engineering Reamp JCR Studio ReamperRadial Engineering Reamp JCR Specifications:
Circuit Type Passive, transformer isolated
Frequency Response 20 Hz to 20 kHz (±0.2 dB)
CMRR -55 dB @ 55 Hz
Dynamic Range 140 dB
Noise Floor -115 dBu
Maximum Input Level +21 dBu @ 20 Hz
Output Level Adjustable
Total Harmonic Distortion 0.05% @ 20 Hz, 0.006% @ 1 kHz
Intermodulation Distortion 0.0025% @ 1 kHz/-10 dB input
Deviation from Linear Phase 2º @ 100 Hz; 0º @ 800 Hz
Input Impedance 600 Ω
Output Impedance 5 kΩ
Input XLR, 4 dB balanced line-level, AES standard (pin-2 hot)
Output Instrument-level (variable), unbalanced
Ground Lift Disconnects pin-1 at the XLR input
Mute Mutes the output at the 1/4" unbalanced out
Filter Hi-Cut: -3 dB down @ 1 kHz
Low-Cut: -3 dB down @ 180 Hz
Polarity 180º polarity reverse at 1/4" output
Power Passive, no power required
Construction 14 gauge steel chassis & outer shell, baked enamel finish
Operating Conditions 41 to 104°F (5 to 40°C), for use in dry locations
Dimensions 3.3 x 5.0 x 1.9" (8.4 x 12.7 x 4.9 cm)
Weight 1.75 lb (0.79 kg)
