DM1 Dynamite | Buy sE Electronics direct from Singapore's Official Dealer for warranty assurance.

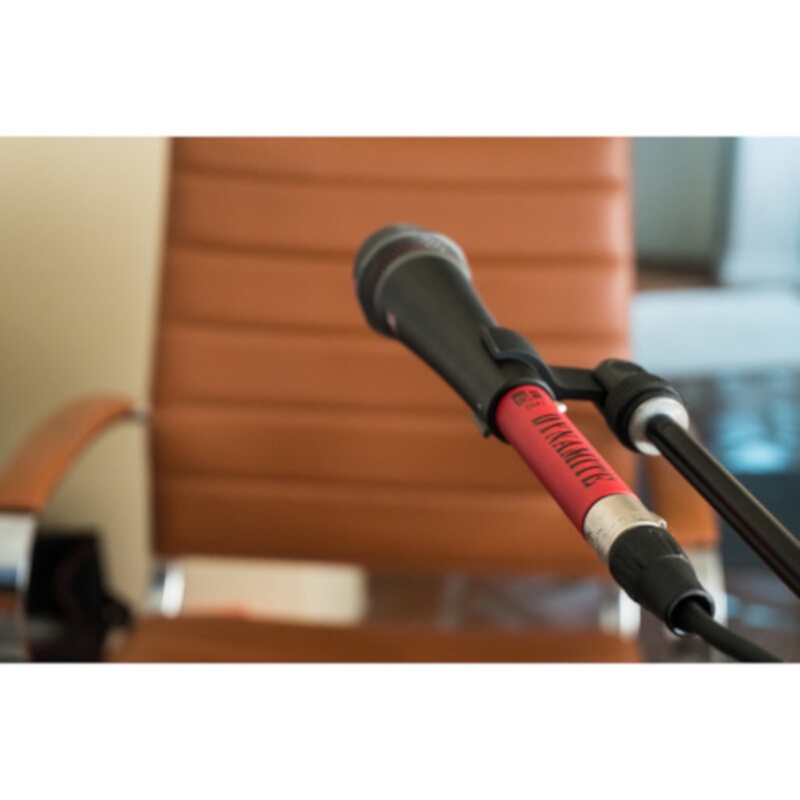

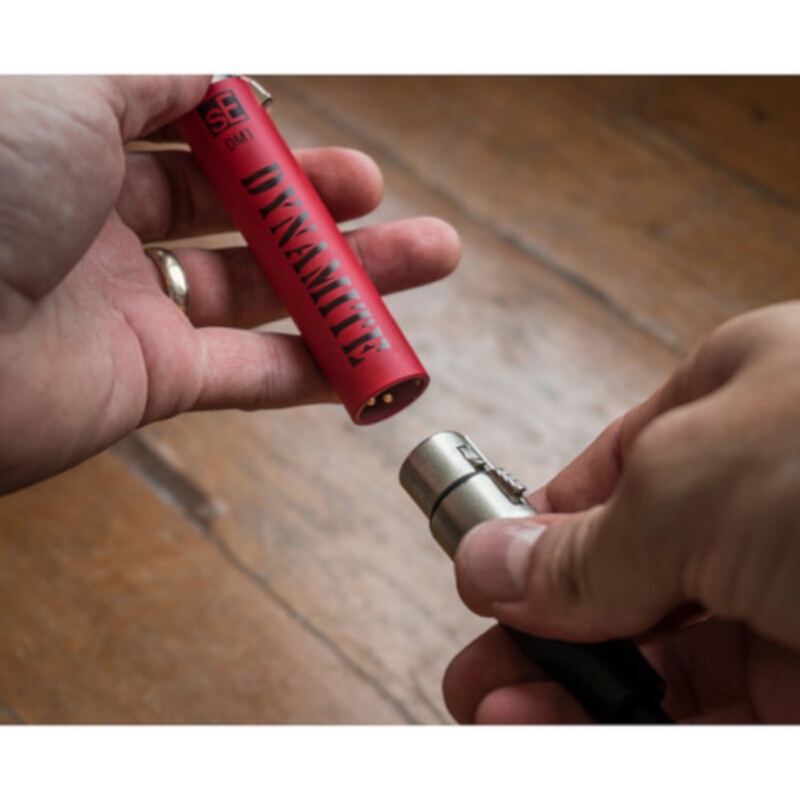

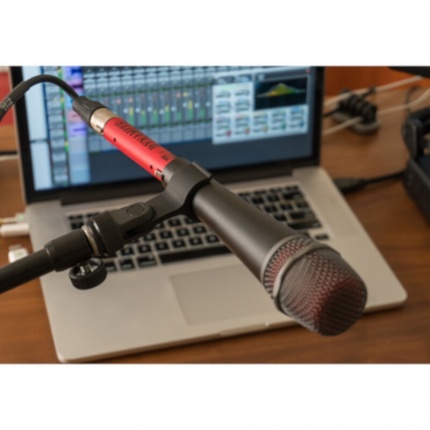

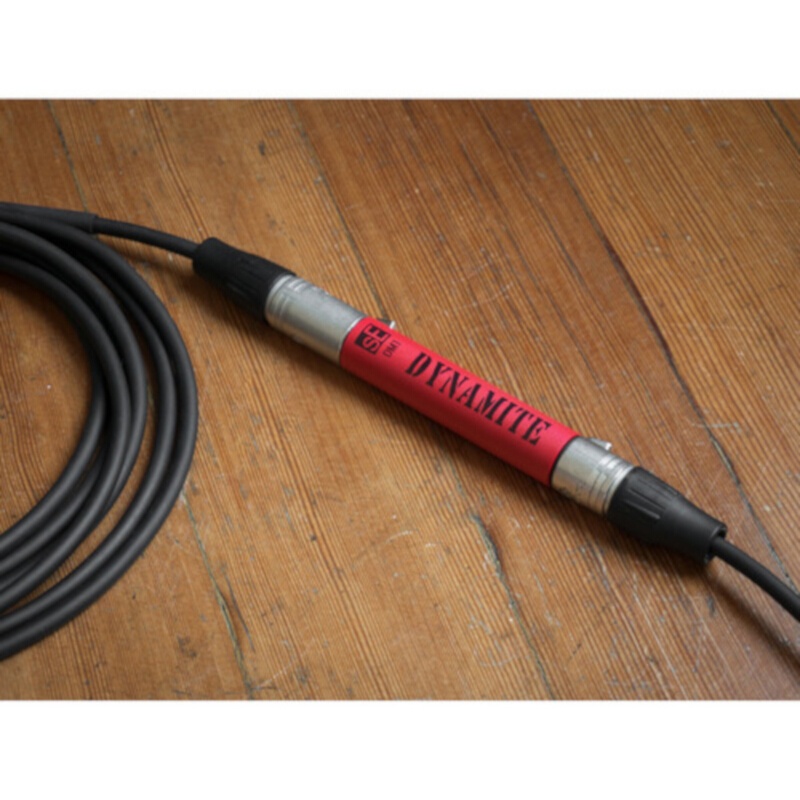

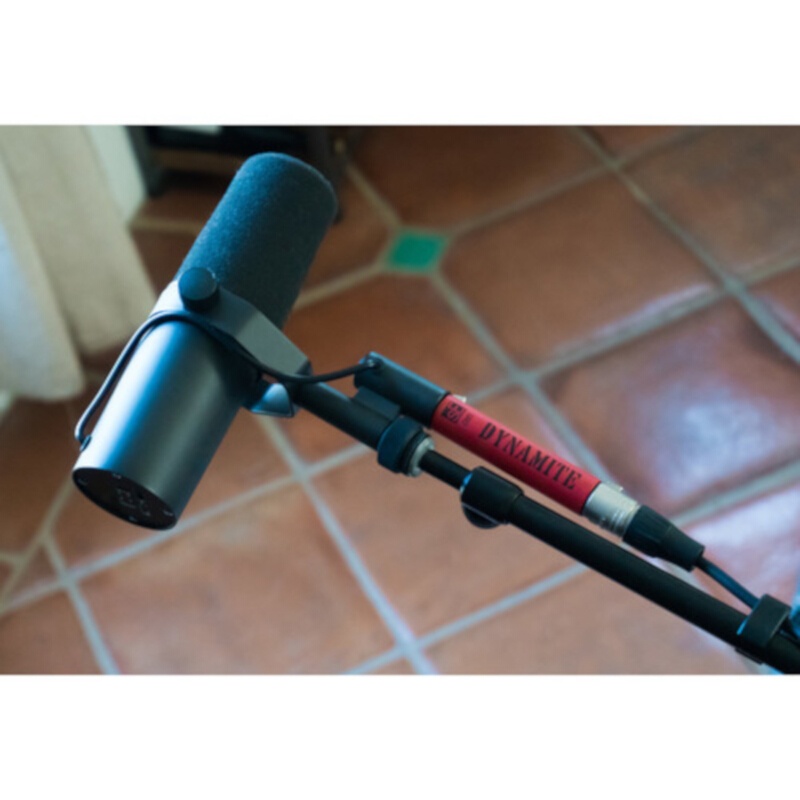

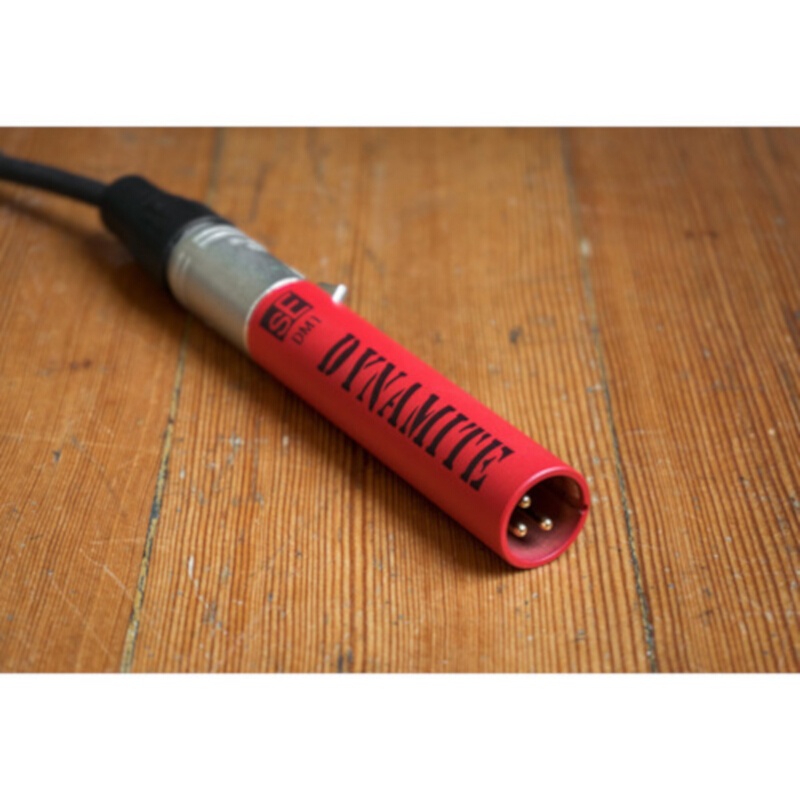

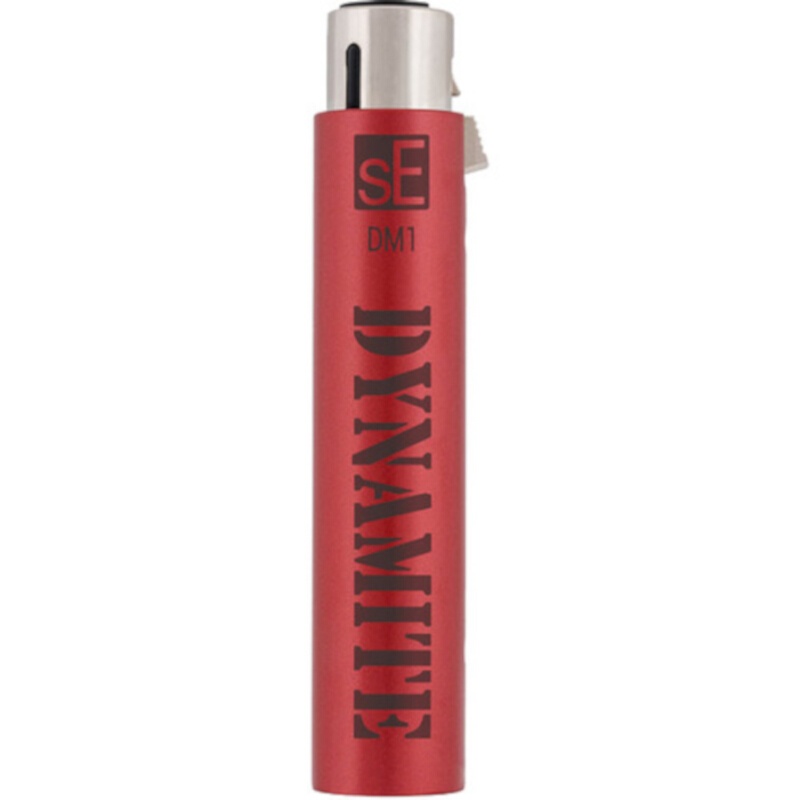

The DM1 Dynamite Active Inline Microphone Preamplifier from sE Electronics is an active inline preamp intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately). It can be used to deliver a robust 28 dB of gain to boost the audio signal of a passive mic, which improves the level to a preamplifier without adding noise or coloration.

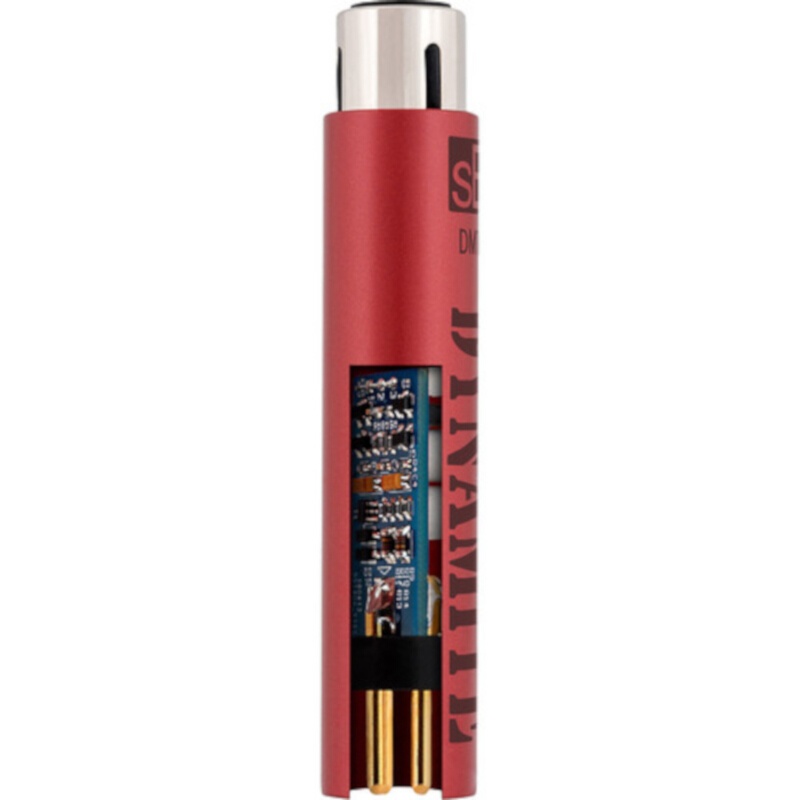

With a sophisticated class-A design and high-grade FETs, the DM1 has a low self-noise. It is built with a dedicated output buffer amplifier allowing it to drive long cable runs and reduce RF interference, buzz, and hum. Additionally, the DM1 Dynamite Active Inline Microphone Preamplifier offers a roadworthy, slim, all-metal design ensuring reliable operation for on-stage applications in difficult environments.
sE Electronics DM1 Dynamite Specifications:
System Requirements Input: Passive microphone (ribbon/dynamic)
Output: Preamp/mixer or audio interface providing 48 V phantom power
Limitations: Not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
Frequency Range 10 Hz to 120 kHz (-0.3 dB)
Gain 28 dB (load 1 kOhm)
Maximum Output Level 8.3 dBV /2.6 V (0.5% THD)
Output Noise Level: 9 μV (JIS-A)
Powering 48 V according to IEC 61938
Impedance 135 Ohms
Load Impedance >1 kOhm
Current Consumption 3.0 mA
Connector 3-pin male/female XLR
Dimensions (Ø x L) 0.75 x 3.76" / 1.91 x 9.55 cm
Weight 2.8 oz / 79.9 g
