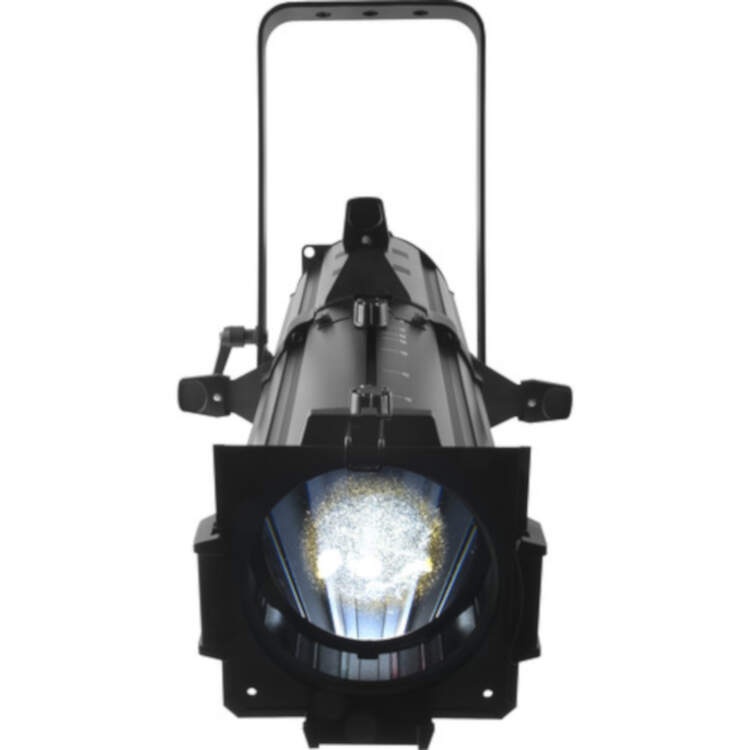

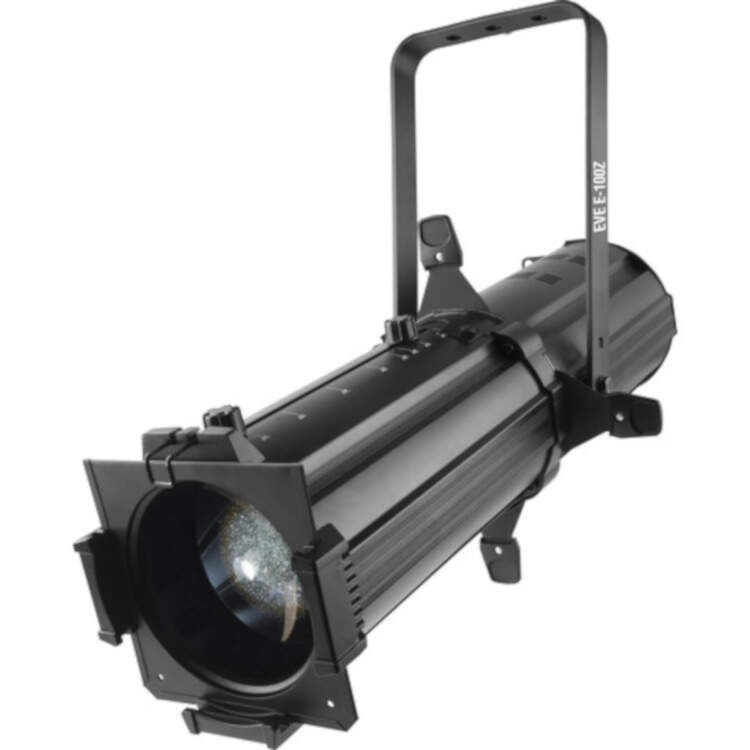

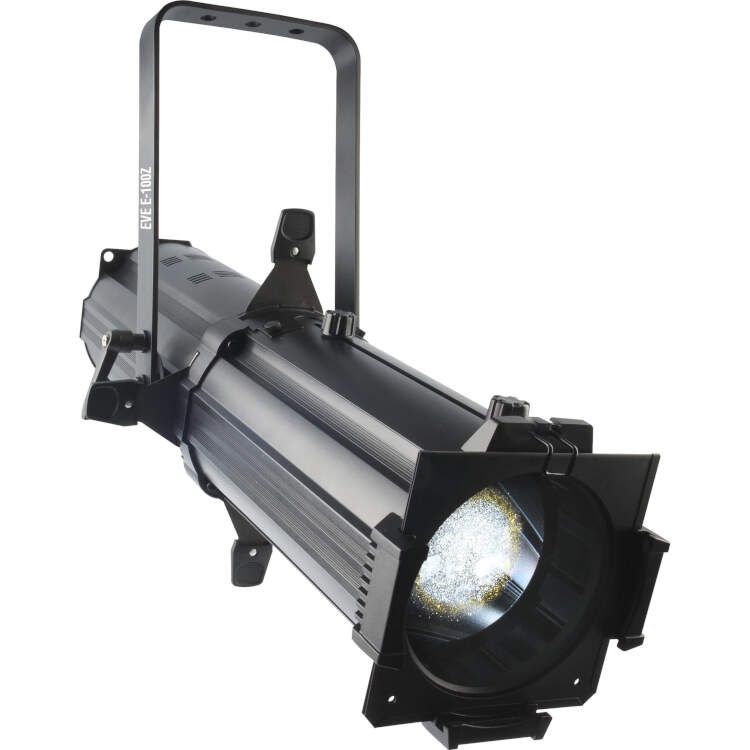

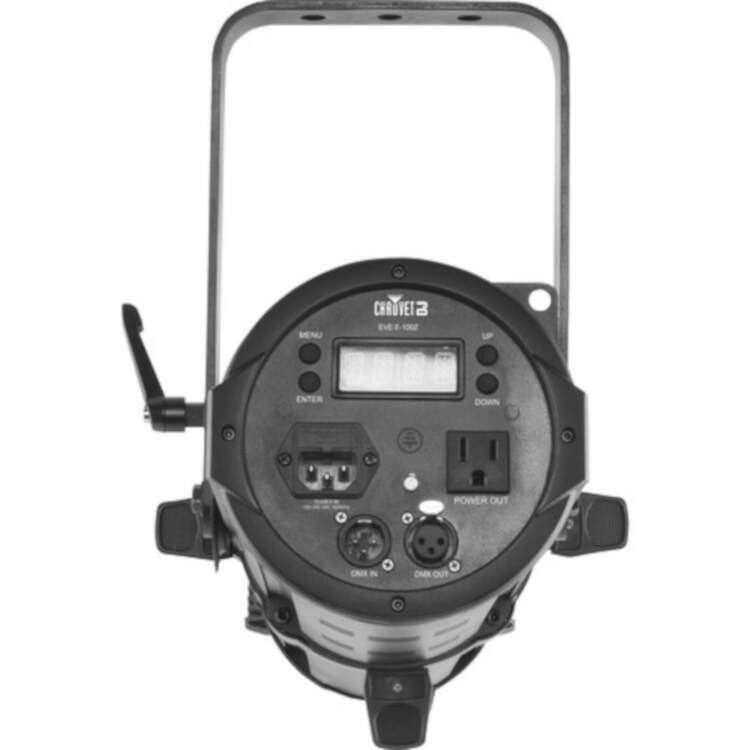

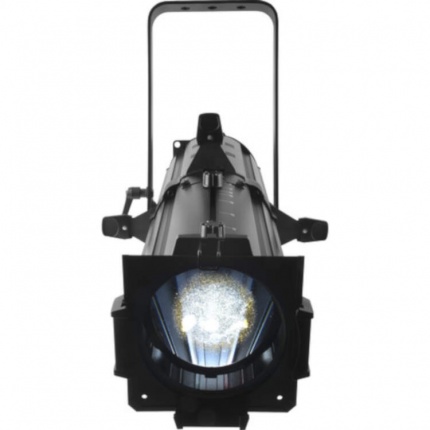

The EVE E-100Z is an ellipsoidal LED spot fixture with a built-in dimmer and DMX control. It is primarily designed for use in a theatrical lighting grid, but it can also be used in film and video productions. Dimming the fixture is controllable locally or via DMX choosing dimming with either 1 or 3 channels of control. Manual zoom and focus adjustment lets you tune your light's coverage, which can be further refined with the included framing shutters. A built-in LED info screen aids you in navigating the menu system.
The EVE E-100Z incorporates an internal gobo slot that accepts glass or metal gobos. This enables you to project a shape or image, and the zoom and focus knobs allow you to control the size and focus of the image. The included gel frame enables placing a gel or diffusion in front of the ellipsoidal. The neutral yoke features three pre-drilled holes that you can use to mount your choice of clamps or stand adapters. The integrated safety loop provides a secure point for a safety cable when hanging the fixture from a grid.
Light Source 1 x 100 W LED (warm white)
Life Expectancy 50,000 hours
Illuminance 14°: 15,100 lux @ 6.6' / 2.0 m
30°: 3,800 lux @ 6.6' / 2.0 m
Gobos Gobo Size M
Outside Dimensions: 2.6" / 66 mm
Image Area: 1.9" / 47 mm
Thickness: 0.08" / 2 mm (max)
Zoom Angle 14 to 30° (manual)
Focus Manual
Strobe Rate 0 to 30 Hz
Dimming Local and DMX dimming
DMX Connectors Input: 1 x 3-pin XLR
Output: 1 x 3-pin XLR
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Connectors Input: IEC
Output: Edison
Power Linking 120 V: 9 units
230 V: 16 units
Power Consumption 120 V (60 Hz): 106 W, 0.9 A
230 V (50 Hz): 103 W, 0.5 A
Approvals CE, MET
Dimensions 24 x 7.2 x 16.9" / 611 x 183 x 430 mm
Weight 12.6 lb / 5.7 kg
