PreSonus Studio 24c 2x2 USB Type-C Audio/MIDI Interface | Buy PreSonus direct from Singapore's Authorized Dealer for warranty assurance.

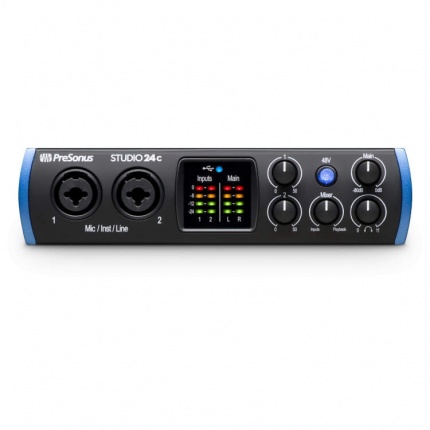

The PreSonus Studio 24c is a 2x2 USB Type-C audio/MIDI interface offering high-resolution conversion and a powerful software package for vocalists, musicians, and podcasters in home or project studios and in mobile setups. Connect mic-, instrument-, or line-level sources via two XLR-1/4" combo inputs, each utilizing its own gain control and XMAX-L solid-state mic preamp with selectable phantom power. Operate at up to 24-bit / 192 kHz resolution without sacrificing channel count or interface functionality.

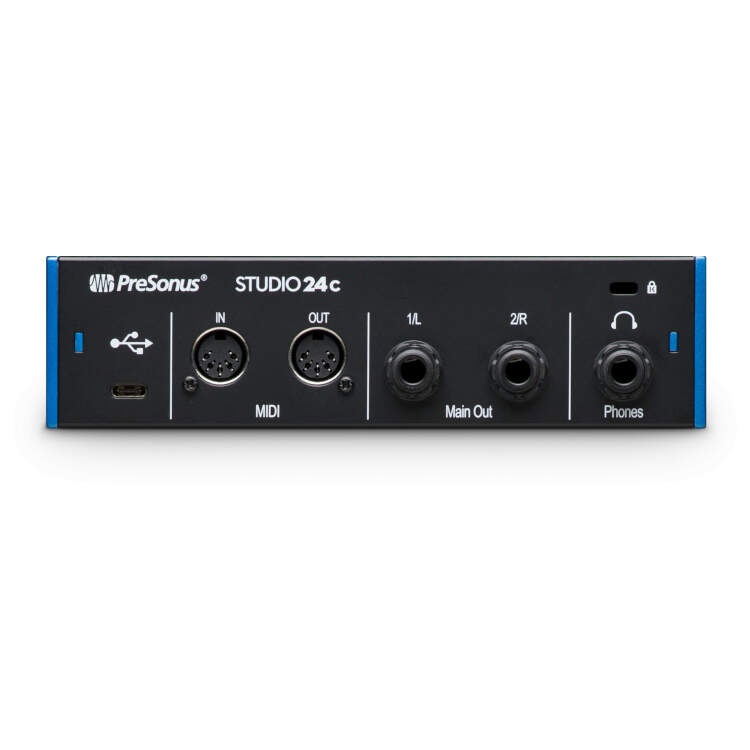

Dedicated controls for headphone and main output levels feed the 1/4" outputs, which easily accommodate a set of headphones and a pair of active monitors. 5-pin MIDI I/O jacks on the rear panel allow simple hookup of a MIDI controller, synthesizer, or sound module.
The bus-powered Studio 24c includes USB cables for easy connectivity to your compatible macOS- or Windows-equipped computer. Also supplied is a software bundle featuring the Studio One Artist DAW and the Studio Magic plug-in suite—a slew of creative tools for producers, engineers, songwriters, and more.
Compact and portable audio/MIDI interface ideal for vocalists, musicians, and podcasters
Conveniently powered via USB connection to a macOS or Windows computer
AD/DA conversion at up to 24-bit / 192 kHz resolution
Two XLR-1/4" combo inputs support mic-, instrument-, or line-level sources
XMAX-L solid-state mic preamps with selectable 48 VDC phantom power
Dedicated controls for input gain, main output level, and headphone volume
Two balanced 1/4" main outputs and one 1/4" stereo headphone output
Mixer knob allows blending analog input and computer playback for low-latency direct monitoring
Multi-segment LED meters display levels for inputs and main outputs
Includes Studio One Artist DAW software
Includes Studio Magic plug-in suite with seven plug-ins ranging from EQ to virtual instrumentsIn the Box
PreSonus Studio 24c 2x2 USB Type-C Audio/MIDI Interface
USB Type-C Cable
USB Type-A to USB Type-C CablePreSonus Studio 24c Specifications:
Interface
Channels of I/O Analog:
2 Inputs / 2 Outputs at 192 kHz
Max Sample Rate/Resolution 192 kHz / 24-Bit
Display and Indicators 1 x LED (Host Connection)
1 x LED (+48V)
2 x Multi-Segment LED Meters (Input Level)
2 x Multi-Segment LED Meters (Output Level)
Connectivity
Host Connection 1 x USB Type-C (USB 2.0)
Analog I/O 2 x Combo XLR / 1/4" Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4" (6.3 mm) TRS Balanced Monitor Output
1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output
Phantom Power +48 V (Applied to All Inputs)
Digital I/O None
MIDI I/O 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out
Memory Card Slot None
Performance
Frequency Response Mic Inputs:
20 Hz to 20 kHz ±0.3 dB (Unity Gain)
Hi-Z Inputs:
20 Hz to 20 kHz ±0.1 dB (Unity Gain)
Monitor Outputs:
20 Hz to 20 kHz ±0.3 dB (Unity Gain)
Headphone Outputs:
20 Hz to 20 kHz ±0.5 dB (Unity Gain)
Gain Range Inputs:
50 dB
Max Input Level Mic Inputs:
+10 dBu (Min Gain)
Hi-Z Inputs:
+19 dBu (Min Gain)
Max Output Level Monitor Outputs:
+10 dBu (Balanced)
Headphone Output Power 47 mW per Channel into 56 Ohms (Max)
Dynamic Range AD/DA Converters:
108 dB
Mic Inputs:
106 dBA
Hi-Z Inputs:
105 dBA
Monitor Outputs:
104 dB
Headphone Out:
83 dBA
Impedance Mic Inputs:
1.4 kOhms
Hi-Z Inputs:
750 kOhms
Headphone Outputs:
32 to 300 Ohms
THD+N Mic Inputs:
0.004%
Hi-Z Inputs:
0.002%
Monitor Outputs:
0.001%
Headphone Outputs:
0.01%
EIN Mic Inputs:
-126 dBu (A-Weighted)
Digital Audio
Sample Rates Up to 192 kHz (AD/DA Conversion)
Bit Depth Up to 24-Bit (AD/DA Conversion)
Sync Sources Internal
Compatibility
OS Compatibility macOS 10.8.5 or Later
Windows 7 or Later
Processor Requirement Mac:
2 GHz Intel
2 GHz AMD
PC:
2 GHz Intel
2 GHz Intel
RAM Requirements 4 GB (8 GB Recommended)
Storage Requirements 32 GB
Minimum Display Resolution 1366 x 768
Required Hardware USB Cable (Included)
Available USB Port
Power
Power Requirements USB Bus-Power
Phantom Power Current 10 mA
Physical
Anti-Theft Features Kensington Security Slot
Dimensions 7.09 x 5.67 x 1.73" / 180 x 144 x 44 mm
Weight 2.0 lb / 0.9 kg
