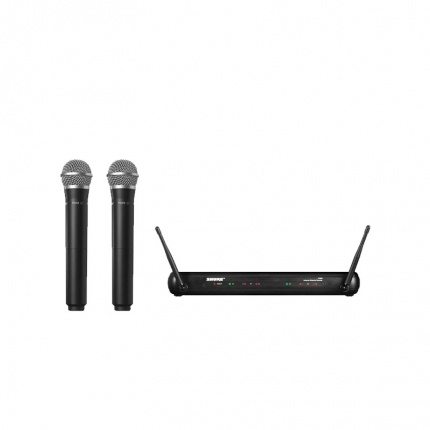

Shure SVX288/PG58 Dual Handheld Wireless System
DESCRIPTION
Includes SVX88 Dual Diversity Receiver, and (2) PG58 Handheld Microphone Transmitters.
FEATURES
PG58 Handheld Microphone Transmitters
RF Level Switch between 1mW and 10mW
2 “AA” batteries
Up to 10 hours of battery life
Bottom on/off switch design
Anti-rolling ring on grille for PG28
Power and battery status LED
6 color rings for microphone identification
Transmitter Type: Handheld
Dimensions: 254 mm X 51 mm diameter
RF Output Power: 1
Battery, endurance: 10 h
Weight: 270 g
Audio Input Level: –20 dBV maximum
Input Impedance: 22 kΩRF Output (dependent on applicable country regulations):
HI power mode: 10 mW maximum
LO power mode: 1 mW maximum
SVX 88 Receiver
Up to 8 selectable channels
Up to 4 compatible systems
Antenna Switching Diversity
Adjustable Squelch Level
1/4" and XLR output
Available with Handheld and Lavalier system packages
SVX288/PG58 Specifications:
Set Type: Dual Vocal
Amount of Handhelds: 2
SVX88 Specifications
Weight: 245 g
Height x Width x Depth: 32.0 × 168.0 × 104.5 mm
Transmission: Analog
Bias via BNC: No
High Density Mode: No
Interference Detection: No
Remote Control: No
Number of compatible systems per frequency band: Up to 4
DANTE-Enabled Products: No
Detachable Antennas: No
Network ability: No
Software control : No
Logic: No
Cascade: No
Receiver type: Dual
Line Mic Switch: No
Image Rejection: 50 dB, typical
RF Sensitivity: -105 dBm, for 12dB SINAD, typical
Phantom Power Protection: No
SVX2/PG58 Specifications:Weight: 270 g
Battery life alkaline: 10 h
Form Factor: Handheld
Transmitter housings: Molded ABS
Audio Mute: No
Detachable Antennas: No
Switchable RF power: No
Frequency Diversity: No
Functionality: Transmitter
High Density Mode: No
Transmission: Analogfrequency range
G15 (505–518 MHz)
H14 (541–553 MHz)
J9 (558–570 MHz)
