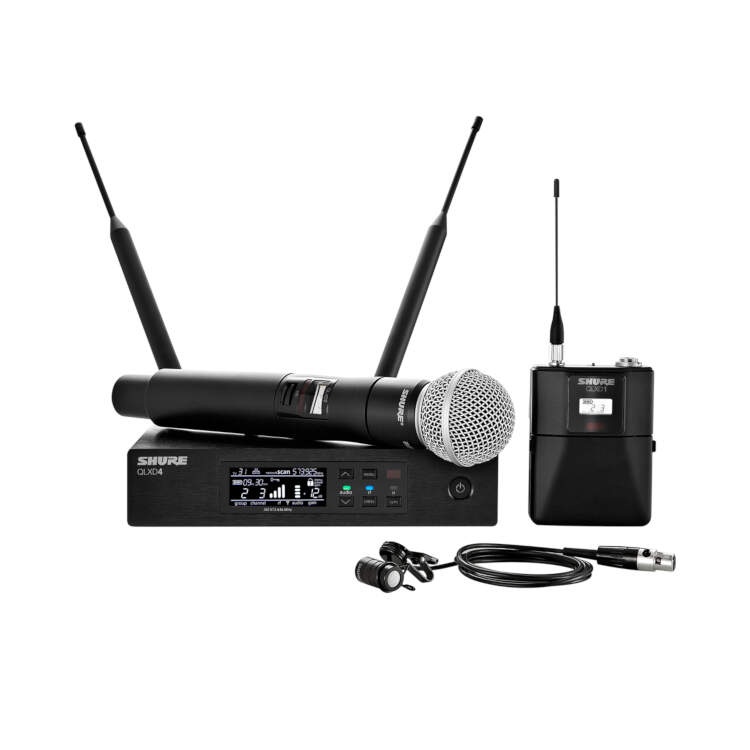

Shure QLXD124/85 Handheld and Lavalier Combo Digital Wireless Microphone System

Shure QLXD124/85 Handheld and Lavalier Combo Digital Wireless Microphone System

Featuring an SM58® handheld wireless microphone transmitter and WL185 lavalier microphone, QLXD124/85 combines professional features with simplified setup and operation.

System Includes:
• Includes QLXD2/SM58, WL185, QLXD1, QLXD4, microphone clip, 2 zipper bags, 4 AA batteries, power supply, two 1/2 wave antennas, 2 BNC cables, 2 BNC bulkhead adapters, rackmount kit, and user guide

PRODUCT DETAILS
QLX-D® delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

Note: Bodypack and handheld transmitters cannot be used simultaneously.

DESCRIPTION
Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 is a half-rack digital wireless receiver for use with QLX-D™ Digital Wireless Systems. Ideal for presentation spaces, music venues, and houses of worship, the QLXD4 combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies and one-touch sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac.

Features

QLX-D2 Handheld Transmitter

20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
Interchangeable Shure microphone capsules, including the legendary SM58®
AES 256-bit encryption for secure transmission
Over 120 dB of dynamic range – no transmitter gain adjustment needed
1, 10 mW selectable RF output power
Up to 9 hours continuous use with 2 x AA alkaline batteries
Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing channel, frequency, or battery runtime
100 meter (330 ft.) line-of-sight operating range
Rugged metal construction
Frequency and power lockout

QLX-D1 Bodypack Transmitter

20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
Over 120 dB of dynamic range - no transmitter gain adjustments needed
AES 256-bit encryption for secure transmission
Up to 9 hours continuous use with 2 x AA alkaline batteries
Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing group/channel, frequency, or battery runtime
100 meter (300 feet) line-of-sight operating range
4-Pin male mini connector (TA4M)
Rugged metal construction
Detachable ¼ wave antenna
Frequency and power lockout

QLX-D4 Receiver

64 MHz tuning bandwidth (region dependent)
More than 60 preset compatible channels per frequency band (region dependent)
Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
Digital predictive switching diversity ensures solid RF connection
Automatic channel scan quickly finds the cleanest frequency
IR sync deploys selected frequency to transmitter
Ethernet networking provides streamlined setup across multiple receivers
Networked channel scan configures open frequencies for all connected receivers
AES 256-bit encryption for secure wireless transmission
Up to 60 dB of adjustable audio gain
High-contrast LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
Detachable ½ wave antennas
Mic / line switchable XLR output
¼” instrument output
Durable aluminum construction with brushed finish
Professional-grade rack hardware included
Compatible with Shure Wireless Workbench® 6 control software
Remote monitoring and control from iOS devices via ShurePlus™ Channels app
