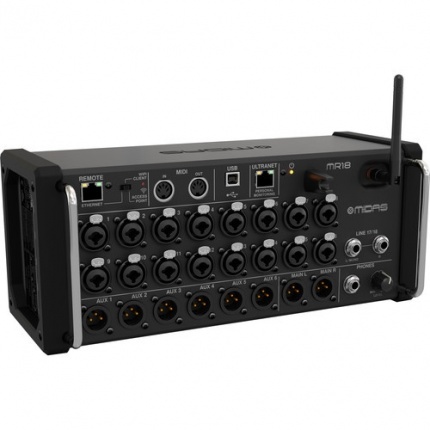

The MR18 from Midas is an 18-input, portable, rackmountable mixer for iPad and Android tablets. It can be used for both live and studio environments in applications for live stage, theater, houses of worship, rehearsals, and more. It features sixteen Midas mic preamps and an integrated Wi-Fi module for wireless control, giving you the ability to move around and manipulate all parameters of your mix. Furthermore, it has USB connectivity for file storage and future system updates. The built-in 18 x 18 channel, bidirectional USB interface makes the MR18 a powerful digital mixing solution for recording directly to your iPad or Windows computer. You can then dial-in a monitoring mix with effects and zero latency while sending your stereo mix and the keyboard player's MIDI notes to your DAW for recording.
The MR18 has additional features including the MIDI in/out jack for controlling the mixer via MIDI equipment, using Mackie control protocol via a live-performance controller. This mixer also comes with several Midas effects, such as a Leisure compressor and leveling amplifier, mid/sides Fair compressor, a 5-band Combinator compressor, modulation delay, Sub Octaver, and an Edison EX1 that enables simple manipulation of the stereo field. Finally, the MR18 includes Sound Maxer and a dimensional chorus effect, which can help you to restore natural sheen and clarity to the original audio signal. Whether you're recording in the studio, or you want to capture intimate live performances, it's never been easier to record professional-sounding tracks with clarity.
- iPad / Android tablet-controlled, 18-input digital mixer for studio and live applications
- 16 high-quality MIDAS PRO microphone preamplifiers
- Built-in, tri-mode Wi-Fi router for direct operation—no need for external routers
- Dugan-style auto-mixing automatically manages microphone gain-sharing
- 18 x 18 channel, bidirectional USB 2.0 interface
- 4 digital signal-processing effects engines
- Rack ears and protection bumpers included for flexible rack and onstage applications
- 6 aux buses and main LR with inserts, full dynamics processing, and 6-band parametric or 31-band graphic EQ
- 6 XLR aux outputs and 2 XLR main outputs, plus a headphone connector
- 40-bit, floating-point digital signal processing
- Free iOS, Android, and Windows/Mac/Linux apps available for remote operation via Ethernet, LAN, or Wi-Fi
- MIDI in/out ports allow for controlling the mixer via MIDI equipment
- Future firmware updates, including new FX “plug-ins," downloadable free of charge
- Auto-ranging, universal-switch-mode power supply
Processing Channels Number of Processing Channels: 18 input channels
Stereo FX Return Channels: 4
Aux Buses: 6Main: 2 (L,R)
Effects Engine Internal Effects Engines: 4 true stereo Signal Processing 40-bit floating point AD/DA Conversion 24-bit @ 44.1 / 48 kHz, 115 dB dynamic range Latency Analog I/O Latency: 0.8 ms Connectors Mic Inputs Programmable Mic Preamps (Designed by Midas Pro): 16 XLR/TRS combo jacks, balanced Line Inputs 2 x 1/4" / 6.35 mm TRS, balanced Main Outputs 2 x XLR, balanced AUX Outputs 6 x 1/4" / 6.35 mm TRS, balanced Headphone Out 1 x 1/4" / 6.35 mm TRS, balanced MIDI In: 5-pin DIN
Out: 5-pin DIN
Ethernet 1 x RJ45 USB Port Type-B (Audio/MIDI Interface) Input/Output Characteristics Microphone Characteristics Preamp Design: Midas Pro
THD + Noise: 0.005%, unweighted (noise, unity gain, 0 dBu, 1 kHz)
Phantom Power: 48 V (switchable per input)
EIN Noise: -125 dBu, 22 Hz - 22 kHz unweighted (at +60 dB gain, 150R source)
CMRR, XLR (1 kHz @ Unity Gain): Typically 65 dB
CMRR, XLR, (1 kHz @ +60 dB Gain): Typically 90 dB
Input / Output Frequency Range: 20 Hz - 20 kHz (at 48 kHz sample rate, +/- 0.5 dB)
Dynamic Range: 107 dB, 22 Hz - 22 kHz unweighted (analog in to analog out)
A/D Dynamic Range: 110 dB, 22 Hz - 22 kHz unweighted (preamp to converter)
D/A Dynamic Range: 111 dB, 22 Hz - 22 kHz unweighted (converter and output)Cross Talk Rejection: 90 dB (at 1 kHz, adjacent channels)
Mic/Line 1-16 Input Impedance 10 kOhm (XLR jack, unbalance / balanced)
Non Clip Maximum Input Level: +23.5 dBu (XLR)Hi-Z Input Impedance: 1 MOhm / 2 MOhm (TRS jack, unbalance / balanced)
Line Input 5-10 impedance: 20 kOhm / 40 kOhm (TRS jack, unbalance / balanced)
Non Clip Maximum Input Level: TRS +21 dBu
Analog Output Characteristics Output Impedance (XLR/TRS): 50 Ohms
Maximum Output Level (XLR/TRS): +21 dBu
Phones Output Impedance: 50 Ohms
Maximum Phones Output Level: +21 dBu
Noise at Unity Gain: -86 dBu, 22 Hz - 22 kHz unweighted (1 input assigned, XLR and TRS)
Noise when Muted (XLR and TRS): -90 dBu, 22 Hz - 22 kHz unweighted
